Allied Comfort Sync Homeowner's Manual

Allied Comfort Sync Homeowner's Manual

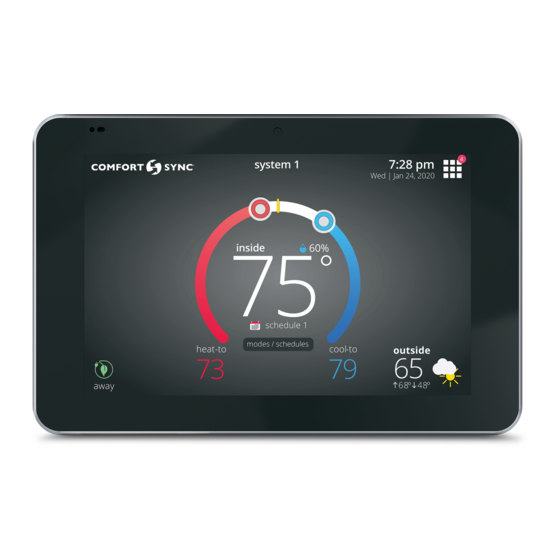

Touch-screen programmable communicating thermostat

Advertisement

© 2016
ALLIED AIR ENTERPRISES
215 METROPOLITAN DR.
WEST COLUMBIA, SC 29170
indoor temperature
set temp
indoor humidity is 41%
system is cooling
Wi-Fi
9:39 am May 23, 2013
THIS MANUAL MUST BE LEFT WITH THE HOMEOWNER
FOR FUTURE REFERENCE
NOTICE
Use this thermostat only as described in this manual.
outdoor
temperature
80
75
spring ...
program
is on
cool-to
72
fan is
AUTO
fan is
forecast
heat to
OFF
Hi 85
Lo 60
?
HOMEOWNER'S MANUAL
Comfort Sync™ Thermostat
Touch-Screen Programmable Communicating Thermostat
CONTROLS
507176-01
6/2016
enter
away
Supersedes 10/2014
General
Congratulations on choosing the Comfort Sync™ touch-screen,
programmable thermostat! The state-of-the-art technology built into this
device makes it easy for you to adjust your home's comfort settings while at
home or from a remote location (via Internet access)!
Help screens are just a touch away. Use this manual as an introduction to a
whole new world of home comfort.
Do not switch system to cool if the outdoor temperature is below 45°F
(7°C). This can damage the cooling system.
WARNING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Comfort Sync and is the answer not in the manual?

Questions and answers

Summary of Contents for Allied Comfort Sync

  • Page 1 Hi 85 indoor humidity is 41% Lo 60 Congratulations on choosing the Comfort Sync™ touch-screen, programmable thermostat! The state-of-the-art technology built into this system is cooling device makes it easy for you to adjust your home's comfort settings while at...
  • Page 2: Table Of Contents

    The Comfort Sync™ thermostat can connect to the Internet using your Table of Contents home's Wi-Fi access point. After online registration has been completed, thermostat ....... .
  • Page 3: Start-Up

    After the thermostat and the is turned on) system have been fully connected system outdoor and powered on, the Comfort Sync Away Mode From this screen you may: heat-to setting cool-to setting temperature...
  • Page 4: User Preferences Quick Reference Chart

    User Preference Quick Reference Chart (Use tools shown on page 5 to make changes) User Setting Feature Button Default Page Tools Available Settings Set up a program edit programs save energy See details page 6 — Humidification settings system settings toggle OFF, ON (only visible if humidifier is installed) Dehumidification settings...
  • Page 5: Tools Used To Change Preferences

    January 2012 09 : 39 am º set to time daylight format saving 12 HR enabled up/down arrows toggle tool save time and date tool Figure 2. User Preference Change Tools Comfort Sync™ 7-Day Programmable Communicating Thermostat Page 5...
  • Page 6: User Feature Screen And Help

    In the example in Figure 4, the evening time has been disabled by touching User Features and Help (?) Screens and holding the time button for that time period. (Touch add setting to From the Home screen, touch the button to go to the Features screen. re-enable that time period.) Use the restore button to restore defaults for the The Features screen (figure 3) allows you access to edit programs, system preset programs.
  • Page 7: System Settings

    9:39 am May 23, 2013 current humidity. Touch the “X” button to return to FEATURES screen or touch the Home icon to return to the Home screen. Figure 7. SYSTEM SETTINGS Screen - Making Adjustments Comfort Sync™ 7-Day Programmable Communicating Thermostat Page 7...
  • Page 8: Display Settings

    DISPLAY SETTINGS DISPLAY SETTINGS Touch display settings from the FEATURES screen (see figure 3). Figure 8 shows the DISPLAY SETTINGS screen and defaults. • Touch Temp scale button to toggle between ºF and ºC options. cobalt • Touch Background theme, screen saver, screen lockout, back- unlocked temp...
  • Page 9: Alerts

    11. service info: alerts ( 1) of ( 1) 9:39 am May 23, 2013 Service Alert Code 3000 system reports: clear Replace Filter 1 remind later Figure 11. Typical Service Alert Comfort Sync™ 7-Day Programmable Communicating Thermostat Page 9...
  • Page 10 Navigate to different screens (see figure 13). You can clear alerts and set new reminders after routine service. You may also select remind later to be reminded at a time that is more convenient for performing the service. If a red alert (red ) is present, contact the party identified under service info.
  • Page 11: Reminders

    24 months custom Reminder PureAir Mainte­ disabled 3 months 6 months 12 months 24 months custom back next nance Required save Figure 14. Set New Alert Date Figure 15. Setting Custom Time Comfort Sync™ 7-Day Programmable Communicating Thermostat Page 11...
  • Page 12 Service reminders can be cleared or the date can be revised by using the service alert's clear and remind later buttons on the right side of the screen. If you have performed the required maintenance, choose clear to clear the service info: reminder.
  • Page 13: Service Information And Help (?)

    System Desc system is cooling my comfortsync system Wi-Fi 9:39 am May 23, 2013 Wi-Fi 9:39 am May 23, 2013 Figure 18. Typical Help (?) Screen keyboard tool Figure 17. Service Information Comfort Sync™ 7-Day Programmable Communicating Thermostat Page 13...
  • Page 14: Adjusting Room Temperature, Away Mode, Program Change, Clock And Weather

    Adjusting Room Temperature, Away Mode, Program Change, Clock and Weather Adjust temperature when programming is OFF — When the system is currently using energy saving AWAY settings programming is OFF, the system mode button (shown in figure 19, labeled heat or cool) indicates a manual mode (no mention of “program”). In this cancel indoor temperature set temp...
  • Page 15 Program hold until next period cancel system is cooling 9:39 am May 23, 2013 9:39 am May 23, 2013 Wi-Fi Figure 23. Adjusting Temperature with Program Running (other options) Comfort Sync™ 7-Day Programmable Communicating Thermostat Page 15...
  • Page 16 You may select one of the hour buttons (1, 2, 8, or 24) if desired. If you select CLOCK SETTINGS custom, a time/date screen appears and you have the option of setting the hold for any length of time (see figure 24). set current date and January 2012 time...
  • Page 17: Setting Humidity Controls

    Humidifier and dehumidifier controls must be set up by the installer or the cooling mode. these controls will not be visible. If your system has one or both of these features and the controls are not visible, contact your Allied SYSTEM SETTINGS dealer for proper setup.
  • Page 18: Connecting To A Home Wi-Fi Network

    Connecting to a Home Wi-Fi Network WI-FIL SETTINGS Thermostat is not connected to the Wi-FI network Check the router utility program or contact service provider for help. The Wi-Fi thermostat must be close enough to the Wi-Fi router to ensure a WI-FI good communications signal between the thermostat and the router.
  • Page 19 (i.e, RSSI, IP address, MAC address and wait state) all of which may be helpful in troubleshooting network connection issues). 3. Touch connect to complete the connection. Note that the Wi-Fi enable button on the Wi-Fi SETTINGS screen becomes Wi-Fi disable. Comfort Sync™ 7-Day Programmable Communicating Thermostat Page 19...
  • Page 20: Troubleshooting Wi-Fi And Server Connections

    • Garage door openers Troubleshooting Wi-Fi and Server Connections • Neighbors' wireless devices. The following terminology is used in this troubleshooting section: To eliminate a possible source of interference, temporarily disable any • The following wireless LAN network protocols are supported by the devices and see if Wi-Fi performance has improved.
  • Page 21 Perform the following procedure, if the server connection is still not established. reset 1. From the Home screen, touch the Allied logo (bottom right-hand corner of screen) and hold for 5 seconds (see figure 35). Figure 36. Qualified Equipment Installer Warning Comfort Sync™...
  • Page 22: Registering Comfort Synct Thermostat

    Then, the home screen will appear. Register with Comfort Sync thermostat to enable remote access and online weather information 4. From the Home screen, touch and release Wi-Fi in the lower left corner enter your email of the HOME screen.
  • Page 23 NOTE - Firmware updates will not affect installer or user thermostat settings. Dear Customer, Both will be retained after the update. Congratulations on your purchase of a Allied Comfort Synct thermostat! You are only a few steps away from total control of your WI-FI SETTINGS Allied Comfort Synctsystem.
  • Page 24: Secure Web Portal

    1. From the thermostat Home screen, press After signing in, you’ll be able to view your Comfort Sync™ system settings, 2. Press the display setting button. adjust the temperature and view reminders and alerts – just as you would on your Comfort Sync™...
