LED RF & DMX WiFi Interface Ethernet - User Manual

1. Product Description

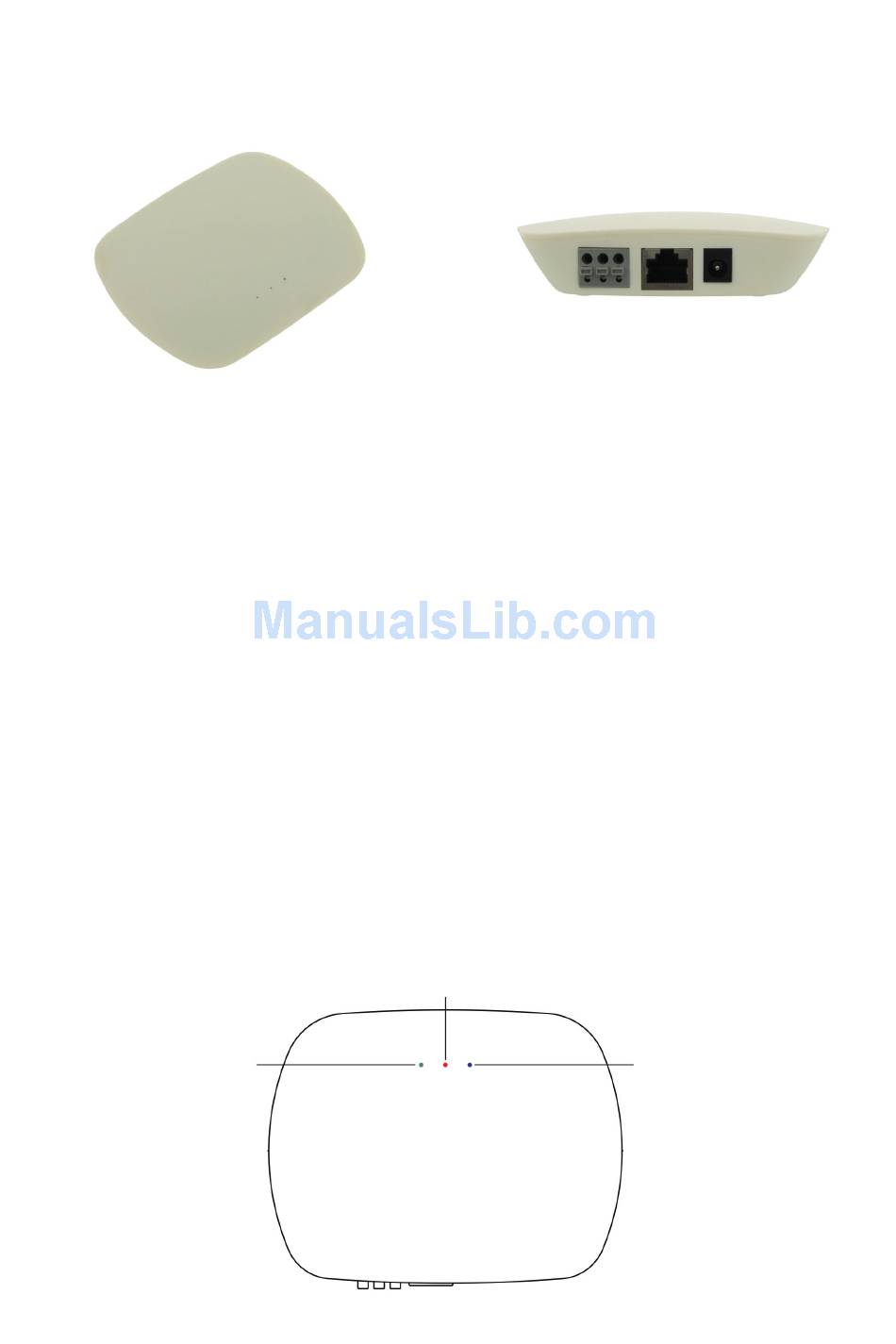

The RF & DMX Wifi Interface Ethernet works with RF-receiver series or DMX 512 decoders to be
controlled by iOS or Android system via WiFi. With the interface you can control via WIFI
upto 8 different zones.
2. Specification
Operation Voltage:
Dimensions:
3. Function/Introduction
green LED indicator:
Power on
12VDC included in the set, via RF or DMX signal,
Operation Frequenz 2.4G
110 x 85 x 24,2mm
red LED indicator:
data transfer activ
Item no: LC-012-000
blue LED indicator:
WiFi connection activ
