The quick guide is for quick installing and connecting the SDI Box Camera. For details, please refer to the camera's
User Manual.

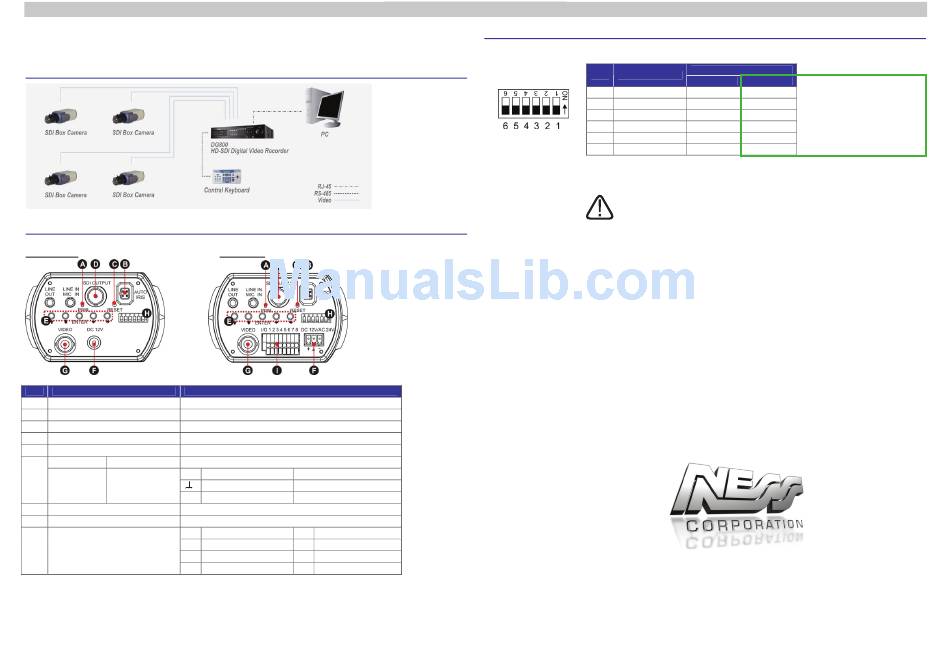

System Configuration
Connector Definition
Single Board
Item
Definition
A
PWR
Power connection indication (green light)
B
AUTO IRIS Connector
Auto Iris Lens connector
C
RESET
Reset
D
SDI OUTPUT
SDI signal output
E
↑ / ↓ / ← / → / ENTER
OSD control key
Single Board
DC12V
Power connector
＋
F
Dual Board
DC12V/AC24V
－
G
VIDEO
BNC output
H
DIP Switch
TV system/ Resolution/ Frame Rate Setup/BNC
1
2
I
Alarm I/O
3
4
SDI Box Camera Quick Guide
Dual Board
Remark
AC 24V: AC_IN 1
DC 12V: DC12V
AC 24V: GND
DC 12V: GND
AC 24V: AC_IN 2
DC 12V: DC12V
ALARM_GND
5
T-
ALARM_IN+
6
T+
ALARM_OUT-
7
R-
ALARM_OUT+
8
R+
DIP Switch Setting
The table below shows the definition of each DIP Switch on the Camera's Rear Plate.
Pin
Definition
1
TV System
2
Resolution
3
Frame Rate
4
Reserved
5
Reserved
6
BNC
Please kindly notice that while BNC is on, there will be no signal from SDI output
installeRs Please note:
dipswitch 6 must be oFF to enable sdi output
Setting
ON
OFF
Recommended settings
NTSC
PAL
720P
1080P
turn oFF switches 1-6
50/60
25/30
-
-
for correct operation.
-
-
ON
OFF
www.ness.com.au
00P5SH061ZXSEA3
