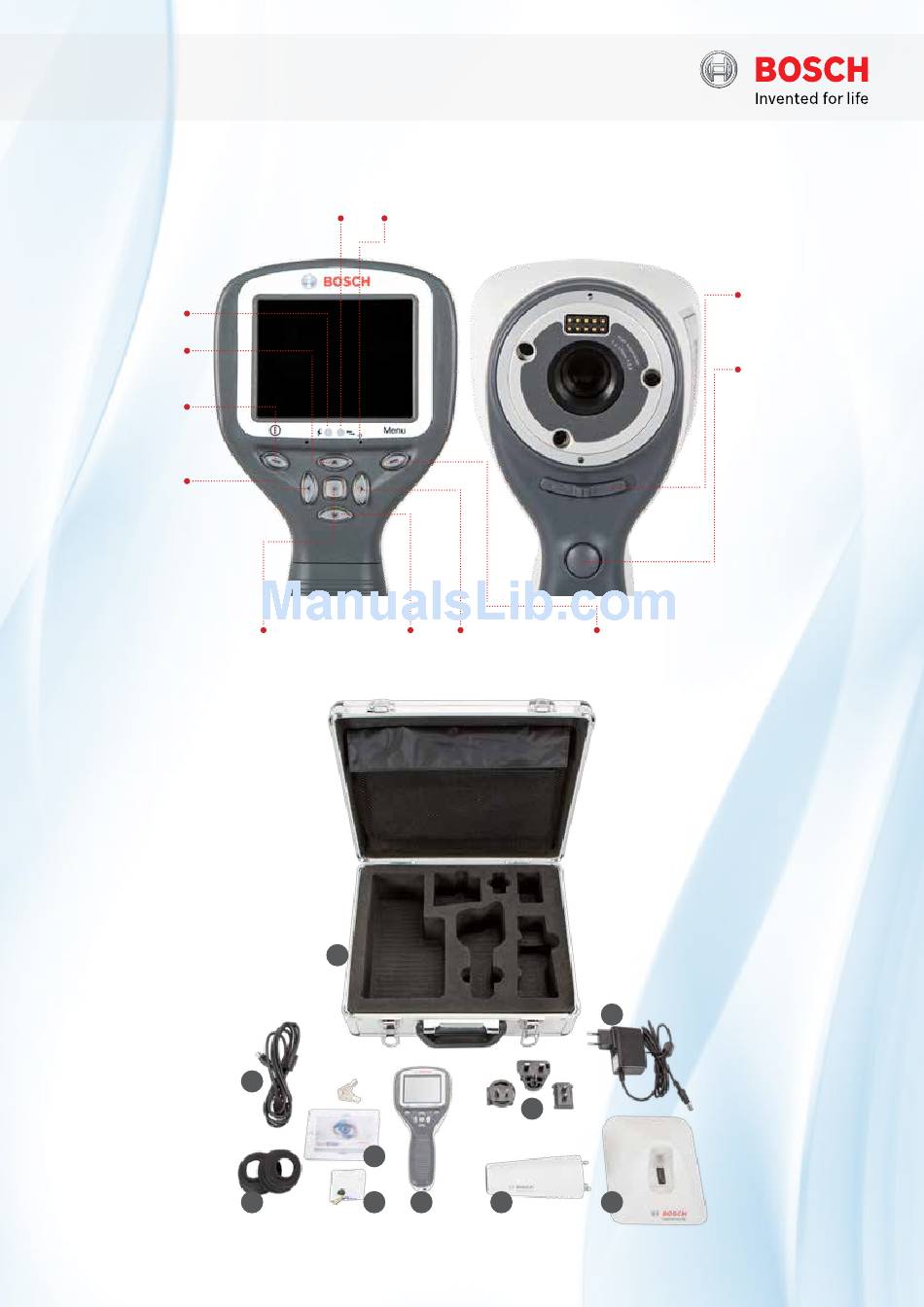

Bosch EYE CARE Quick Start Quide

Quick Start / Setup Guide
Data Connection LED
User interface
Power LED (Green)
Arrow up
Manual Focus
Left soft key
Short Press: IR On/Off
Long Press: Power On/Off
Arrow left
Decrease Illumination
Patient Folder Navigation
Middle key
Long: Create New
Patient Folder
1 Hard case for transport and storage
2 USB cable
3 Eyepiece
4 MediBilder installation software
(Supplied separately)
5 Rechargeable battery
Reset button
Arrow down
Manual Focus
1
2
4
3 5 6
Arrow right Right soft key
Increase Illumination Short Press: Auto/Manual Focus
Long Press: Menu/Preview
9
10
7 8
Release button
Slide Button to Attach/
Release Optics
Shutter button
Half Press to Turn Aiming
Light On and Focus in
Autofocus Mode
Full press to take
a picture and keep
pressed for video
capture
6 Bosch Eyecam (Camera)
7 Optical module
8 Cradle
9 Charger
10 Power socket adapters
