U-Tech CAMGUARDIAN UCG-H2D44B1 Quick Start Manual

Quick Start Guide
(V1.3)
UCG-H2D44A1/UCG-H2D44B1
2015 © U-tec Group Inc. All Rights Reser ved.
C
onnect the Cameras (A1)
To connect your camera(s) to the H2-D4, connect the DB25 to BNC Connector Cable(supplied) to
the back of the H2-D4, and connect the BNC to the cameras.
DC Power
DC Power
BNC
G

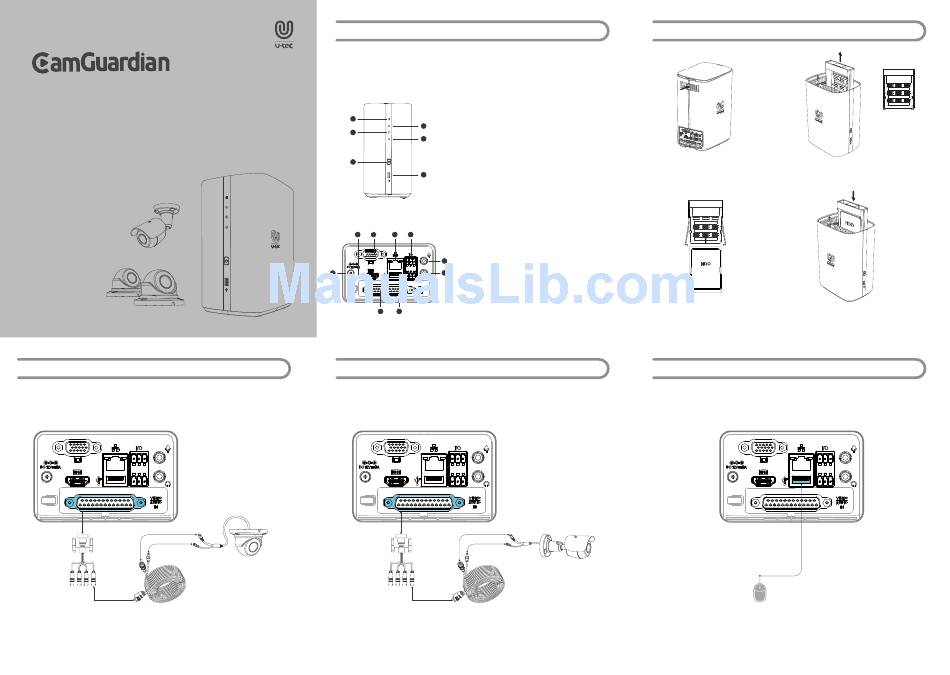

etting to know your H2-D4
Congratulations on the purchase of your U-tec CamGuardian. This quick start guide will assist you
on getting your H2-D4 up and running as soon as possible. We recommend that you connect
everything and give it a try before you do a permanent installation, to make sure nothing was
damaged during shipping. Below is a detailed connection map which illustrates the various con-
nections on the H2-D4.
Front
1
3
5
Back
2 3
1
8
C
onnect the Cameras (B1)
To connect your camera(s) to the H2-D4, connect the DB25 to BNC Connector Cable(supplied) to
the back of the H2-D4, and connect the BNC to the cameras.
BNC
A1
4 4
① Power Indicator Light: Display power ON/OFF status
② Status Indicator Light: Display H2-D4 working status
③ Hard Drive 1 Indicator Light: Display hard drive 1 working status
2
④ Hard Drive 2 Indicator Light: Display hard drive 2 working status
1
4
2
⑤ Power Switch: Switch on/off button
⑥ USB Port: Connect the USB device
6
① DC12V: Connect to power adapter
4 5 ② HDMI Port: Connect to HDTV or Monitor
③ VGA Port: Connect to a TV or Monitor
④ Network Interface: Network connector port
6
⑤ I/O Interface: Alarm input/output and RS485 communication
7
⑥ Audio Input: Input audio signal
⑦ Audio Output: Output audio signal
⑧ Analog Input: Connect to camera
⑨ USB Port: Connect the USB device
9
BNC
DC Power
DC Power
BNC
I
nsert Hard Drive
s s
P r e
Step 1: Press button and then the top
cover will spring up.
Step 3: Fix the hard drive onto bracket as
picture shows.
2 2
C
onnect the Mouse
Connect the mouse(supplied) to the USB port located at the rear of the H2-D4.
B1
5 5
Hard drive bracket
Step 2: Pull hard drive bracket out.
Step 4: Insert hard drive into H2-D4,
and replace cover.
3 3
6 6
