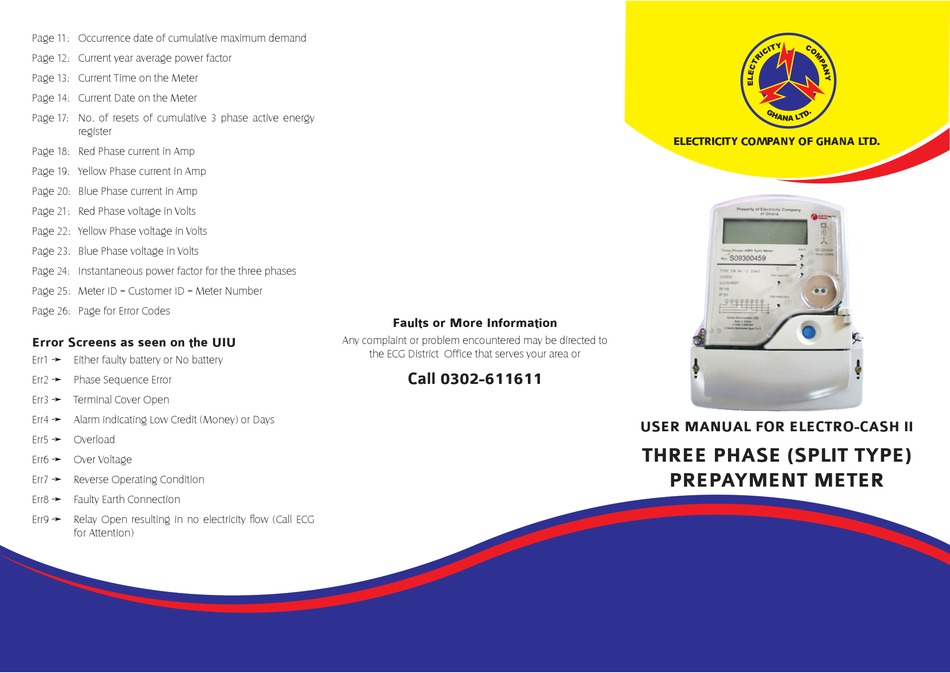

ELECTRICITY COMPANY ELECTRO-CASH II User Manual

Page 11: Occurrence date of cumulative maximum demand
Page 12: Current year average power factor
Page 13: Current Time on the Meter
Page 14: Current Date on the Meter
Page 17: No. of resets of cumulative 3 phase active energy
register
ELECTRICITY COMPANY OF GHANA LTD.
Page 18: Red Phase current in Amp
Page 19: Yellow Phase current in Amp
Page 20: Blue Phase current in Amp
Page 21: Red Phase voltage in Volts
Page 22: Yellow Phase voltage in Volts
Page 23: Blue Phase voltage in Volts
Page 24: Instantaneous power factor for the three phases
Page 25: Meter ID = Customer ID = Meter Number
Page 26: Page for Error Codes
Faults or More Information
Any complaint or problem encountered may be directed to
Error Screens as seen on the UIU
the ECG District Office that serves your area or
Err1  Either faulty battery or No battery
Call 0302-611611
Err2  Phase Sequence Error
Err3  Terminal Cover Open
Err4  Alarm indicating Low Credit (Money) or Days
USER MANUAL FOR ELECTRO-CASH II
Err5  Overload
THREE PHASE (SPLIT TYPE)
Err6  Over Voltage
PREPAYMENT METER
Err7  Reverse Operating Condition
Err8  Faulty Earth Connection
Err9  Relay Open resulting in no electricity flow (Call ECG
for Attention)
