Hiwell HT01-3R Installation Instruction

HT01series Heating Thermostat is applied for Water Heating System and Electric Heating System. We take
high quality raw materials, and produce and inspect strictly so as to make products steady and precise.
Simple shape and easy operation,HT01 will be your best choice.

Specification

Power Supply
Room Temp. Range
Floor Over-heating Protection 30~80℃
Internal Sensor
Floor Sensor
Do you need Holiday Mode?
Do you require Energy-saving Mode?
Do you require Comfort Mode?
Do you want to use Automatic Mode( 7 days separately Programmable)
Page 1 of 3

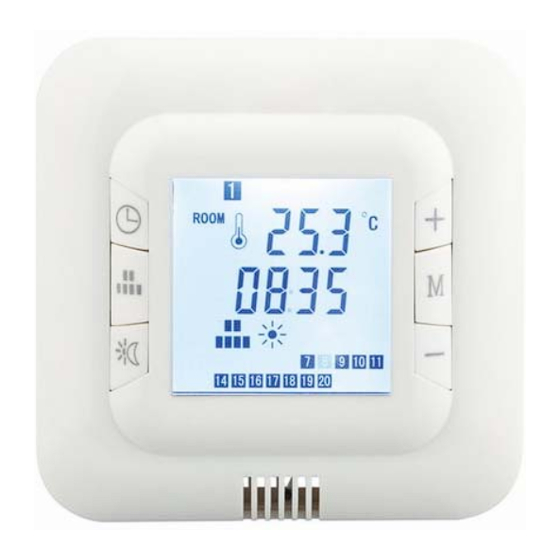

Heating Thermostat
Datasheet & Installation Instruction
230 Vac + 10%, 50/60 HZ
5~30 ℃
NTC 10K
NTC 10K
When you are on holiday, want to be energy-saving meanwhile not to
damage some equipment, please press
thermostat can run at your desired setting temperature
When the room is up-occupied, user wants to make room comfortable but
energy-saving, please press button
can run at your desired setting temperature
When the room is occupied, users wants desired comfortable, please
press to select
temperature
Load Water Heating System
Electric Heating System 16A
Accuracy + 0.5℃
Shell ABS+PC fire-resistant
to select
, then thermostat can run at your desired setting
HT01 Series 1． 0 Version
button to select
, then thermostat
3A
, then
