NATURAL GAS MODELS: GSS36CFN
PROPANE GAS MODELS: GSS36CFP
SAFETY INFORMATION
WARNING
!
If the information in these instructions are not
followed exactly, a fire or explosion may result
causing property damage, personal injury or
loss of life. Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this
or any other appliance.
- An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Shut off gas to the appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a neigh-
bour's phone. Follow the gas supplier's instruc-
tions.
• If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed
by a qualified installer, service agency, or the
supplier.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone 1 (866) 820-8686 • www.napoleonfireplaces.com • hearth@napoleonproducts.com
$10.00
ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

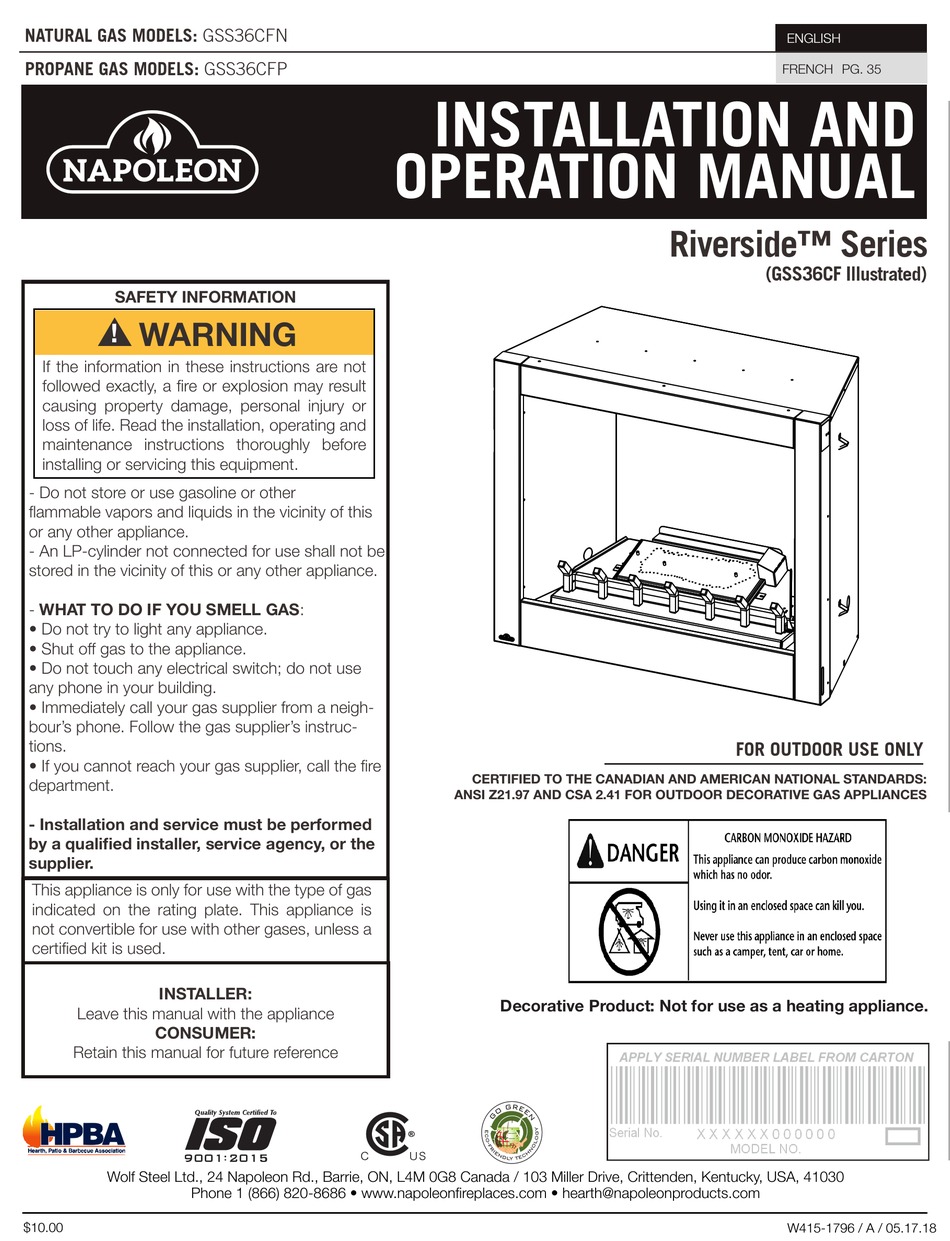

INSTALLATION AND
ADD MANUAL TITLE
OPERATION MANUAL
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
ANSI Z21.97 AND CSA 2.41 FOR OUTDOOR DECORATIVE GAS APPLIANCES
PRODUCT NAME™
Riverside™ Series
ADD PRODUCT IMAGE
Decorative Product: Not for use as a heating appliance.
IF INSTALLATION + OPERATION, ADD SERIAL
NUMBER LABEL HERE
IF SEPARATE MANUALS, ADD "PLACE
BARCODE LABEL ON THE OWNER'S MANUAL"
ENGLISH
FRENCH PG. 35

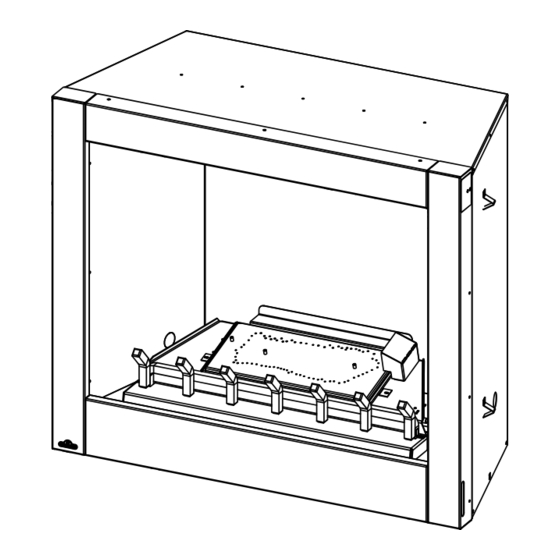

(GSS36CF Illustrated)
ADD ____ ILLUSTRATED
FOR OUTDOOR USE ONLY
W415-1796 / A / 05.17.18
