Summary of Contents for Rayson Technology WFM-210
-

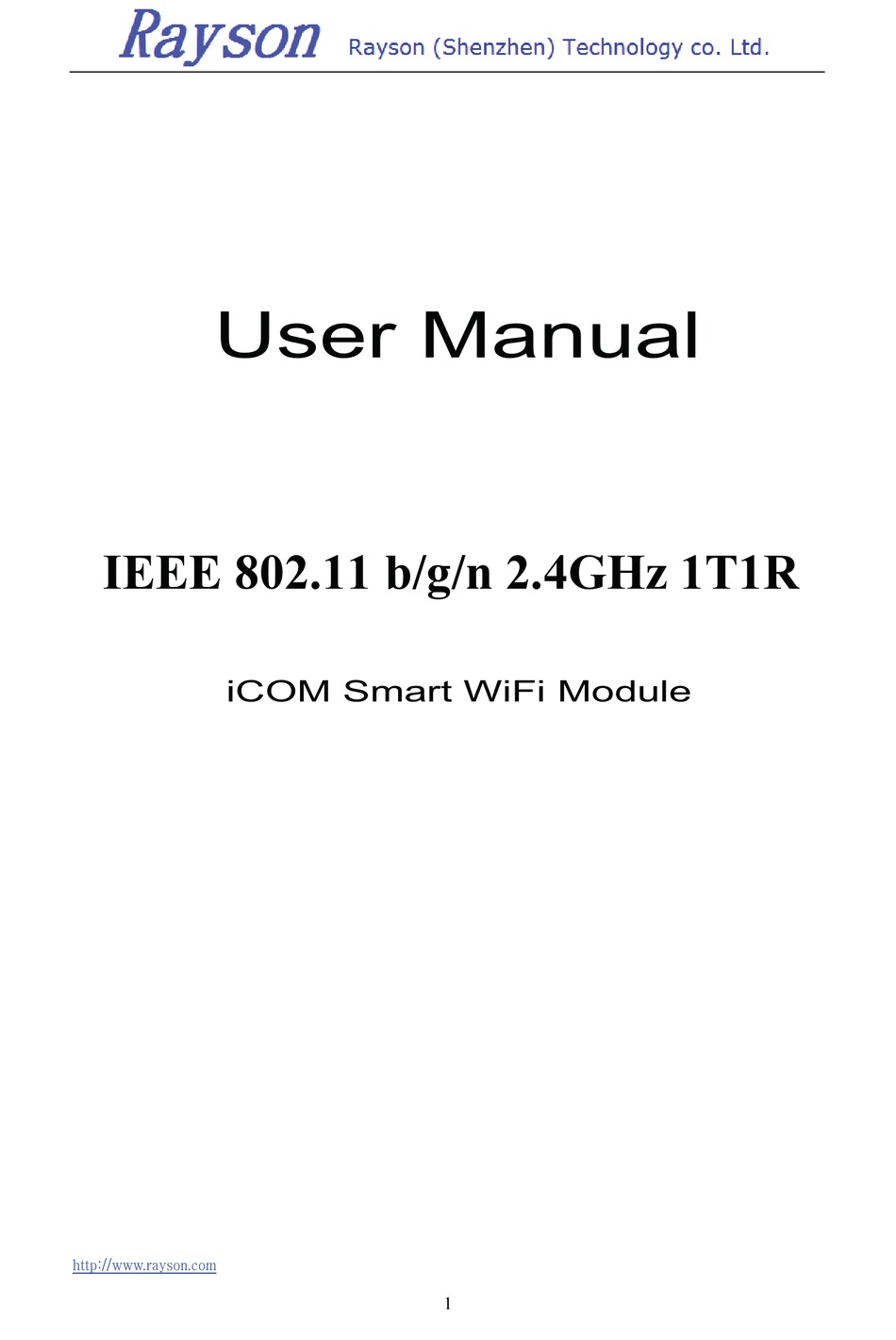

Page 1: User Manual
User Manual IEEE 802.11 b/g/n 2.4GHz 1T1R iCOM Smart WiFi Module ››—aVVžžžU™ˆ š–•UŠ–”... - Page 2 WFM-210 iAudio(Airplay/DLNA) (Realtek RTL8196EU+RTL8188ER) Single Module ››—aVVžžžU™ˆ š–•UŠ–”...
-
Page 3: Table Of Contents
Table of Contents Product Overview-----------------------------------------------------5 1.1. Extended Application-------------------------------------------------5 Module Parameter----------------------------------------------------6 2.1. Basic Parameter-------------------------------------------------------6 2.2. Regulation Requirements---------------------------------------------6 2.3. Environment Requirements-------------------------------------------7 2.4. RF Power Consumption-----------------------------------------------7 Pin Assignment on module--------------------------------------------8 Interface Specifications--------------------------------------------10 DVT Report----------------------------------------------------11 RF Connector----------------------------------------------------------13 Outline Drawing-------------------------------------------------------14 PCB outline drawing---------------------------------------------------14 shield cover outline drawing------------------------------------------15 ››—aVVžžžU™ˆ š–•UŠ–”... -
Page 4: Product Overview
Wi-Fi standard 802.11g and 802.11n, the transmission rate is 54Mbps for 802.11g, 150Mbps for 802.11n, all far more than the CD level quality required bandwidth。At the same time, WFM-210 can realize two device point to point direct, and also can through Wireless routing network.。... -
Page 5: Module Parameter
2. Module Parameter 2.1 Basic Parameter Feature Detailed Description Antenna Type IPEX compatible antenna Main chip RTL8196EU 2.412GHz-2.462GHz Frequency range 2.412GHz-2.484GHz CPU clock 400MHz DDR1 speed 156.25MHz DDR1 size 32MB Flash size 8MB SPI Flash PCB stack 4 layers Operating Voltage 3.3VDC +/- 10% Power Consumption 1.3W@1T1R,... -
Page 6: Environment Requirements
2.3 Environment Requirements Feature Detailed Description Operating The product is capable of continuous reliable Temperature operation when operating in ambient temperature Conditions of 0°C to +50°C Operating Neither subassemblies is damaged nor the Temperature operational performance is degraded when restored Conditions to the operating temperature after exposing to storage temperature in the range of -20°C to +75°C... -
Page 7: Pin Assignment On Module
3. Pin Assignment on module Abbreviations in used: I: Input AI: Analog Input O: Output AO: Analog Output IO: Bi-Directional Input/Output AI/O: Analog Bi-Directional Input/Output P: Digital Power G: Digital Ground NAME TYPE NAME TYPE GPIO_A4 Ethernet_LED 3.3V 3.3V ANT_A(1T1R_ANT) 3.3V UARTTRXD GPIO_0... - Page 8 ››—aVVžžžU™ˆ š–•UŠ–”...
-
Page 9: Interface Specifications
4.Interface Specifications ››—aVVžžžU™ˆ š–•UŠ–”... -
Page 10: Dvt Report
5. DVT Report Mode:11b Transceiver:A Bandwidth:20MHz Data Rate: 11Mbps Channel Pass/Fall *DLQ 6WDJH >17 'HF 2XWSXW 3RZHU G%P EVM(%)Freq. ... -
Page 11: Rf Connector
6.RF Connector ››—aVVžžžU™ˆ š–•UŠ–”... - Page 12 Antenna Information Antenna Type: PCB Antenna Antenna Gain: 3.3dBi Manufacturer: Unictron Technology Corporation Model Number: AA107 Patent No.: US 8,106,833 B2...
-
Page 13: Outline Drawing
7.Outline Drawing 7.1 PCB outline drawing ››—aVVžžžU™ˆ š–•UŠ–”... -
Page 14: Shield Cover Outline Drawing
7.2 shield cover outline drawing ››—aVVžžžU™ˆ š–•UŠ–”... - Page 15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
