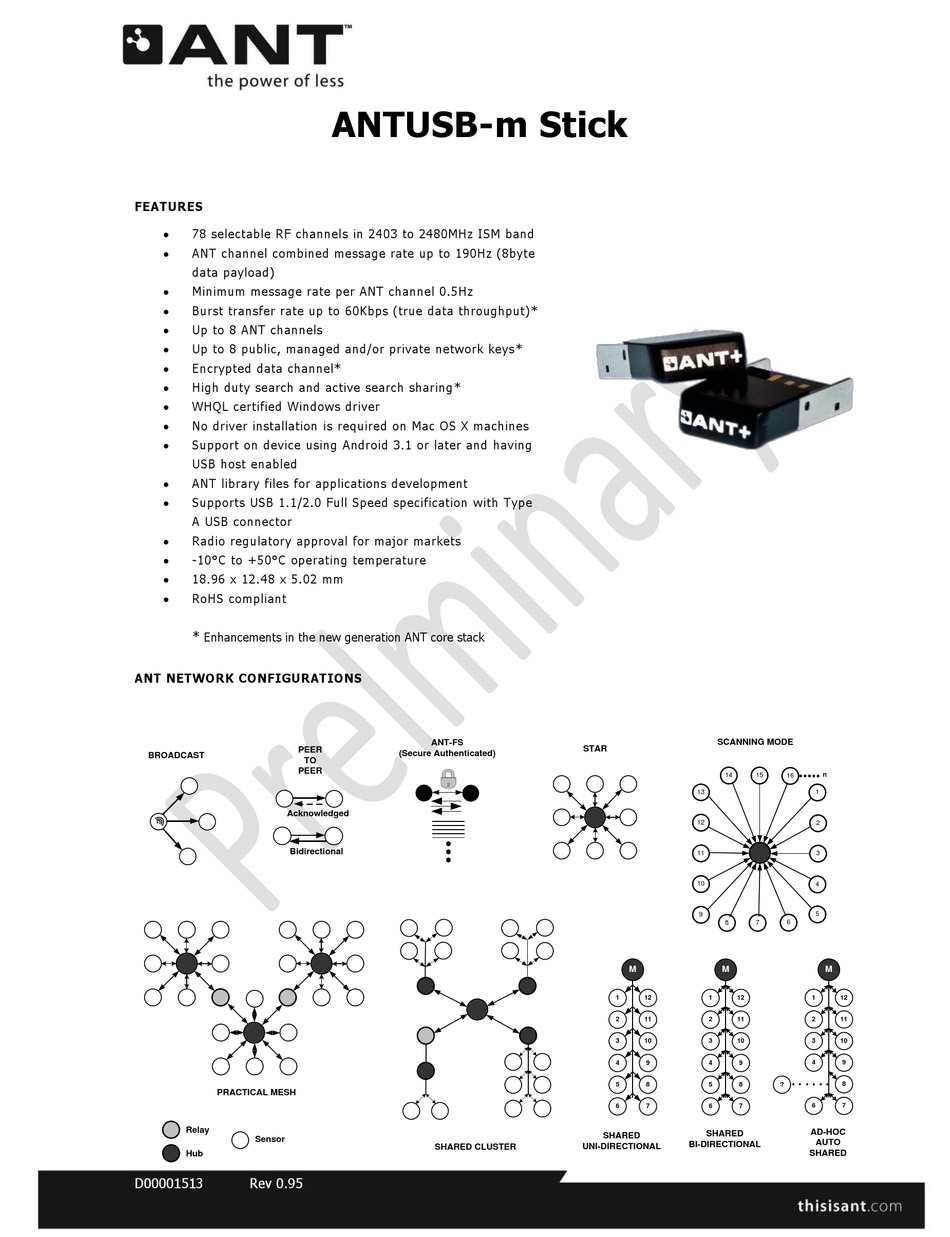

Dynastream Innovations ANTUSB-m Stick Datasheet

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FEATURES
78 selectable RF channels in 2403 to 2480MHz ISM band
ANT channel combined message rate up to 190Hz (8byte
data payload)
Minimum message rate per ANT channel 0.5Hz
Burst transfer rate up to 60Kbps (true data throughput)*
Up to 8 ANT channels
Up to 8 public, managed and/or private network keys *
Encrypted data channel*
High duty search and active search sharing *
WHQL certified Windows driver
No driver installation is required on Mac OS X machines
Support on device using Android 3.1 or later and having
USB host enabled
ANT library files for applications development
Supports USB 1.1/2.0 Full Speed specification with Type
A USB connector
Radio regulatory approval for major markets
-10°C to +50°C operating temperature
18.96 x 12.48 x 5.02 mm
RoHS compliant
*
Enhancements in the new generation ANT core stack
ANT NETWORK CONFIGURATIONS
PEER
BROADCAST
TO
PEER
Acknowledged
Bidirectional
PRACTICAL MESH
Relay
Sensor
Hub
D00001513
Rev 0.95
ANTUSB-m Stick
ANT-FS
(Secure Authenticated)
SHARED CLUSTER
SCANNING MODE
STAR
14
15
13
12
11
10
9
8
7
M
M
1
12
1
12
2
11
2
11
3
10
3
10
4
9
4
9
5
8
5
8
6
7
6
7
SHARED
SHARED
BI-DIRECTIONAL
UNI-DIRECTIONAL
16
n
1
2
3
4
5
6
M
1
12
2
11
3
10
4
9
?
8
6
7
AD-HOC
AUTO
SHARED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANTUSB-m Stick and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynastream Innovations ANTUSB-m Stick

  • Page 1 ANTUSB-m Stick FEATURES  78 selectable RF channels in 2403 to 2480MHz ISM band  ANT channel combined message rate up to 190Hz (8byte data payload)  Minimum message rate per ANT channel 0.5Hz  Burst transfer rate up to 60Kbps (true data throughput)* ...
  • Page 2 However, the information contained in this document is subject to change without notice and should not be construed as a commitment by DYNASTREAM unless such commitment is expressly given in a covering document. © 2012 Dynastream Innovations Inc. All Rights Reserved. ANT is a registered trade mark of Dynastream Innovations Inc.

  • Page 3: Table Of Contents

    ANTUSB-m Stick Datasheet Page 3 of 14 Table of Contents ANTUSB-m ..............................6 Drivers ............................6 ANT library ............................. 6 Product Model and Brand ........................ 7 1.3.1 Top Logo Area ........................7 1.3.2 Front Logo Area ........................ 7 Regulatory Approval (not completed on the date of this document) ............9 United States ..........................
  • Page 4 Page 4 of 14 ANTUSB-m Stick Datasheet ANT™ Overview ANT™ is a practical wireless sensor network protocol running on 2.4 GHz ISM band. Designed for ultra low power, ease of use, efficiency and scalability, ANT easily handles peer-to-peer, star, tree and practical mesh topologies.
  • Page 5 ANTUSB-m Stick Datasheet Page 5 of 14 The ANT+ Alliance is comprised of companies who have adopted the ANT+ promise of interoperability. The Alliance ensures standardized communication through optimized brand value and partnerships with other top tier companies and products.

  • Page 6: Antusb-M

    ANT sensor network. Operating in the globally available ISM radio frequency band of 2.4GHz, the ANTUSB-m stick conforms to multinational RF regulatory standards, allowing the same product line to be sold and used in North America, Europe, and Asia, without modification.

  • Page 7: Product Model And Brand

    Product Model and Brand The ANTUSB-m stick is released in black color, unbranded and with a special ANT+ figure mark on the front. The top side is left blank for customers to print or apply a sticker of their own logos or brand names.
  • Page 8 Page 8 of 14 ANTUSB-m Stick Datasheet The Fillets on the edge can cause some distortion to the image as they “curl away” from the main printing location. This distortion will not be visible to the naked eye. As well, objects that extend too far around the corner cannot be printed.

  • Page 9: Regulatory Approval (Not Completed On The Date Of This Document)

    ANTUSB-m Stick Datasheet Page 9 of 14 2. Regulatory Approval (not completed on the date of this document) The ANTUSB-m has received regulatory approvals in the United States (FCC), Canada (IC), Europe (ETSI), Japan (ARIB), Australia and New Zealand, China and Russia.

  • Page 10: Japan

    Page 10 of 14 ANTUSB-m Stick Datasheet  EN301 489-1 v1.8.1: 2008 ERM; Electro Magnetic Compatibility (EMC); Standard for Radio Equipment and Services  EN55022: 2006+A1:2007, Class B Information technology equipment - Radio disturbance characteristics  EN61000-4-2:1995+A1: 1998+A2:2001 Electrostatic Discharge Immunity ...

  • Page 11: Specifications

    ANTUSB-m Stick Datasheet Page 11 of 14 3. Specifications Mechanical Item Specification Notes Full Product Size L 19.0 ± 0.3mm x W 12.4 ± 0.3mm x H 5.3 ± 0.3mm Product weight <5g USB Connector Type A Contact Durability Rated for 400 insertions into USB port...
  • Page 12 Page 12 of 14 ANTUSB-m Stick Datasheet Average EIRP -3dBm +/-4dBm Antenna Gain 0 – 2 dBi Antenna Directivity 3dBi typical Band Edge Power -40dBm maximum (AU/NZ specification) Harmonics Power -40dBm maximum (AU/NZ specification) Depending on specific Communication Typical 5-10m...

  • Page 13: Mechanical Drawings

    ANTUSB-m Stick Datasheet Page 13 of 14 4. Mechanical Drawings thisisant.com...

  • Page 14: Support

    Users can seek application support from Dynastream Innovations, www.thisisant.com. ANT Forum Users are encouraged to participate in the ANT forum moderated by the application engineering team of Dynastream Innovations for any engineering discussions. Joining the ANT forum is free and open at www.thisisant.com/antforum. Public Technical References...
