Installing the Ethernet Switch in a Pedestal Enclosure

1. Halt all watering while you install the Ethernet switch.
BaseStation 1000: Press the OFF button.
BaseStation 3200: Turn the dial to the OFF position.
2. Open the front door of the BaseStation pedestal enclosure.
3. Look inside the pedestal at the upper-right of the back wall, and then choose one of the
following mounting locations:
If you see an empty space with 3 mounting pins, use the Back Wall Mounting
Instructions.
If you see an Ethernet radio module mounted in this location, use the Side Wall
Mounting Instructions on the next page.

Back Wall Mounting Instructions

1. Find the orange power connector
on the wires coming from the
transformer. Gently pull the
connector away from the board to
disconnect the power.
2. Locate the 3 mounting pins on the
back wall of the enclosure to the left
of the control board.

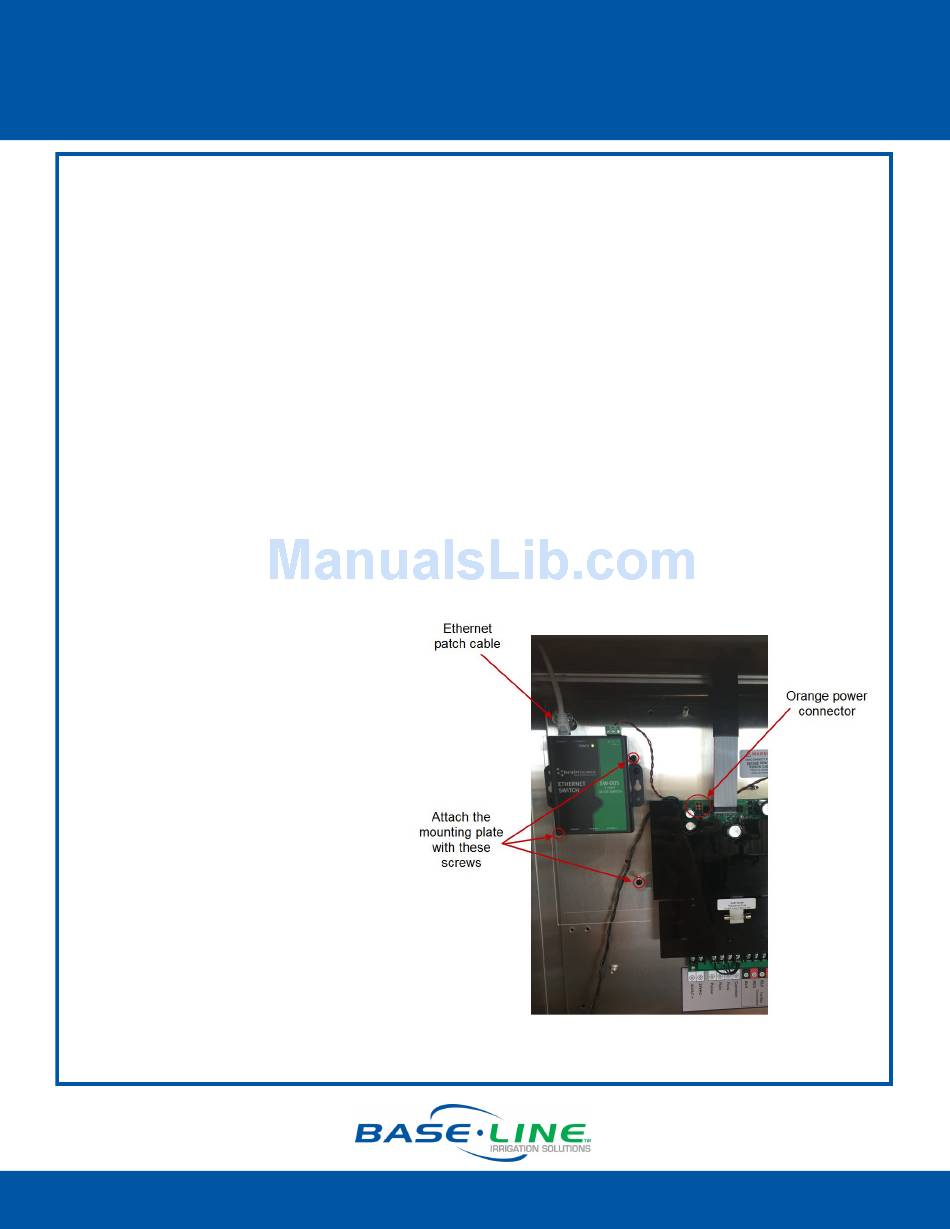

3. Align the holes on the Ethernet
switch mounting plate with the
mounting pins, and secure the
mounting plate with screws as shown
in the illustration.
4. Continue with the Power Connector
Instructions on the last page of this
document.
1-866-294-5847
BL-ETH-SW Ethernet Switch
Pedestal Installation Guide
Rev 10042016
www.baselinesystems.com
