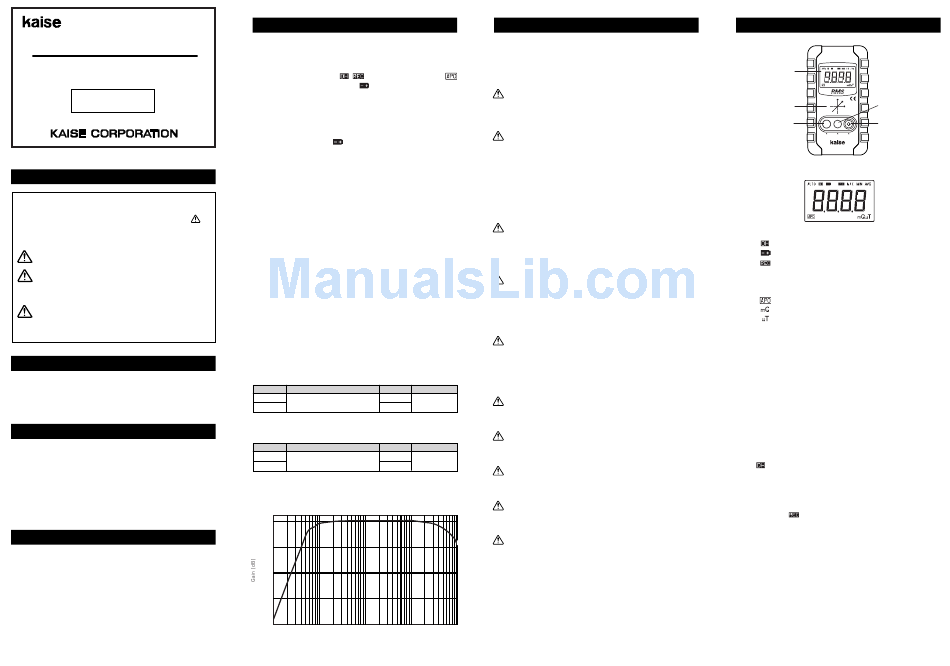

Kalse TRIAXIAL ELF SK-8301 Instruction Manual

TRIAXIAL ELF
MAGNETIC FIELD METER
INSTRUCTION MANUAL
SK-8301
FOR SAFETY MEASUREMENTS!!
To prevent an electrical shock hazard to the operator and/or
damage to the instruments, read this instruction manual carefully
before using the instrument. WARNINGS with the symbol
the instrument and this instruction manual are highly important.
Important Symbols :
The symbol listed in IEC 61010-1 and ISO 3864 means
"Caution (refer to instruction manual)".
WARNING
The symbol in this manual advises the user of an electrical
shock hazard that could result in serious injury or even death.
CAUTION
The symbol in this manual advises the user of an electrical
shock hazard that could cause injury or material damages.

INTRODUCTION

Thank you for purchasing KAISE "SK-8301 TRIAXIAL ELF MAGNETIC
FIELD METER". To obtain the maximum performance of this
instrument, read this Instruction Manual carefully, and take safe
measurement.

FEATURES

SK-8301 provides accurate magnetic field measurement by its triaxial
sensor and True RMS measurement method.
Suitable for extremely low frequency magnetic field measurement
●
from 40Hz to 1kHz.
Two measurement units,μT or mG are selectable.
●
MAX, MIN and Average measurement are possible.
●
Quick measurement without connecting any external sensor. Also
●
provides high portability.

1. UNPACKING AND INSPECTIONS

Confirm if the following items are contained in the package in good
condition. If there is any damage or missing items, ask your local
dealer for replacement.
1. Magnetic Field Meter 1 pce.
2. Carrying Case (1015) 1 pce.
3. Batteries (1.5V R6P) 2 pcs.
4. Instruction Manual 1 pce.
- 1 -

2. SPECIFICATIONS

2-1. GENERAL SPECIFICATIONS

1. DISPLAY (LCD)
a. Numerical Display : 2000 count, Maximum reading 2000, 15mm high
b. Units and Symbols : , , MAX, MIN, AVG, μT, mG,
AUTO,
2. OPERATING PRINCIPLE : Triaxial True RMS (X, Y, Z)
3. SAMPLING RATE : 2 times/second
4. RANGE SELECTION : Auto-ranging
5. MEASUREMENT UNIT : μT/mG
(selectable when turn the power on)
6. OVERLOAD INDICATION : "OL" indication when exceeding 2000 count
7. BATTERY WARNING : indication at approx. 2.3V±0.15V or less
8. DISPLAY HOLD : Hold indicating values by DH Key
9. MAX/MIN/AVERAGE : Measurable by REC Key
10. AUTO POWER OFF : Power turns off automatically after approx.
30 minutes. (in normal measurement mode / cancelable)
11. OPERATING POWER SUPPLY VOLTAGE : 2.3V to 3.6Ｖ
12. OPERATING TEMPERATURE & HUMIDITY : 0℃ to 40℃, 80%RH
or less in non-condensing
13. STORAGE TEMPERATURE & HUMIDITY : -20℃ to 60℃, 70%RH
on
or less in non-condensing
TEMPERATURE COEFFICIENT : Accuracy at 23℃±5℃×0.1/℃
14.
15. SAFETY LEVEL : CE marking approved (IEC-61010-1, CAT I 600V
and EMC Test passed.)
16. POWER SUPPLY : 1.5V R6P or LR6 (AA) batteries x 2
17. CURRENT CONSUMPTION : Approx. 20mA (less than 100μA in
auto power off and power-off conditions)
18. CONTINUOUS OPERATING TIME : Approx. 100 hours (alkaline),
Approx. 50 hours (manganese)
19. DIMENSIONS & WEIGHT : 148(H)×83(W)×33(D)mm, Approx.
220g (including batteries)
20. ACCESSORIES : 1015 Carrying Case, 1.5V R6P (AA) batteries x 2,
Instruction Manual

2-2. MEASUREMENT SPECIFICATION

(23℃±5℃、＜80％RH in non-condensing)
1. Magnetic Flux Density (μT)
Range Accuracy Resolution
±2％rdg±5dgt (50/60Hz)
20.00μT
200.0μT ±5％rdg±5dgt (40Hz to 1kHz)
Range Selection : Auto-ranging
Response Speed : Within 2 seconds
2. Magnetic Flux Density (mG)
Range Accuracy Resolution
200.0mG ±2％rdg±5dgt (50/60Hz)
±5％rdg±5dgt (40Hz to 1kHz)
2000mG
Range Selection : Auto-ranging
Response Speed : Within 2 seconds
FREQUENCY CHARACTERISTIC EXAMPLE
0.0
-5.0
-10.0
-15.0
-20.0
1 10 100
Frequency [Hz]
- 2 -

3. SAFETY PRECAUTIONS

Correct knowledge of electric measurements is essential to avoid
unexpected danger such as operator's injury or damage to the instrument.
Read the following precautions carefully for safety measurements.
,

3-1. WARNINGS

WARNING 1. Checks of the Instrument
Before measurement, check if there is no damage to the instrument.
Dust, grease and moisture must be removed.
WARNING 2. Strong Magnetic Field
Extremely strong magnetic field could be generated depending on
the electromagnetic sources.
1. Be careful not to get out of safety zone or safely marking area.
2. The person who with implant electronic devices such as pacemaker
should avoid any dangerous area.
3. Be careful about displayed measurement values when approaching
uncertain magnetic field sources.
WARNING 3. Electrical Shock
Do not touch the instrument on voltage generated circuit or any other
parts. It might cause electrical shock hazard that could result in serious
injury or even death.
WARNING 4. Measurable Frequency Range
Measurable frequency range of this instrument is 40Hz to 1kHZ.
Measurement out of this range should be incorrect, and may not
detect the strong magnetic field which is dangerous for the person
who with implant electronic devices such as pacemaker.
WARNING 5. Maximum Input Observance
Do not measure any magnetic flux density that might exceed the
specified maximum input value.
True RMS

3-2. GENERAL WARNINGS AND CAUTIONS

Maximum Input
0.01μT
WARNING 1. Children and the persons who do not have
200.0μT
0.1μT
enough knowledge about electric measurements
must not use this instrument.
WARNING 2. Do not measure the electricity in naked of
True RMS
barefooted to protect yourself from electrical
Maximum Input
shock hazard.
0.1mG
2000mG
1mG
CAUTION 1. Keep away the instrument from hot and humid
conditions like inside the car. Do not apply hard
mechanical shock or vibration.
Do not polish the case or attempt to clean it with
CAUTION 2.
any cleaning fluid like gasoline or benzine. If
necessary, use silicon oil or antistatic fluid.
CAUTION 3. Remove the batteries when the instrument is out
of use for a long time. The exhausted batteries
might leak electrolyte and corrode the inside.
1000 10000

4. NAME ILLUSTRATION

REC Key

4-1. LCD

AUTO
MAX
MIN
AVG
4-2. POWER Key
a. Power ON/OFF
Press this key for 0.5 seconds or less to turn on. To turn off, press it
for 2 seconds or more.
b. Changing Measurement Units
Turn on the instrument holding down DH Key. Measurement unit is
changed into another one, either μT or mG.
NOTE : Factory default setting is "μT".
NOTE :
The changed measurement unit is displayed from the next
power-on.
4-3. DH Key : Display Hold
Holds displayed value on LCD by pressing this key for 0.5 seconds or
less. (" " lights up)
To release it : Press DH Key again for 0.5 seconds or less.
4-4. REC Key : MAX/MIN/AVERAGE measurement
Press this key for 0.5 seconds or less to start MAX, MIN and Average
measurements ("
for 0.5 seconds or less during MAX/MIN/AVERAGE measurement.
To return to normal measurement mode : Press REC Key for 2
seconds or more.
※For details of this function, read "5-3. MAX/MIN/AVERAGE
Measurement".

4-5. Sensor

Triaxial sensor is incorporated inside of the X, Y, Z mark.
When measuring, put this mark almost under the magnetic field
source.
- 3 -
TRIAXIAL ELF
MAGNETIC FIELD METER
LCD
Y
Z
Sensor DH Key
X
POWER Key
REC DH
MAX / MIN DISPLAY
AVG HOLD POWER
SK-8301
Fig. 1
Fig. 2
: Auto-ranging measurement
: Lights up in display hold function
: Low battery warning
:
Lights up in MAX/MIN/AVERAGE measurement
: Lights up when maximum value is displayed
: Lights up when minimum value is displayed
: Lights up when average value is displayed
: Lights up when auto power off is activated
:
Lights up in mG measurement
: Lights up in μT measurement
" lights up). To view each value, press this key
- 4 -
