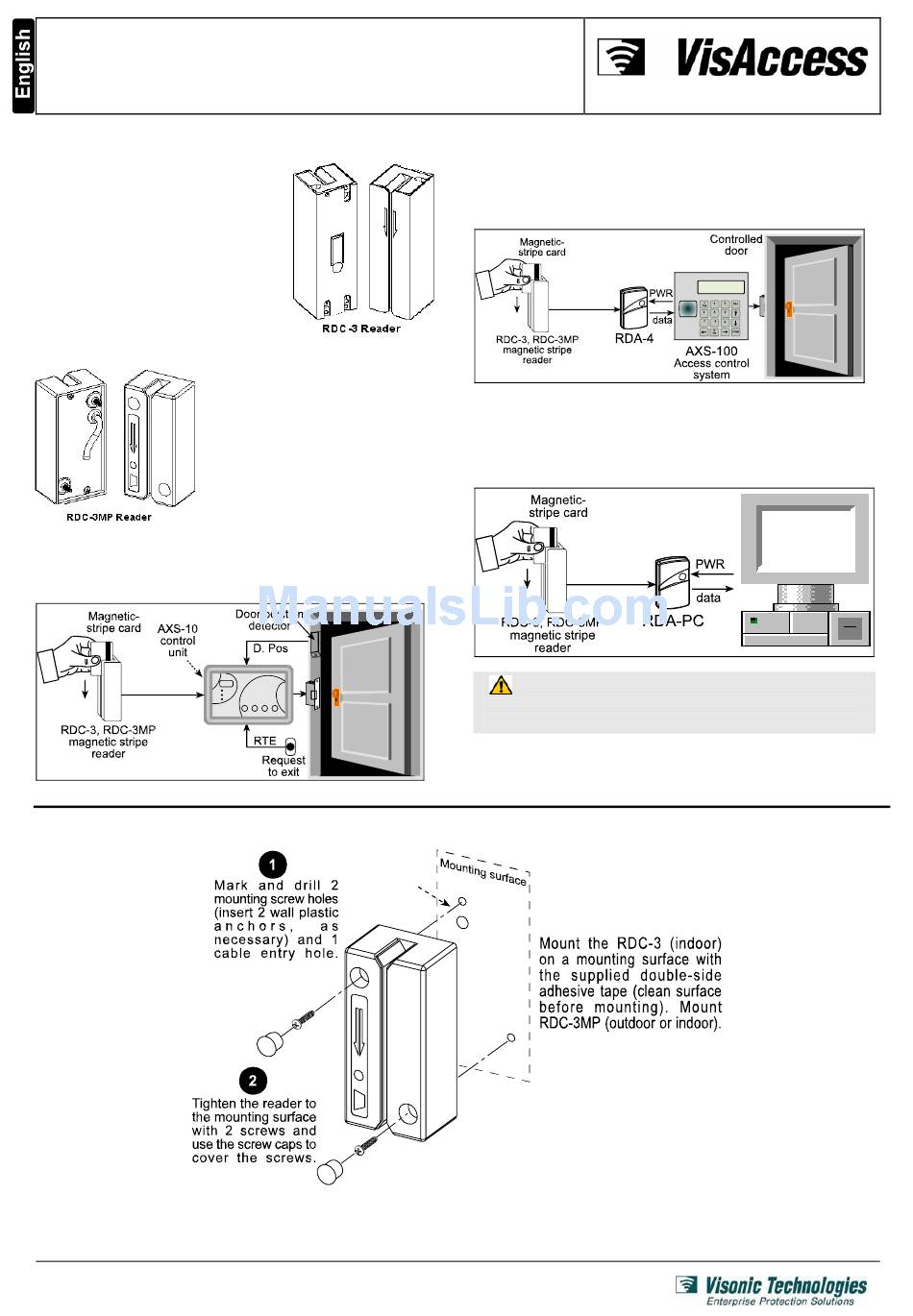

VisAccess RDC-3MP Installation Manual

RDC-3, RDC-3MP
Magnetic Strip Card Readers
For the AXS-10, AXS-10 Pro & AXS-100 Access Control Systems

Product Overview

The RDC-3 and RDC-3MP are
ISO 7811 compliant magnetic strip
card readers for the VisAccess
AXS-10, AXS-10 Pro and
AXS-100 access control systems.
The RDC-3 is designed for indoor
installations, while the anti-vandal
RDC-3MP is suitable for high-risk,
all-weather locations where polymer
constructed readers are not usable.
The RDC-3 is supplied with a 1m (3.2 ft) 4-conductor shielded
cable, while the RDC-3MP has a 1.5m (5.0 ft) 7-conductor
shielded cable for wiring the devices to the AXS-10 controller.

Installation Guidelines

Page 1 of 3
DE6296_V7.0
Both readers feature long reader
head life durability, low power
consumption and bi-direction read
capability of single or dual mag
tracks. The RDC-3MP also has
triple track read functionality of
high or low coercivity mag-strip
cards.
RDC-3/RDC-3MP Mounting
Optionally, the RDC-3/3MP readers may be interfaced with
AXS-100 access control systems through the RDA-4 reader
interface module.
Additionally, the RDA-PC Batch Enrollment Adapter facilitates
the usage of RDC-3/3MP readers for the enrollment of card
ID data from large numbers of mag-strip cards into Visonic
Technologies' AXSalert (all versions) or EIRIS V4.6
(or higher) enterprise software platforms.
CAUTION:
It is important that you read, understand,
and follow the instructions in this document. If you have
questions, call your local VT support representative.
Installation Guide
