Aprilaire 213 Installation

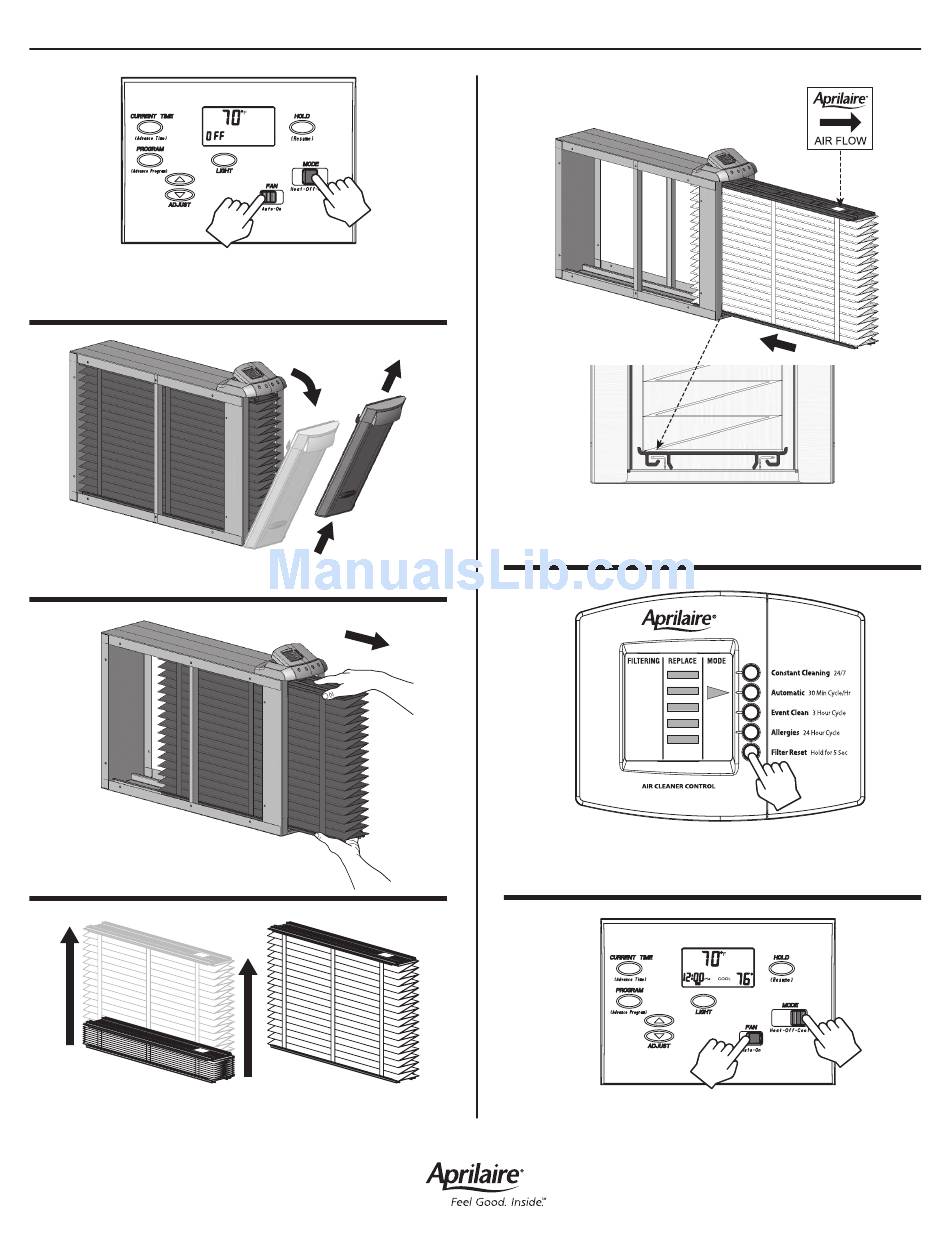

Model 213, 313 & 413 Media Installation
Expand clean filter.
Install filter with Air Flow pointing
toward Furnace or Air Handler.
IMPORTANT: Turn thermostat mode to OFF.
Turn fan to AUTO.
Align filter in top and bottom rails
and slide into place. Reinstall door.
Remove door.
Press Reset on air cleaner control.
Remove dirty filter.
Control may be mounted in living space.
Expand clean filter. Return thermostat to original settings.
Install filter with Air Flow pointing
toward Furnace or Air Handler.
10010442 6.13 © 2013 Aprilaire – A division of
P.O. Box 1467 • Madison, WI 53701-1467 • Phone: 800/334-6011 • Fax: 608/257-4357 • www.aprilaire.com
B2701313A Research Products Corporation
