EMX Industries, Inc. ULT-PLG ULTRALOOP Operating Instructions Manual

Ultraloop

Advertisement

Quick Links

ULT-PLG
ULTRALOOP
V E H I C L E L O O P D E T E C T O R
4564 Johnston Parkway, Cleveland, Ohio 44128
P. 800 426 9912 F. 216 518 9884
Sales Inquiries: salessupport@emxinc.com
Technical Support: technical@emxinc.com
www.emxinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULT-PLG ULTRALOOP and is the answer not in the manual?

Questions and answers

Summary of Contents for EMX Industries, Inc. ULT-PLG ULTRALOOP

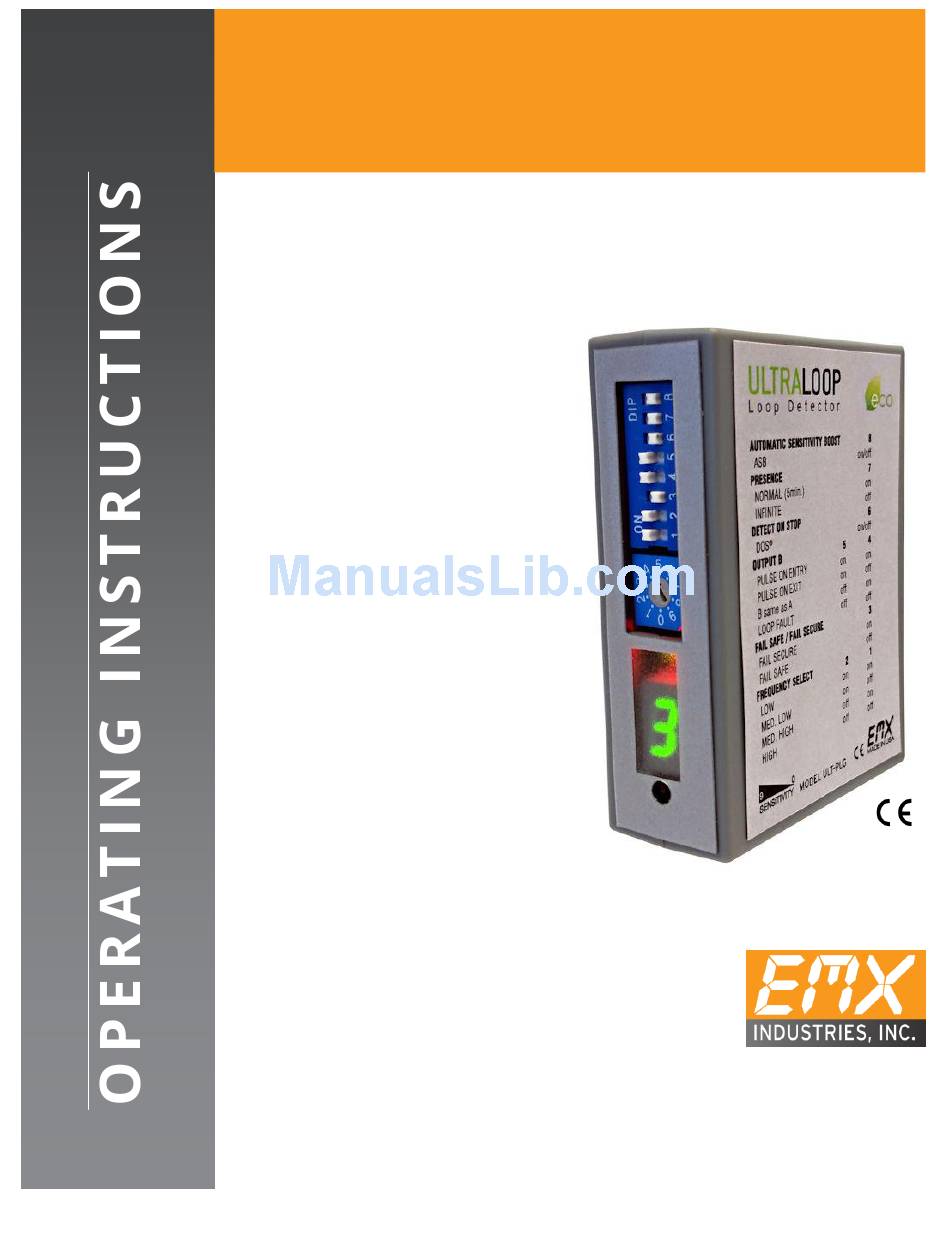

  • Page 1 ULT-PLG ULTRALOOP V E H I C L E L O O P D E T E C T O R 4564 Johnston Parkway, Cleveland, Ohio 44128 P. 800 426 9912 F. 216 518 9884 Sales Inquiries: salessupport@emxinc.com Technical Support: technical@emxinc.com www.emxinc.com...
  • Page 2: Table Of Contents

    Contents Cautions and Warnings Product Overview Specifications Operation Controls and Indicators Connections Troubleshooting Loop Installation Ordering Information ULT-PLG™ Operating Instructions Document no. 10180904...
  • Page 3: Cautions And Warnings

    Cautions and Warnings CE REQUIREMENT: Use EMX pre-formed loops with built-in surge suppression for CE compliance. Connect shield on lead in wire to earth ground. CE REQUIREMENT: Use CE rated power supply for CE compliance providing suppression as specified by EN61000-4-5. Not to be used in personal safety applications.
  • Page 4: Specifications

    Specifications Specifications Sensitivity 10 levels, 0-9 Indicates optimum sensitivity level, 0-9 UltraMETER™ Display Diagnostic aid Loop frequency 4 settings (low, med-low, med-hi, high) Loop inductance 20…2000µH (Q factor > 5) Isolation transformer allows operation with poor Grounded loop quality loops Detector tunes to loop on power-up and following Automatic tuning frequency count function...
  • Page 5: Operation

    Operation Power up Upon power up the detector initializes by automatically tuning to the loop. The green LED indicates that the detector is powered and operational. Frequency setting The operating frequency of the loop is a function of the specific loop inductance and DIP switch settings 1 and 2.
  • Page 6 Operation (continued) Frequency Count / Reset Press the Frequency Count switch and count the number of flashes on the red LED. Each flash represents 10kHz. To help to prevent crosstalk when multiple detectors are used for adjacent loops, perform a frequency count on each detector to confirm the operation frequencies are different.
  • Page 7: Controls And Indicators

    Controls and Indicators AUTOMATIC SENSITIVITY BOOST DIP switch position 8 ASB enabled PRESENCE DIP switch position 7 NORMAL (5 min.) INFINITE DETECT-ON-STOP (DOS) DIP switch position 6 DOS on DOS off OUTPUT B DIP switch position MODE Pulse on Entry Pulse on Exit(1) B same as A Loop Fault...
  • Page 8: Connections

    Connections Connector pin Description Loop Loop Power + (12VDC…24VDC) No connection No connection Output B Output B inverted Presence output Power + (12VDC…24VDC) Common ULT-PLG™ Operating Instructions Document no. 10180904...
  • Page 9: Troubleshooting

    Troubleshooting Symptom Possible cause Solution Green LED flashes Loop wire shorted or open Check loop resistance on the appropriate loop pins on the control board connector, between .5 ohms and 5 ohms. Green LED flashes, 2 fast Loop was previously Check loop resistance on the shorted or open appropriate loop pins on the...
  • Page 10: Loop Installation

    Loop Installation NEW SLAB POUR Ty-wrap 1-1/4” PVC pipe to the top of the rebar in the size and configuration of the loop (ex. 4’ x 8’). Then ty-wrap the loop to the top of the PVC frame. This stabilizes the loop during the pour and separates it from the rebar.
  • Page 11: Ordering Information

    Ordering Information ULT-PLG Ultra PLG Vehicle Loop Detector with DIN rail mounting Accessories PR-XX EMX Lite Preformed Loops™ Warranty EMX Industries Incorporated warrants all products to be free of defects in materials and workmanship for a period of two years under normal use and service from the date of sale to our customer.
  • Page 12 BLANK PAGE ULT-PLG™ Operating Instructions Document no. 10180904...
  • Page 13 BLANK PAGE ULT-PLG™ Operating Instructions Document no. 10180904...
  • Page 14 4564 Johnston Parkway Cleveland, Ohio 44128 United States of America www.emxinc.com Technical Support: (216) 834-0761 technical@emxinc.com Sales: (216) 518-9888 Fax: (216) 518-9884 salessupport@emxinc.com Revision 1.4 3.12.2018 ULT-PLG™ Operating Instructions Document no. 10180904...
