NanoVibronix PainShield FD-14A Instructions For Use

Attention – this guide provides the basic principals of operation for the PainShield
user manual. Please read the complete manual (PSUM003) before using the PainShield and make sure that you understand all
aspects of PainShield operation.

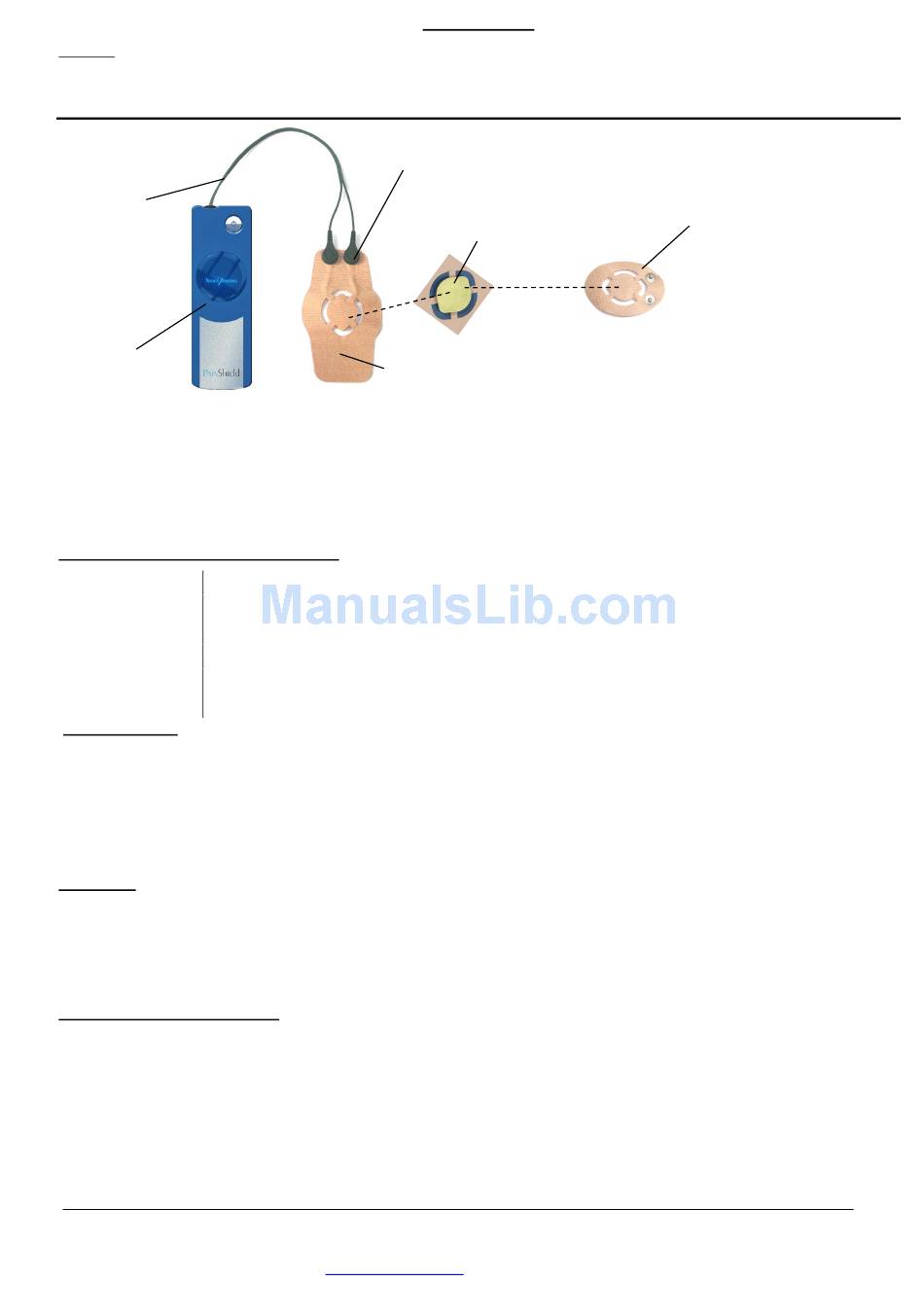

Driver cable
Driver
FD-14A
The PainShield MD is a microprocessor controlled therapeutic ultrasound device that produces low frequency, low intensity ultrasonic waves for the relief of
pain, muscle spasm and improvement of localized blood circulation. The ultrasonic waves are generated by a unique transducer incorporated into a
treatment patch. There are two types of the patches: Reusable treatment patch – A and Reusable facial treatment patch – B. The treatment patch should be
placed on the skin at the desired treatment area or adjacent to it.
For maximal effectiveness – ensure that the ultrasonic transducer is in full contact with the skin.
Pain Shield MD model FD-14A specifications
Frequency range: 90 kHz ± 0.001 Hz
Output voltage: 12 V
Rechargeable battery: Lithium-ion (full charging time ~ 6 h)
Dimensions: 113 mm (h) x 39.4 mm (w) x 12.6 mm (h)
Weight: Driver ~ 70 g ; patch ~ 10 g
Acoustic power: 0.4 W
Contraindications
 Do not use in patients with cancer and bone metastases
 Do not apply over bone growth centers until bone growth is complete
 Do not apply directly on the eye
 Do not apply directly over ischemic tissues in individuals with vascular disease
 Pregnant women should be treated only with physician consent.
Precautions
 In children, it is preferable to avoid usage over the epiphyseal growth plate area.
 Following a laminectomy when major tissue removal has occurred
 Over anesthetic areas
 When hemorrhagic diathesis is present
General warnings and precautions
 Treating of children should be done under adult supervision.
 Following treatment, some redness might occur in the treated area. The redness should resolve naturally within a few hours.
 Do not place the treatment patch directly on open wound.
 The safety and effectiveness of PainShield has not been determined in patients who are being treated by, or who have received, other medical
devices including but not limited to pacemakers, electrical stimulators, radiofrequency generators, surgical meshes
or other surgical implants.
USA – NanoVibronix Inc., 105 Maxess Road, Suite S124 Melville, NY 11747, Tel: +631-574-4410
PSIFU009 Ver. 03
Europe - NanoVibronix Ltd. 9 Derech Hashalom St., Nesher 36603, Israel,
PainShield
Contact snaps
Ultrasound transducer
incorporated into patch
Reusable treatment
patch - A
www.nanovibronix.com info@nanovibronix.com
®
®
device. It is not intended to replace the complete
Reusable facial treatment patch - B
Tel: +972 4 820-0581
