Labkotec Labcom 220 Quick Manual

Labkotec Oy reserves the right to make changes
at any time and without prior notice. Technical
specifications may change at any time because
of ongoing improvements done by our Depart-
ment of Research and Development. The instal-
lation must always be carried out in accordance
with the instructions of the manufacturer.
Labkotec Oy
Myllyhaantie 6
FI-33960 Pirkkala
FINLAND
Tel. int. +358 (0)29 006 260
Fax int. +358 (0)29 006 1260
E-mail info@labkotec.fi
Labkotec GmbH Labkotec AB
Technologiezentrum
Ekbacksvägen 28
Lise-Meitner-Strasse 2 SE-168 69 Bromma
24941 Flensburg
SWEDEN
GERMANY Tel. int. +46 (0)8 130 060
Tel. int. +49 (0)461 9992 410
Fax int. +46 (0)8 555 36108
Fax int. +49 (0)461 4807 335 E-mail info@labkotec.se
E-mail info@labkotec.de

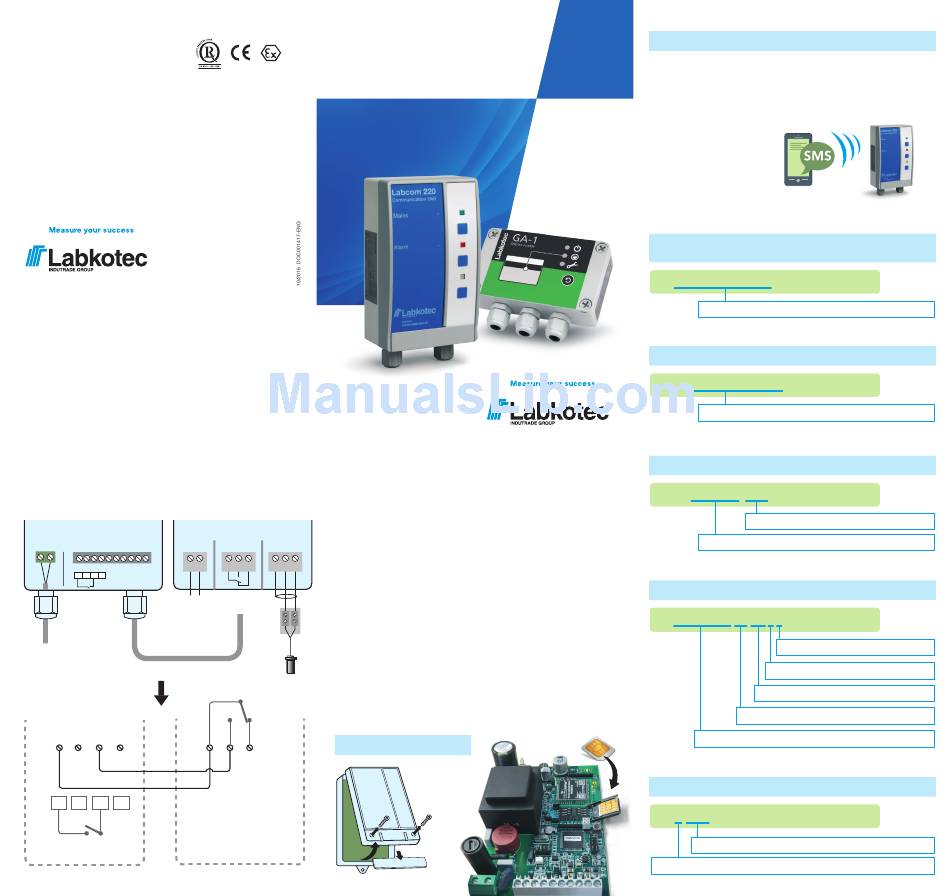

Application example

Labcom 220
N L1
L N 1 2 3 4 5 6 7 8 9 10
Di1 Di2 +Us
GND
1 2 3 4 3
DI1 DI2 +Us
GND
Relay contact:
Grease alarm enabled
Labcom 220
Communication Unit
Labcom 220
Warning Device GA-1
Quick Guide
Please take note
This Quick Guide describes an appli-
cation example for the communication
GA-1
unit Labcom 220 and the warning
device GA-1. It is not substituting the
instruction manuals for Labcom 220
and GA-1.
Safety instructions, intended use and
3 4 5 6 7 8 detailed information of the two devices
are described in each of the corres-
ponding instruction manuals.
Requirements
The Labcom 220 communication unit
as well as the GA-1 warning device
2 1
must be installed in accordance with
the respective instruction manual.
The cable connection between the
two devices matches the application
example.
Inserting the SIM card
4 5
GA-1
DOC001417-ENG
The PIN code for the SIM card of
the Labcom 220 communication unit
must be disabled. This can be done
by means of a mobile phone. Follow
the instructions provided in the mobile
phone's manual to do this.
The application example shows the
scheme of the GA-1 warning device,
where the relay switches upon grease
alarm, sensor cable breakage or sen-
sor defect. The relay of the warning
device switches back as soon as the
sensor is no longer in the alarm state.
Labcom 220
SMS parameter steps and examples
Please take note
The SMS command must use the uppercase and must end with a blank
space. Multiple entries must be separated by a blank space. Mobile phone
numbers must always use the plus sign followed by the country code.
SMS text input are always confirmed with a reply SMS by the Labcom 220
communication unit. If no con-
firmation or notification arrives,
check the credit balance of the
SIM card or the contract term of
your mobile service provider.
Parameter setting for one or multiple user
mobile phone numbers
TEL +49_ _ _ _ _ _ _ _ _ _ _ +49_ _ _ _ _ _ _ _ _ _ _
Mobile phone number with plus sign and country code
Parameter setting for device or system name
NAME Grease separator 123
Max. 20 characters
Parameter setting for current date and time
CLOCK 31.01.2016 15:00
Time: hh:mm
Date: TT.MM.JJJJ
Parameter setting for digital input
DI1 Grease alarm On Off 0 5
Alarm delay in sec., max. 34000 s
Input status definition, default: 0
Text to disable alarm, max. 20 characters
Text to enable alarm, max. 20 characters
Alarm name, max. 20 characters
Parameter setting for cyclic status notification
TXD 7 14:00
Time: hh:mm
Status notification, 1: daily, 7: weekly
