Moen ARC-4200 Installation Manual

Please Contact Moen First
For Installation Help, Missing or
Replacement Parts
(USA)
1-800-BUY-MOEN (1-800-289-6636)
Mon - Fri 8:00 AM to 7:00 PM, Eastern
Sat. 9:00 AM to 3:00 PM Eastern
WWW.MOEN.COM
(Mexico)
011 52 (800) 718-4345
Mon - Fri 8:00 AM to 8:00 PM, Eastern
Sat. 8:00 AM to 7:30 PM Eastern
WWW.MOEN.COM.MX
(Canada)
1-800-465-6130
Mon - Fri 7:30 AM to 7:00 PM, Eastern
WWW.MOEN.CA
Safety Instructions:
1. This controller is rated for 120V/12 AMPS (1 HP) maximum and must be installed according to national, state, and
local electrical code requirements. Consult with a local code professional for the appropriate requirements and
additional safety information.
2. DANGER - Do not exceed the electrical rating of the controller or the electrical supply.
3. DANGER - To reduce the risk of injury, do not permit children to use this product unless they are closely supervised
at all times.
4. The controller must be oriented to provide drainage of electrical component compartment.
Installation Guide

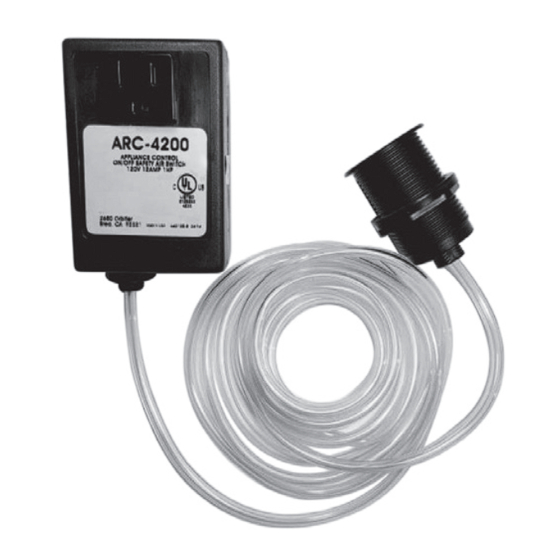

Garbage Disposal Air Switch Controller
Model: ARC-4200
Typical Installation:
AS-4201 AIR AS-4201 AIR
SWITCH BUTTON SWITCH BUTTON
GARBAGE GARBAGE
DISPOSAL DISPOSAL
PLUG PLUG
10' 1/8" 10' 1/8"
AIR TUBING AIR TUBING
Garbage Disposal and Air Switch Button Sold Separately
Air Switch Buttons: AS-4201-CH, AS-4201-SN, AS-4201-BR, AS-4201-WH,
AS-4201-AL, AS401-BIS
ARC-4200 ARC-4200
CONTROLLER BASE CONTROLLER BASE
INS10534
