Agent Headsets Agent EHS 550 Setup Manual

Agent EHS 550
DECT Connection Box

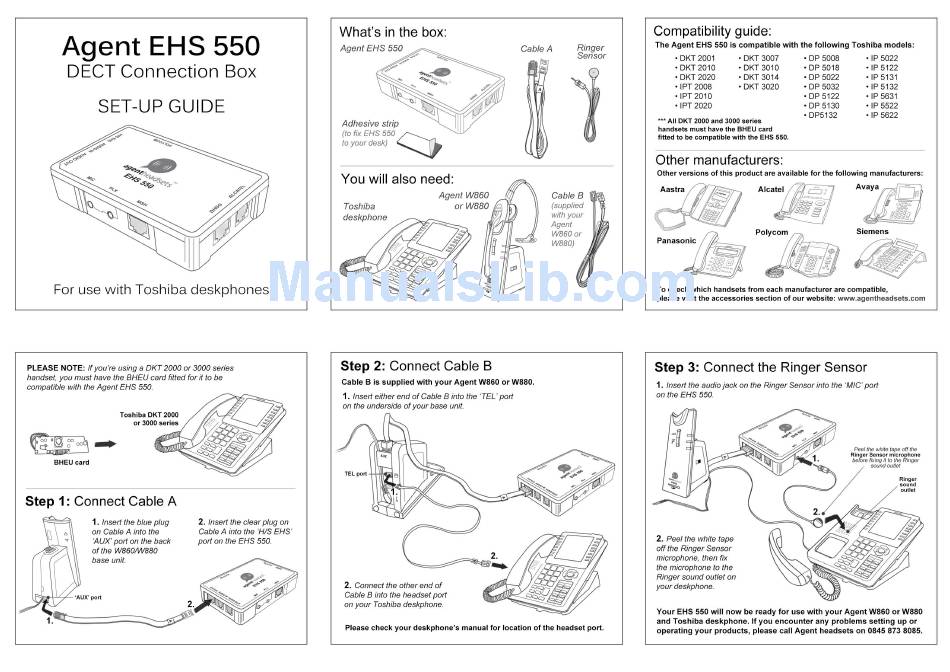

SET-UP GUIDE
For use with Toshiba deskphones
PLEASE NOTE: If you 're using a DKT 2000 or 3000 series
handset, you must have the BHEU card fitted for it to be
compatible with the Agent EHS 550.
~
...
BHEU card
Step 1: Connect Cable A
1.
Insert the blue plug
on Cable A in to the
'AUX' port on the back
of the
W860/WBBO
base unit.
2.
Insert the clear plug on
Cable A into the 'HIS EHS '
port on the EHS 550.
What's in the box:
Cable A
Ringer
Sensor
Adhesive strip
(to fix EHS 550
~
to your desk)
~
You will also need:
Toshiba
deskphone
Step 2: Connect Cable B
Cable B is supplied with your Agent W860 or W880.
1.
Insert either end of Cable B in to the 'TEL ' port
on the underside of your base unit.
2.
Connect the other end of
Cable B in to the headset port
on your Toshiba deskphone .
(supplied
with your
Agent
W860 or
WBBO)
Please check your deskphone's manual for location of the headset port.
Compatibility guide:
The Agent EHS 550 is compatible with the following Toshiba models :
• DKT 200 1 • DKT 3007
• DKT 20 10 • DKT 30 10
• DKT 2020 • DKT 30 14
• IPT 2008 • DKT 3020
• IPT 2010
• IPT 2020
••• All DKT 2000 and 3000 series
handsets must have the BHEU card
fitted to be compatibl e with the EHS 550.
Other manufacturers:
•DP 5008 •IP 5022
•DP 5018 •IP 51 22
•DP 5022 •IP 51 31
•DP 5032 •IP 5132
•DP 5122 •IP 563 1
•DP 51 30 •IP 5522
• DP5132 •IP 5622
Other versions of this product are available for the following manufacture rs :
Siemens
To check which handsets from each manufacturer are compatible,
please visit the accessories section of our website : www.agentheadsets.com
Step 3: Connect the Ringer Sensor
1.
Insert the audio jack on the Ringer Sensor into the 'MIC ' port
on the EHS 550.
2.
Peel the white tape
off the Ringer Sensor
microphone, then fix
the microphone to the
Ringer sound outlet on
your deskphone .
Your EHS 550 will now be ready for use with your Agent W860 or W880
and Toshiba deskphone. If you encounter any problems setting up or
operating your products , please call Agent headsets on 0845 873 8085.
