Smart Cabling & Transmission TPP016VPD User Manual

16 Channel Video, Power CCTV Hub with AC Power Supply in 1U
ITEM NO.: TPP016VPD, TTP111VP, TTP111VP3, TTP111VPC, TTP111VPD-RJ45
TTP111HDP, TTP111HDP-L, TTP111HDPD-RJ45, PC500,PC1A
The 16-channel TPP016VPD CCTV hub is using standard CAT5e & RJ45 structured building wiring
to carry video, power and data for simplifying short range installation by centralizing power and
reducing installation labor costs. The built in 10AMP AC24V power supply could support
at-distance camera loads up to 500mA per channel. Each port built in switch to set the unit to
power 2 pairs or 3 pairs. To use with TTP111VP3/ TTP111VPC/TTP111VPD-RJ45 at regular
analog camera side or using with TTP11HDP/TTP111HDP-L/TTP111HDPD-RJ45 at
HD-TVI/AHD/HDCVI camera side to send video, power or data for cable runs 300 meters (max.)

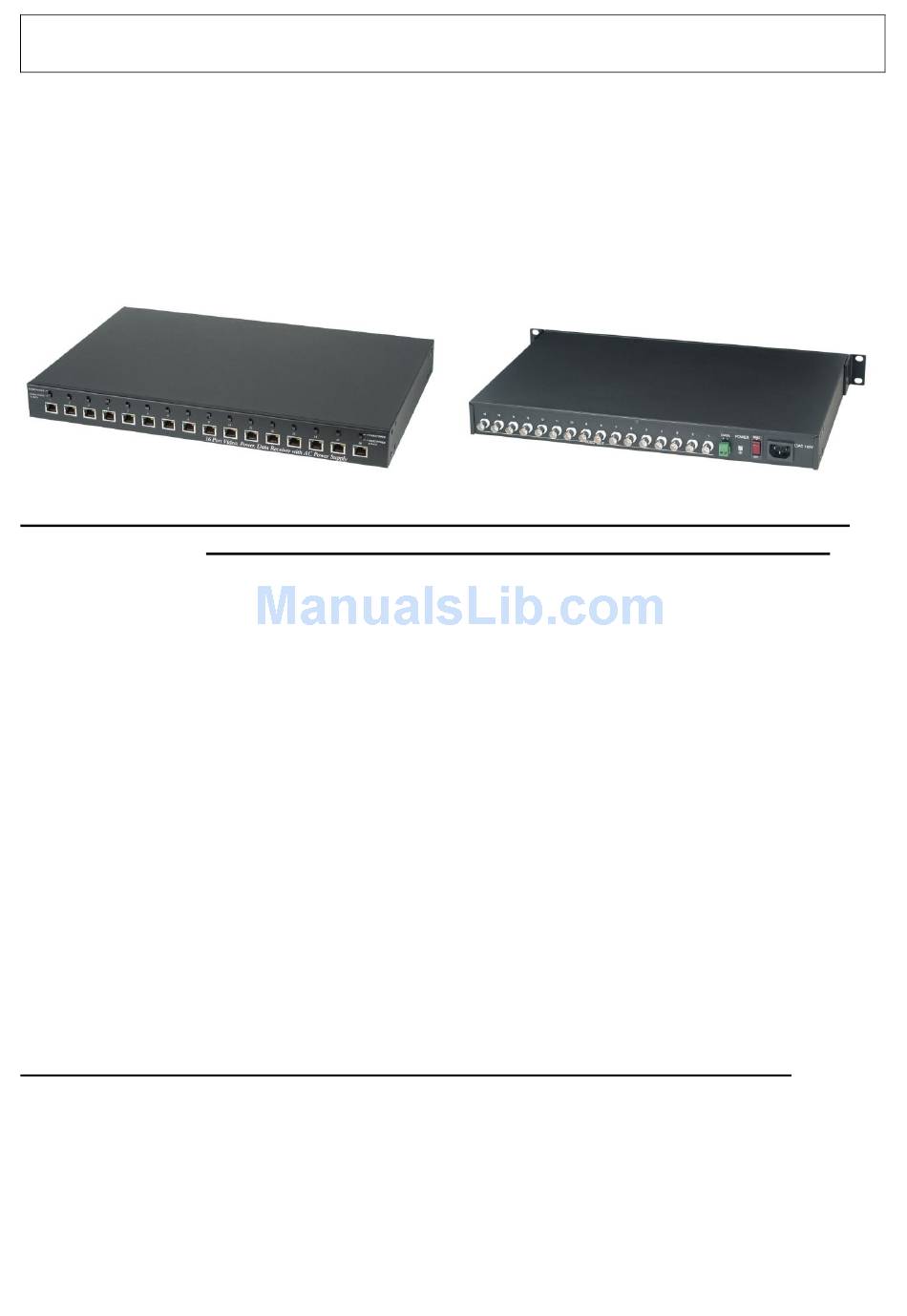

TPP016VPD 16 Channel Passive Video, Power, Data CCTV Hub
TPP016VPD CCTV hub Integrate and send video and power, data over a single 4 pairs

CAT5 cable up to 300 meters.
Video support: Composite Video, HD-TVI, AHD, HDCVI.

Built in switch at each port to set unit for "2 pair power + 1 pair data" mode or "3 pairs

power" mode.
Power cameras via 2 or 3 pairs UTP cable for variety distances (please refer to below

power distance chart).
Use with video& power Balun TTP111HDP/TTP111HDP-L(AC24V camera) or add model no:

PC500/PC1A power converter (AC24V to DC12V regulated) at DC12V camera side, to
send video and power only.
Use with TTP111HDPD-RJ45 video, power, data combiner at the camera side, to send

video, power and data.
10 Amp AC24V power, each port output current up to 1.1Amp for camera, max up to

10Amp.
Built in "no fuse breaker" to avoid current overload.

Built in PTC (positive temperature coefficient) for short protection and auto rework on

each port.
Perfect cable management solution from the camera to the wiring station, control room.

Optional Model: Work with Regular Analog Camera
TTP111VP Video & Power Transceiver for AC24V Camera (2 pairs)
Video (one pair) and remote power (2pairs) transmission over one 4pairs CAT5 cable.

Transmission range up to 300 meters (max.)

BNC for video, power cord for power, RJ45 female output for video and power.

Eliminates costly coaxial cables and minimize installation time.

 Use with TPP016VPD for 16 channel video, power over professional CAT5 RJ45 connection
Rack Mounting Hub
with AC Power Supply in 1U Rack Mounting Hub
.
