VIGILANTE
8 Field Selectable Sequences
All Common ISA Sequences
4 or 8-Point (Channel) Monitoring
Free Replaceable Message Labels
Type 4X, NEMA 4X, IP65 Front
Universal Power Supply 85-265 VAC
12-36 VDC/12-24 VAC Power Option
Built-In 85 dB Horn
2 SPDT Relays
24 VDC Isolated Power Supply (AC Models)
Multiple-Unit First-Out Indication
3 Pushbutton Operation
Sunlight Readable Indication
PRECISION DIGITAL CORPORATION
89 October Hill Road • Holliston MA 01746 USA
Tel (800) 343-1001 • Fax (508) 655-8990

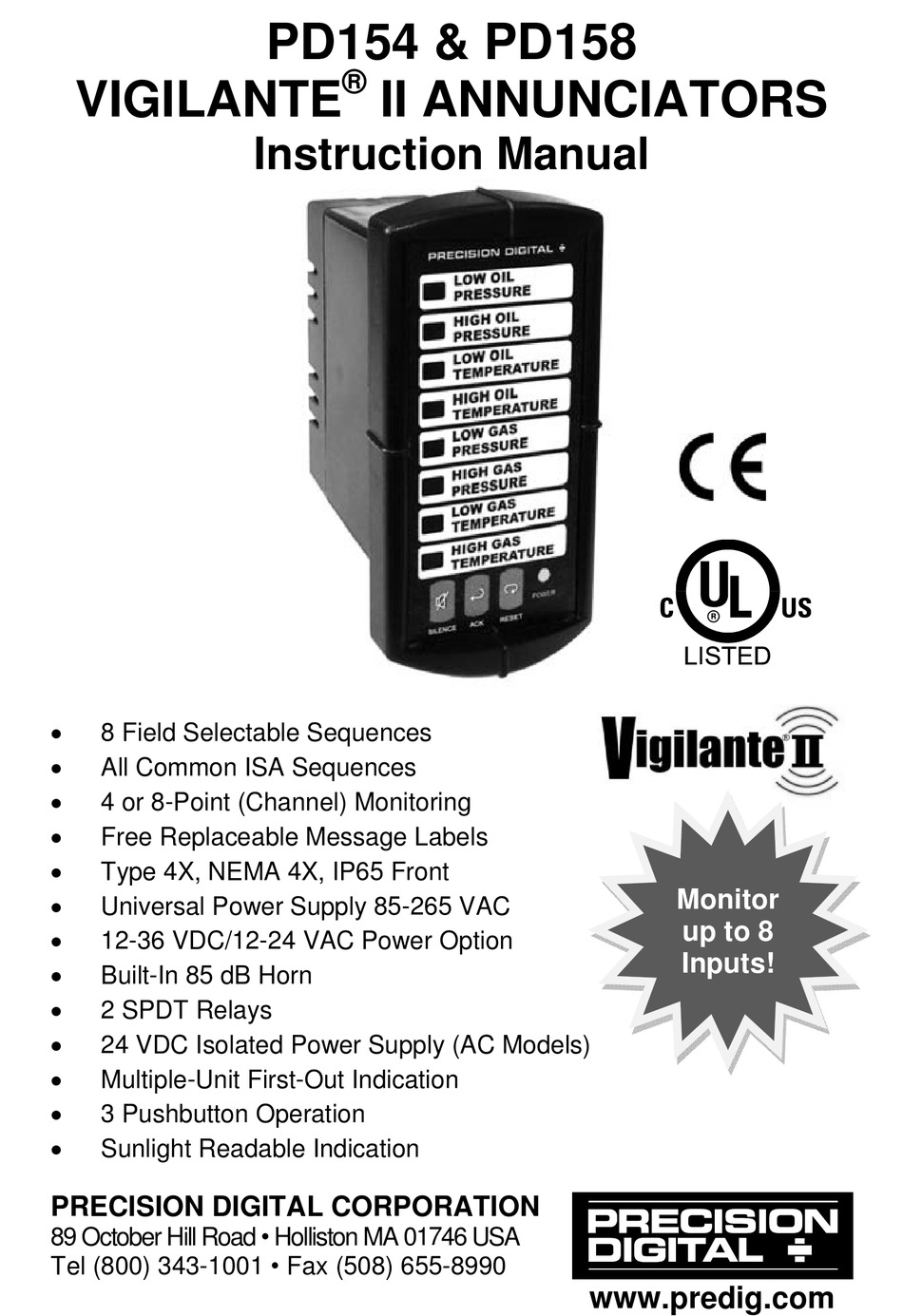

PD154 & PD158
®
II ANNUNCIATORS
Instruction Manual
Monitor
up to 8
Inputs!
www.predig.com
Advertisement
Table of Contents
Related Manuals for Precision Digital Corporation VIGILANTE II
Summary of Contents for Precision Digital Corporation VIGILANTE II
- Page 1 24 VDC Isolated Power Supply (AC Models) Multiple-Unit First-Out Indication 3 Pushbutton Operation Sunlight Readable Indication PRECISION DIGITAL CORPORATION 89 October Hill Road • Holliston MA 01746 USA Tel (800) 343-1001 • Fax (508) 655-8990 www.predig.com...
-
Page 2: Introduction
The Vigilante II has two SPDT relays that can be used for additional external alarm indication, additional audible devices, or for process control. -
Page 3: Ordering Information
® PD154 & PD158 Vigilante II Annunciators Instruction Manual ORDERING INFORMATION 85-265 VAC* 12-36 VDC* Description Model Model ® PD154-6R2-1 PD154-7R2-0 Vigilante II 4-Point Annunciator ® PD158-6R2-1 PD158-7R2-0 Vigilante II 8-Point Annunciator *All models may be powered from AC or DC, see Specifications for details. -
Page 4: Quick Setup Guide
® PD154 & PD158 Vigilante II Annunciators Instruction Manual QUICK SETUP GUIDE The following overview details how to set up the annunciator for most common uses. Sequence Selection The two most common sequences are ISA A and ISA F2A. Select the sequence using the four-position switch on the rear of the unit above the signal connector. -
Page 5: Basic Connections
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Basic Connections All connections are made to removable screw terminal connectors located at the rear of the instrument. For complete connection details, see page 13. Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. -
Page 6: Table Of Contents
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Table of Contents INTRODUCTION ------------------------------------------------------------ 2 ORDERING INFORMATION --------------------------------------------- 3 QUICK SETUP GUIDE ---------------------------------------------------- 4 Sequence Selection -------------------------------------------------------------- 4 NO/NC Inputs ---------------------------------------------------------------------- 4 Basic Connections --------------------------------------------------------------- 5 ... - Page 7 ® PD154 & PD158 Vigilante II Annunciators Instruction Manual Relay 2 Operation ------------------------------------------------------------ 24 Relay Fail-Safe ---------------------------------------------------------------- 24 Programming Relay Fail-Safe --------------------------------------------- 24 Relay Fail-Safe Programming Example -------------------------------- 25 Relay Operation Overview ------------------------------------------------- 26 Audible Horn Enable/Disable ----------------------------------------------- 27 ...
-
Page 8: Specifications
® PD154 & PD158 Vigilante II Annunciators Instruction Manual SPECIFICATIONS Except where noted all specifications apply to operation at +25°C. General DISPLAY PD154; Four red LED channel/point indicators. PD158; Eight red LED channel/point indicators. One green LED power indicator. ALARM Custom printed adhesive clear labels. -
Page 9: Inputs
® PD154 & PD158 Vigilante II Annunciators Instruction Manual TIGHTENING Screw terminal connectors: Gray:4.5 lb-in (0.5 Nm) TORQUE Green: 5 lb-in (0.5 Nm) OVERALL 4.68" x 2.45" x 4.19" (62 mm x 119 mm x 106 mm) DIMENSIONS (H x W x D) WEIGHT 9.6 oz (272 g) WARRANTY... -
Page 10: Compliance Information
® PD154 & PD158 Vigilante II Annunciators Instruction Manual COMPLIANCE INFORMATION Safety UL LISTED USA and Canada UL 508 Industrial Control Equipment UL FILE NUMBER E160849 FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel gasket provided LOW VOLTAGE EN 61010-1:2001 DIRECTIVE Safety requirements for measurement, control, and laboratory use... -
Page 11: Safety Information
® PD154 & PD158 Vigilante II Annunciators Instruction Manual SAFETY INFORMATION CAUTION: Read complete WARNING: Risk of instructions prior to electric shock. installation and operation of the instrument. WARNING Hazardous voltages exist within enclosure. Installation and service should be performed only by trained service personnel. -
Page 12: Installation
® PD154 & PD158 Vigilante II Annunciators Instruction Manual INSTALLATION There is no need to remove the instrument from its case to complete the installation, wiring, and setup. Unpacking Remove the instrument from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier. If any part is missing or the unit malfunctions, please contact your supplier or the factory for assistance. -
Page 13: Connections
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Connections All connections are made to removable screw terminal connectors located at the rear of the instrument. Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety regulations. -
Page 14: Signal Connections
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Signal Connections Input signal connections are made to a 14-terminal connector at terminals labeled INPUT CHANNELS on Figure 2. The COM (common) terminal is the return for all types of input signals. Normally Open (NO) or Normally Closed (NC) Switches The following figure shows an example of normally open or normally closed contact inputs. -
Page 15: Relays And 24 V Output Connections
® PD154 & PD158 Vigilante II Annunciators Instruction Manual SIGNAL CONNECTOR Transistor Figure 5. Open Collector NPN Transistor Inputs Logic Level Inputs Each logic level input is connected to an input channel with common as the return. Logic level inputs are factory set for normally high active logic level inputs. For normally low input logic levels, program inputs for normally closed input operation, see page 22. -
Page 16: Switching Inductive Loads
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Switching Inductive Loads The use of suppressors (snubbers) is strongly recommended when switching inductive loads to prevent disrupting the microprocessor’s operation. The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. -
Page 17: External Pushbutton Connections
® PD154 & PD158 Vigilante II Annunciators Instruction Manual External Input Types The external Silence (SIL), Acknowledge (ACK), and Reset (RST) inputs may be: contacts (i.e. pushbuttons, relay contacts, etc), open collector inputs (OC), or TTL signals. However, throughout this manual, the term “pushbutton”... -
Page 18: Setup And Programming
® PD154 & PD158 Vigilante II Annunciators Instruction Manual UNIT 1 UNIT 2 UNIT 3 Figure 10. System with Multiple Units Share First-Out SETUP AND PROGRAMMING Overview There are no jumpers involved in the setup process of the annunciator. The sequence selector switch, located on the rear of the annunciator above the signal connector must be set accordingly for annunciator sequence desired. -
Page 19: Front Panel Pushbuttons And Status Led Indicators
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Front Panel Pushbuttons and Status LED Indicators Button Description Silence Horn Acknowledge Alarm Reset Clear Input Channels Description Channel status Indicators indicators Green Indicates power is on. Indicator POWER 1. Quantity 4 red LED on the PD154 SILENCE RESET Quantity 8 red LED on the PD158... -
Page 20: Full Function Test
After 3 seconds, the alarms may be cleared as normal for the selected sequence. Multiple Unit First-Out Indication If multiple Vigilante II annunciators are connected for multiple unit shared first-out indication (see page 17), only one input from all connected devices will display as a first-out alarm. -
Page 21: Annunciator Sequence Selection
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Annunciator Sequence Selection The alarm sequence is selected with the DIP switch located above the signal connector. Sequence Selector Switch Changing sequences while the unit is on will restart the unit. Sequence Programming Set switches to the positions shown below for the desired sequence. -
Page 22: Normally Open/Normally Closed Input Setup
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Normally Open/Normally Closed Input Setup Each input channel is independently programmed for a normally open or normally closed input. All channels are initially programmed at the factory for normally open inputs. Alarm Conditions for normally open inputs: A closed contact between an input channel and common will cause an alarm condition. -
Page 23: No/Nc Programming Example
® PD154 & PD158 Vigilante II Annunciators Instruction Manual NO/NC Programming Example The following is an example of NO/NC setup. Input channel 1 and 2 are changed from the default settings of NO to be NC inputs. Press and hold ACK and RESET for 3 seconds. When all LEDs cycle, release. -
Page 24: Relay Operation
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Relay Operation Relays 1 and 2 have standard functionality as defined below. Relay 1 Operation Relay 1 enters alarm state when there is a new alarm. This relay will clear when the alarm is acknowledged, generally by pressing the ACK pushbutton. -
Page 25: Relay Fail-Safe Programming Example
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Relay Fail-Safe Programming Example The following is an example of relay fail-safe setup. Relays 1 and 2 are changed from the default settings of normal operation to fail-safe operation. Press and hold ACK and RESET for 3 seconds. When all LEDs cycle, release. -
Page 26: Relay Operation Overview
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Relay Operation Overview The following figure illustrates the operation of the relays. Relay 1 Relay 2 Relay 1 Relay 2 Alarm Alarms Occurance Pressed Cleared Relay On: Relay is energized Relay Off: Relay is de-energized. Alarm Occurrence: A new alarm occurs when there is no previous unacknowledged alarm. -
Page 27: Audible Horn Enable/Disable
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Audible Horn Enable/Disable The annunciator contains an audible internal horn. This horn may be disabled with the rear-mounted switch located above the signal connector. To enable the horn, move switch 4 to the ON position. To disable the horn, move switch 4 to the OFF position. -
Page 28: No Lock-In Sequence Option
® PD154 & PD158 Vigilante II Annunciators Instruction Manual No Lock-In Sequence Option ISA sequence option 4 no lock-in, may be added to any sequence. Momentary alarms will clear without the ACK pushbutton. Sequences A, F1A, F2A, and F3A will automatically clear any momentary alarm. Sequences M, F1M, and F2M will clear all momentary alarms when the RESET pushbutton is used, regardless of what channels have previously been acknowledged with ACK. -
Page 29: Mounting Dimensions
® PD154 & PD158 Vigilante II Annunciators Instruction Manual MOUNTING DIMENSIONS 3.61" (92mm) 4.68" (119mm) 2.50" (64mm) Figure 13. Case Dimensions – Side View 1.76" (45mm) 2.45" (62mm) 3.2" 0.59" (81mm) (15mm) 3.6" (91mm) Figure 14. Case Dimensions – Top View... -
Page 30: Troubleshooting
® PD154 & PD158 Vigilante II Annunciators Instruction Manual TROUBLESHOOTING If the annunciator is not working as expected, refer to the recommendations below. Troubleshooting Tips Symptom Check/Action Check power at power connector Power LED off Check: Audible alarm does not sound Rear switch position 4 is ON. -
Page 31: Full Sequence Descriptions
® PD154 & PD158 Vigilante II Annunciators Instruction Manual FULL SEQUENCE DESCRIPTIONS The following section describes the operation of the various sequences ® available in the Vigilante II alarm annunciator. Features Acknowledge Pushbutton: Momentary alarms will not clear until the alarmed channels have been acknowledged with the ACK pushbutton. -
Page 32: Isa Sequence A
® PD154 & PD158 Vigilante II Annunciators Instruction Manual ISA Sequence A Acknowledge Pushbutton and Automatic Reset Momentary Alarm Maintained Alarm Condition Horn Condition Horn Normal Normal Alert Flash Alert Flash Normal Flash ACK Pushbutton ACK Pushbutton Acknowledge Steady Acknowledge Normal Sequence A Sequence A Flowchart... -
Page 33: Isa Sequence F2A
® PD154 & PD158 Vigilante II Annunciators Instruction Manual ISA Sequence F2A First-Out Indication with Acknowledge Pushbutton and Automatic Reset Momentary Alarm Maintained Alarm Condition Horn Condition Horn Pt Next Pt Pt Next Pt Normal Normal Alert Flash Steady Alert Flash Steady Normal Flash Steady... -
Page 34: Isa Sequence F1A
® PD154 & PD158 Vigilante II Annunciators Instruction Manual ISA Sequence F1A First-Out Indication with Acknowledge Pushbutton, No Lock-In of Subsequent Alarms, and Automatic Reset Momentary Alarm Maintained Alarm Condition Horn Condition Horn Pt Next Pt Pt Next Pt Normal Normal Flash Steady Flash Steady... -
Page 35: Isa Sequence F3A
® PD154 & PD158 Vigilante II Annunciators Instruction Manual ISA Sequence F3A First-Out Indication with Acknowledge Pushbutton, Automatic Reset, and First-Out Reset Pushbutton Momentary Alarm (RESET before ACK) Condition Horn Next Pt Normal Intermittent Flash Fast Flash Alert Normal Intermittent Flash Fast Flash RESET Pushbutton Fast Flash... - Page 36 ® PD154 & PD158 Vigilante II Annunciators Instruction Manual Maintained Alarm (ACK before RESET) Condition Horn Next Pt Normal Intermittent Flash Fast Flash Alert ACK Pushbutton Acknowledge Slow Flash Steady RESET Pushbutton Steady Steady Out Reset Normal Sequence F3A Flowchart Sequence F3A Switch Positions Condition...
-
Page 37: Input Follower Indication
® PD154 & PD158 Vigilante II Annunciators Instruction Manual Input Follower Indication Simple Indication Switch Positions Condition Horn Normal Alert Steady Normal ISA Sequence M Acknowledge and Reset Pushbuttons Momentary Alarm Maintained Alarm Condition Horn Condition Horn Normal Normal Flash Flash Alert Alert... -
Page 38: Isa Sequence F1M
® PD154 & PD158 Vigilante II Annunciators Instruction Manual ISA Sequence F1M First-Out Indication with Acknowledge and Reset Pushbuttons, and No-Lock-In of Subsequent Alarms Momentary Alarm Maintained Alarm Condition Horn Condition Horn Pt Next Pt Pt Next Pt Normal Normal Alert Flash Steady Alert... -
Page 39: Isa Sequence F2M
® PD154 & PD158 Vigilante II Annunciators Instruction Manual ISA Sequence F2M First-Out Indication with Acknowledge and Reset Pushbuttons Momentary Alarm Maintained Alarm Condition Horn Condition Horn Pt Next Pt Pt Next Pt Normal Normal Alert Flash Steady Alert Flash Steady Flash Steady ACK Pushbutton Normal... - Page 40 ® PD154 & PD158 Vigilante II Annunciators Instruction Manual How to Contact Precision Digital For Technical Support please Call: (800) 610-5239 or (508) 655-7300 Fax: (508) 655-8990 Email: support@predig.com For Sales Support or to place an order please Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990 Email: sales@predig.com...
