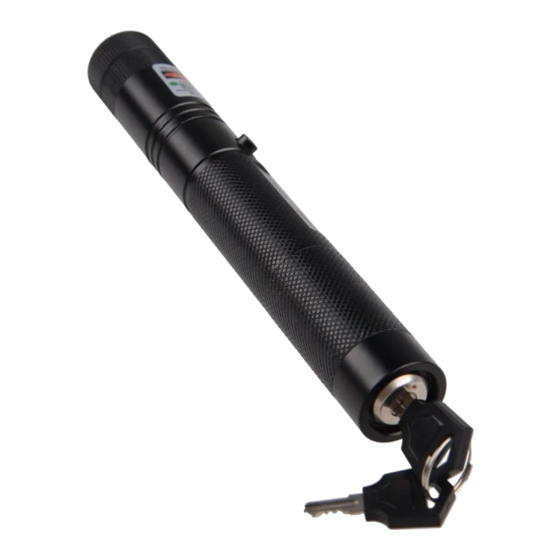

303 Prome Series Laser Pointer Manual
① Install star cap to project patterns, and take off the be a single dot
laser pointer.
② On/Off button.
③ Load batteries here and lock the laser by keys.
④ Mind the battery type and direction.
l
Green laser: 2x16340 batteries or 1x18650 battery. Positive side face
to the key lock.
Blue laser: 2x16340 batteries. Positive side face to the key lock.
l
l
Red laser and Violet laser: 2x16340 batteries or 1x18650 battery.
Positive side face to the spring.
Technical Specs
Name
Size
Laser Class
Laser Type
Wavelength
405nm violet
Output Power
Beam
Divergence
facebook @ laserpointerstore
450nm blue
100mw
1300mw
3.6mRad
3.6mRad
www.laserpointerstore.com
Prome 303 Laser Pointer
15*2*2 cm
Class 4
Direct Diode
532nm green
<80mw
2.4mRad
Made in China
650nm red
200mw
1.2mRad
Advertisement
Table of Contents
Summary of Contents for PROMETHEUS Prome 303
- Page 1 Blue laser: 2x16340 batteries. Positive side face to the key lock. Red laser and Violet laser: 2x16340 batteries or 1x18650 battery. Positive side face to the spring. Technical Specs Name Prome 303 Laser Pointer Size 15*2*2 cm Laser Class Class 4...
- Page 2 4mm At Aperture 4mm At Aperture 4mm At Aperture 1.5mm At Aperture Beam Diameter <20mm at 10 <8mm at 10 <20mm at 10 meters <13mm at 10 meters meters meters Laser Body Aircraft-Grade Aluminum Laser Finish Black Modes Single On/Off Mode Power Supply 2*16340 or 1*18650 3.7V Lithium-Ion Rechargeable Battery Weight...
