CLARIUS LT User Manual

Clarius L T
User Guide
www.gjd.co.uk info@gjd.co.uk
Unit 2 Birch Business Park, Whittle Lane, Heywood, Lancashire, OL10 2SX
DESCRIPTION
Entry level infrared illuminators for CCTV, featuring state of the art
technology and installation friendly design.
• Energy efficient, low voltage operation for quick and easy

installation

• Latest high efficiency SMT Dual Core LEDs
electronic control circuitry deliver improved thermal management,
long life and low cost of ownership
self cleaning lens coating technology
• CleanLITE ®
• Semi covert
• Built in photocell

Specification

Electronics
High efficiency surface mount
Dual Core LEDs™ with advanced
current limited integral control
circuitry
Beam Angles 30° or 90° models available
Lens/Beam Pattern The illuminator should be matched
to the scene and the camera lens
focal length
Wavelength
850nm
Expected Life 10 years
Consumption Clarius IS / 10W
Clarius IM / 20W
Input Voltage 12-32V DC
Operating Temp. -50° to 50°C (-58° to 122°F)
Environmental
IP67
Construction Robust high quality aluminium
extrusion
Front Window Polycarbonate high transmittance
(Vandal-proof) with CleanLITE
technology
Dimensions Clarius IS / 68 x 110 x 78mm
Clarius IM / 114 x 110 x 78mm
Weight
Clarius IS / 750g (1.65lbs)
Clarius IM / 1.05Kg (2.3lbs)
Power Cable 3m (9ft).
Mount Black powder coated stainless
steel wall mount. Adjustable via M6
Allen Key (included)
®
+44 (0) 1706 363 998
with advanced
®
®
Installation
Note: The illuminator is low voltage 12-32V DC
Optimum results are achieved by setting up at night and
viewing the results on a monitor.
1. Attach the illuminator mount to pan/tilt unit, wall or camera
housing.
2. Connect the lamp to a suitable low voltage supply. Ensure
that the polarity is correct
3. Commission the mains supply, camera and monitoring
equipment
4. Adjust the pan angle of the illuminator to match the
camera field of view
5. Adjust the vertical alignment by loosening the side bolts
(one on each side of the main body) to maximise the results
6. Tilt the lamp downwards until the rear part if the required
field of view is saturated with light, as viewed on the
monitor.
7. SLOWLY or GRADUALLY tilt the lamp upwards until the far
part of the required field of view is illuminated correctly on
the monitor.
Red: +ve
Black: -ve

Power Connections

Photocell

The photocell is designed to automatically switch the lamps
on at a dusk and turn of at dawn. A high degree of hysteresis
is incorporated to void on/off switching in marginal conditions.
The unit is factory set at approximately 30 Lux On and 70 Lux
Off.

Disabling the photocell

To disable the photocell, cover the rear photocell window. This
will make the lamp turn on at all times.

Safety

WARNING: When the lamp is running, it is hot to touch. Before
touching switch off the illuminator and allow to cool for a
minimum of 10 minutes.
Do not stare directly into the lamp at a distance of less then
1.8m.

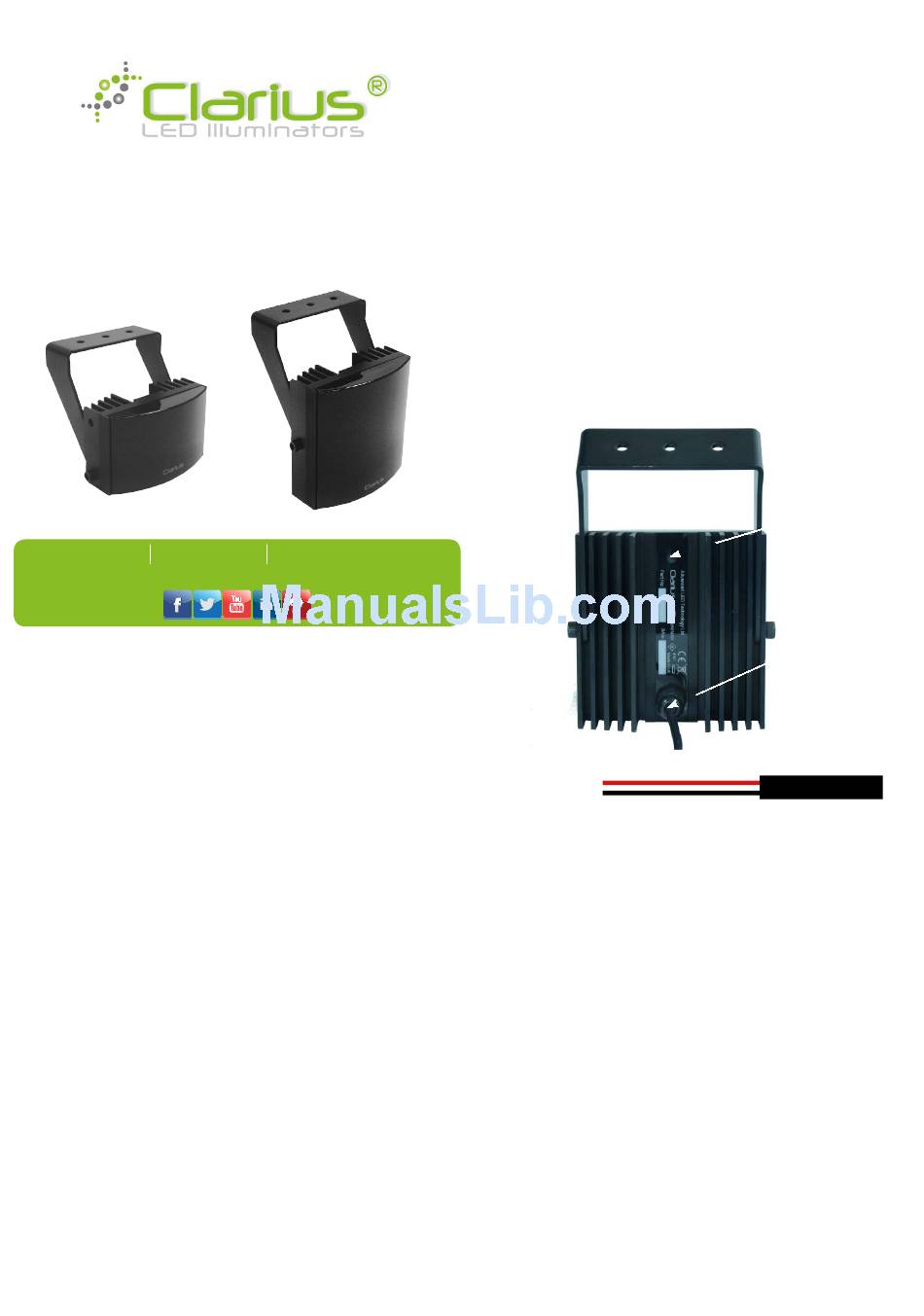

Photocell
window
powercord
