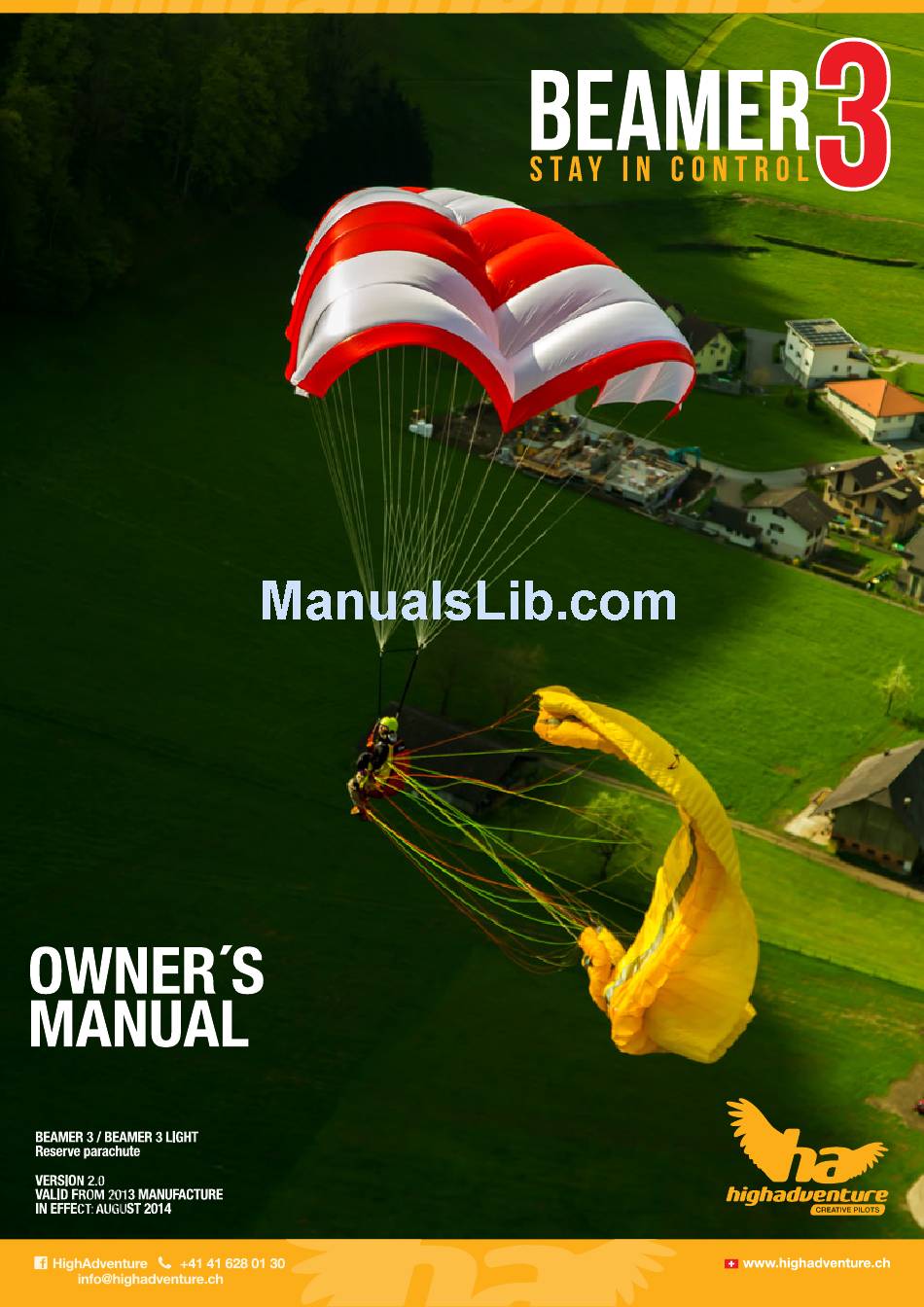

HIGHADVENTURE BEAMER 3 Owner's Manual

HIGHADVENTURE BEAMER 3 Owner's Manual

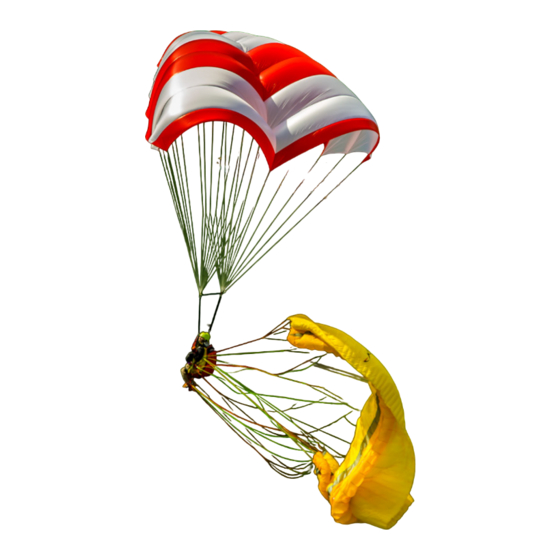

Reserve parachute

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEAMER 3 and is the answer not in the manual?

Questions and answers

Сергий
May 16, 2025

Подходит ли Beamer 3 для тандема Джамбо 5

Subscribe to Our Youtube Channel

Summary of Contents for HIGHADVENTURE BEAMER 3

  • Page 2: Table Of Contents

    This manual must be read before you install the reserve! This manual tells you how to use your reserve correctly. If you have any questions about using the reserve you should contact High Adventure direct for an answer. If you need a professional to pack or repair your reserve please contact your dealer or High Adventure. INHALT Safety information ..........................
  • Page 3: Safety Information

    Safe operation can only be guaranteed if the reserve has been installed correct- TECHNICAL DATA Beamer 3 Beamer 3 light Beamer 3 S Beamer 3 light S Area: 41.75 m² 41.75 m² 35.47 m²...
  • Page 4: Intended Purpose

    Certified operating life: 12 years, extended to 14 years by inspections every 12 months. Caution: the certified life depends very much on the style of use and quality of care of your Beamer 3 (acro, test openings etc. can significantly reduce the reserve’s life). The Beamer 3 light is not suitable for use in the acro disci- pline.
  • Page 5: Storing

    Pay special attention to the following advice: • Do not leave the reserve out in the sun (UV radiation) unnecessarily. • A wet or damp reserve should be completely unpacked and allowed to dry inside at room temperature, or outside in the shade. •...
  • Page 6: Packing And Installing Instructions

    Fixing to the harness The Beamer 3 can be stowed in a front container or a harness reserve compartment. The reserve risers marked “L” & “R” will be fixed on the relevant left and right (in the direction of flight) hand sides of the harness on the main carabiners (front container) or shoulder harness loops.
  • Page 7 Pic. 3 Art. Nr. 000345 extensions for Beamer 3 Dyneema risers & Art. Nr. 000140 O-Ring 22mm Pic. 4 Pic. 5 Pic. 6 Pic. 7 Pic. 8 Pic. 9 O-Ring 2 turns Pic. 10 Pic. 11...
  • Page 8 The braked opening setting must be set before packing. When the brake handles are fixed in their correct posi- tions the brake lines are shortened on the Beamer 3 / Beamer 3 light by approx. 42 cm and around 25 cm on the Beamers in small size.
  • Page 9 Connect the reserve risers to the end of your packing surface or directly to the harness (Pic. 17) and stretch it out to its full length. The Beamer 3 should be lying similar to a paraglider pre-takeoff layout - (wing lying on its top surface).
  • Page 10 Pic. 20 Pic. 21 Pic. 22 Pic. 23 Pic. 24 Pic. 25 Pic. 26 Pic. 27 Pic. 28...
  • Page 11 Pic. 29 Pic. 30 Pic. 31 Pic. 32-33 Pic. 34 Pic. 35 Pic. 36 Pic. 37...
  • Page 12 Pic. 38 Pic. 39 Pic. 40 Pic. 41 Pic. 42 Pic. 43 Pic. 44 Pic. 45 Pic. 46...
  • Page 13 Pic. 47 Pic. 48 Pic. 49 Folding the wing halves Lay a wing half on top of its opposite side and put its lines on the other side of the line separator, making sure that the middle lines are not disturbed (hold with weight). Pic.
  • Page 14 Pic. 56 Stretch out panel #1 Pic. 57 Seam on the centreline Pic. 58 reduce the width of panel #1 with… Pic. 59/60 …with an S - 2 folds (for Beamer 3 small only halved) Pic. 61 Line #1 on the centreline!
  • Page 15 Pic. 62 Follow the bottom edge of Pic. 63 Put the panel #2 line in the Pic. 64 Put the line attachment the second panel line separator point on the middle lines and hold it there Pic. 65 Pic. 66 Fold panel #2 in an S Pic.
  • Page 16 Pic. 71 Line #4 in the line separa- Pic. 72 Lay panel #4 to the outside Pic. 73 Bottom edge of panel #5 and halve it (one fold) Pic. 74 Line in the separator Pic. 75-77 Fold the remaining panels up to the nose… …...
  • Page 17 Pic. 80-82 Lay the opposite wing half (taking its lines over the separator) on the other side (on top of the first wing) Pic. 83 Fold this wing exactly as Pic. 84 …as far as the Beamer Pic. 85 Check that the lines have a the first side …...
  • Page 18 Pic. 90-91 Holding the lines Pic. 92 Weighting down one wing Pic. 93 Halving the other wing half (weight) half Pic. 94 Pic. 95 Pic. 96 Pic. 97 The same for the other side Pic. 98 Pic. 99...
  • Page 19 Pic. 100 Pic. 101 Pic. 102 Lay one half on the other Pic. 103 Pic. 104 Pic. 105 Pic. 106 Pic. 107 Neat corners Pic. 108...
  • Page 20 Pic. 109 Pic. 110 Pic. 111 Avoiding line overlooping The following pictures show effective ways of avoiding overloops (overthrows). Pic. 112-115 Secure the whole bundle in the bottom panel with an elastic band...
  • Page 21 Putting the canopy and the lines in the inner container Pic. 116 Fold to length of container Pic. 117 Pic. 118 Pic. 119 Pic. 120 Pic. 121 Pic. 122 Pic. 123 Take the harness off Pic. 124...
  • Page 22 Pic. 125 Pic. 126 Pic. 127 Pic. 128 Pic. 129 Pic. 130 Pic. 131 Pic. 132 Pic. 133...
  • Page 23: Installing In A Harness Reserve Compartment

    Pic. 134-137 Fold the interconnector in half twice and secure with an elastic band Caution: The inner container is held closed by a loop in the lines, the tension exerted by the inner container bungee loop should not be too strong. This can be tested by picking the reserve up by its risers. The lines must free themselves from the bungee loop under the weight of the reserve alone.
  • Page 24: Compatibility Test

    COMPATIBILITY TEST Every new combination of reserve and harness must, after its first packing, be tested by the harness manufacturer or someone trained and qualified by him. This test of the reserve system must show that it is possible to release the reserve in the flying position without problem, and in accordance with the provisions laid down by the manufacturer.
