Summary of Contents for Innovative Concepts in Entertainment SUPER TRIVIA

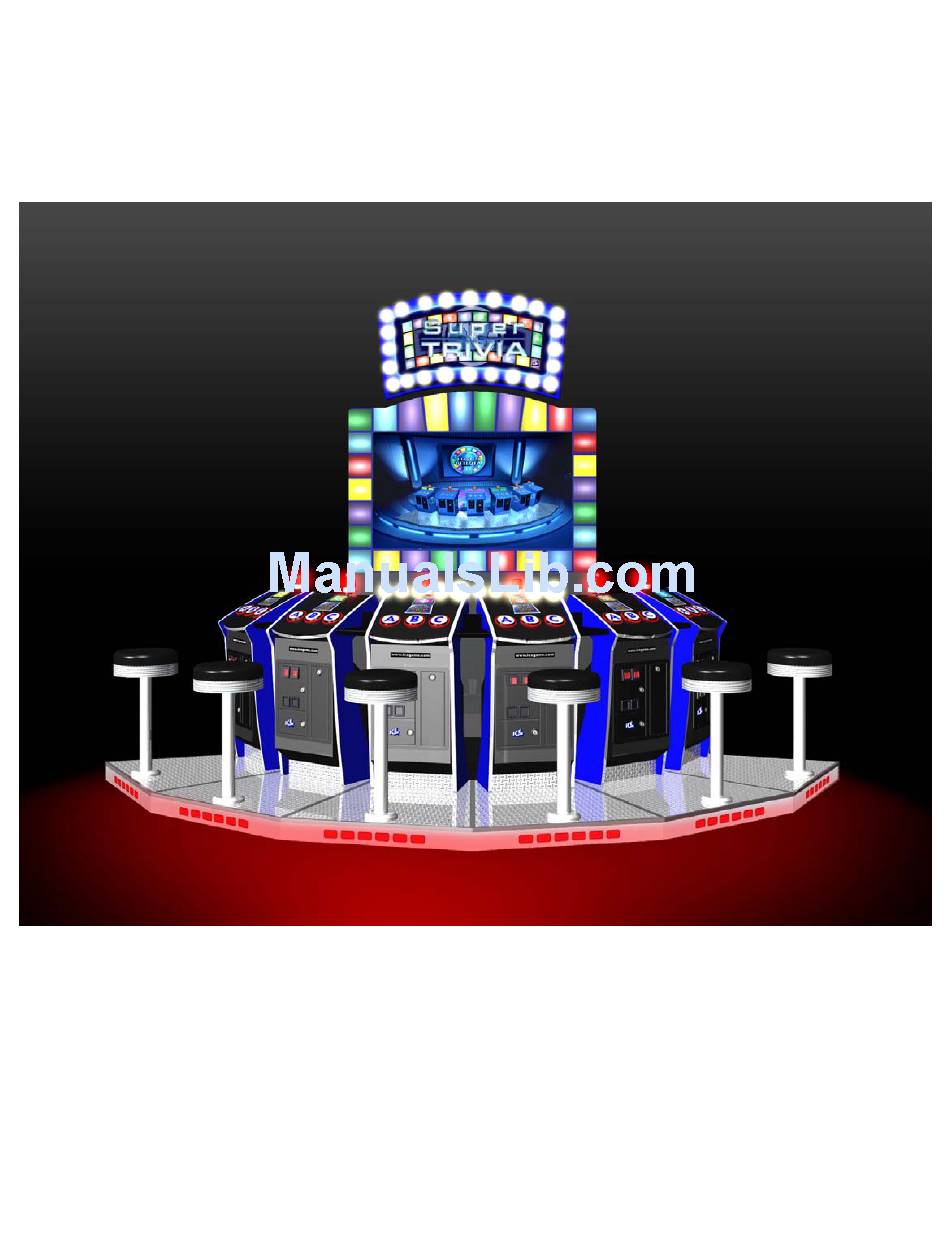

- Page 1 Super TRIVIA OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1-716-759-0360 FAX: 1-716-759-0884 E-MAIL: service@icegame.com WEBSITE: www.icegame.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GAME ASSEMBLY & SET-UP………………………….PAGE 3 - 10 SET-UP LOCATION • PODIUM SET-UP • HARNESS CONNECTIONS • CHANNEL, SHELF & BEACON LIGHT INSTALLATION • MARQUEE INSTALLATION • POWER UP CHECKLIST • POWER DOWN SEQUENCE • INTRODUCTION…………………….…………………..PAGE 9 - 12 OVERVIEW •... -
Page 3: Game Assembly & Set-Up
Before attempting to set up your Super Trivia game, please read the following instructions. Choose a suitable location for your Super Trivia game. (See sketch below for approximate area required for set-up) The approximate area required for the game is as follows:... -
Page 4: Podium Set-Up
GAME ASSEMBLY & SET-UP Podium Set-up Connecting Harness TG2059X AC Extension and TG2058X Podium Extension (short) or TG2159X AC Extension and the TG2158X Podium Extension (long) - For 8 player only Place a Locating Channel TG1010 between each po- dium as they are set in place on the floor. Do not use hardware to locate TG1010. -
Page 5: Harness Connections
GAME ASSEMBLY & SET-UP Harness Connections PODIUM #1 PODIUM #8 Run the harnesses into the lower TV cabinet as shown and connect them in order with podium #1 on the left. This picture illustrates an 8 player game. Note the podium number on the connectors at each end of the harness. -
Page 6: Channel, Shelf & Beacon Light Installation
GAME ASSEMBLY & SET-UP Channel, Shelf & Beacon Light Installation Attach the Shelf Assembly TG3060X to the Bracket, Attach the Wireway Base Channel TG1013 to the Wire- Playfield Support CG1012 with qty 4 way Slide Cannel TG1018 and to the Cable Conduit #6 Drywall Screws 6019 through the qty. -
Page 7: Marquee Installation
GAME ASSEMBLY & SET-UP Marquee Installation Marquee Assembly Bracket, Marquee Mount- ing-Left Bracket, Marquee Mount- ing-Right Attach the Upper Cabinet Assembly to the Lower Cabinet Assembly with qty 6 each 1/4-20 x 1 3/4 BHCS 6220 and 1/4 x 1 1/2 x .090 Washer 6070. Place the monitor into the cabinet and reattach the Top Back 1,TV Cabinet and the Top Back 2,TV Cabinet Install the Marquee Assembly with qty 4 each 1/4-20 HH Bolt 6194 and 1/4 Lock Washer 6053... -
Page 8: Power Up Checklist
− TV uses “Input—3 PC” POWER DOWN SEQUENCE The Super Trivia game uses a rear projection televi- sion. This type of technology uses a high pressure mercury lamp. The lamp runs very hot and must be cooled properly before cutting power to the TV unit. -
Page 9: Introduction
• Overview Contents. Very funny, easy and actual questions en- couraging playing. Super Trivia TV is a Redemption game prepared to be • Graphic Design. Pleasant and attracting the attention used in authorized places. It contains a very easy game for its simplicity and elegance. -
Page 10: Game Screens
INTRODUCTION Game Screens Machine in stand-by While the machine is in stand-by and it is not used by any players, a succession of screens and 3D videos attracting the players appears. The screen that appears the most is Bonus screen, that gives information about the number of the tickets totalled till then (see the section Bonus Philosophy and Functioning). - Page 11 INTRODUCTION Game Screens Game screen This screen appears at the beginning of the game and shows the following elements: • Wheel. The wheel turns in a casual way, before each question that it is going to be asked, showing its category. The category is also specified in the upper indicator.
- Page 12 INTRODUCTION Score Screen After the end of the game, the score screen appears and shows the following details: • Players. A graphic and a color correspond to each player of the game. • Right answers. It shows the total number of the right answers given by every player. •...
-
Page 13: Operation
OPERATION Service and Control Panel In front of the TV cabinet, there is the service board of the machine. By means of that we can have an access to the dif- ferent functions of the game, the operation and the upkeep. In this section we explain the functioning and the use of these buttons: Service and Control Panel Buttons from SER1 to SER6: Use them to give credits / services to the consoles from the number 1 to the number 8. -
Page 14: Tickets Reload & Operator Involvement
OPERATION Tickets Reload and Operator Involvement When the tickets are been given to the winner of a game, it is possible that one of the console could be left without tick- ets. Immediately a warning diagram appears on the score screen saying which console has no tickets. Screen Display Displaying the Absence of Tickets You have just to add tickets to the console in question. -
Page 15: Operation Setup
OPERATION Operation Setup The machine has a special menu of parameterization by means of which some upkeep operations can be made in the software of the machine and in the functioning of the operation. By pressing the service button PROG in the service board of the TV cabinet, you will have access to this configuration program. -
Page 16: Advertisement
ADVERTISEMENT Advertisement System Super Trivia TV has a basic Advertisement system that can be used and be updated by the client allowing the advertise- ment of any product. The Advertisement has two different options: • Promotional Videos • Static Screens Promotional Videos All the videos that are used like reclamation of the game are founded in the folder c:\sttv_en\videos. -
Page 17: Quick Troubleshooting
QUICK TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION NO POWER TO GAME GAME UNPLUGGED CHECK POWER CORD TRIPPED CIRCUIT BREAKER CHECK ON/OFF SWITCH DAMAGED POWER CORD REPLACE CORD NO POWER TO PODIUM POWER CABLE UNPLUGGED CHECK POWER CABLE EXTENSION CABLE NOT CONNECTED CHECK &... -
Page 18: Maintenance & Troubleshooting
MAINTENANCE & TROUBLESHOOTING • MECHANICAL REPAIR Remove the retaining clips from the PL-L fluorescent bulbs. Press the button by the end of the bulb that plugs in and lift the bulb out. Replace with new bulb. IMPORTANT: USE ONLY ICE REPLACEMENT PARTS WHEN SERVICING YOUR GAME. -
Page 19: Electronic & Electrical Repair
MAINTENANCE & TROUBLESHOOTING FUSES ELECTRONIC AND ELECTRICAL REPAIR Fuses are the first items that should be checked when the game is inoperable or works incorrectly. The following section will describe repair procedures and trouble shooting hints for the game electronics. MAIN TV CABINET FUSE Please read the section “Operational Background”... -
Page 20: Maintenance & Troubleshooting
MAINTENANCE & TROUBLESHOOTING BALLAST OVERVIEW (MARQUEE) IF YOU DO NOT FIND ANSWERS TO YOUR QUES- • Remove the front cover from the Marquee by remov- TIONS IN THIS SECTION, REFER TO THE ACCOMPA- ing the 10 screws from the flange around the Mar- NYING MANUAL FOR YOUR PARTICULAR PRODUCT, quee cover. -
Page 21: Schematics
SCHEMATICS... -
Page 22: Schematics
SCHEMATICS AUX POWER SUPPLY (24Vdc/4A) ADJUST CN11... -
Page 26: Parts Listing
PARTS LISTINGS MECHANICAL PARTS Low Ticket Switch HH5005D Ticket Dispenser MZ2005 Button – Large Round White RR1024 Ticket Bin TG4002 Bar Stool TG5001 Triple Door ELECTRICAL & ELECTRONIC PARTS 2027X Fan Assembly 2222 Fuse - 5 Amp (Blade Style) 2259 Fuse - 10 Amp (Marquee PCB) 2389 Bulb #67 (Beacon Light) -
Page 27: Warranty Information
Warranty I.C.E warrants all components in the SUPER TRIVIA™ game to be free of defects in materials and workmanship for a period of ninety days from the date of pur- chase. This warranty does not cover items damaged due to normal wear and tear, subjected to abuse, improperly assembled by the end user, modified, repaired, or operated in a fashion other than that described in the service manual. - Page 28 ICE Inc. We cannot be responsible for the quality, suitability or safety of any non-ICE part, modification (including labor) that is performed by such a distributor. I.C.E. Parts/Service Dept. Innovative Concepts in Entertainment 10123 Main St. Clarence, NY 14031 Phone #: (716) - 759 – 0360...
