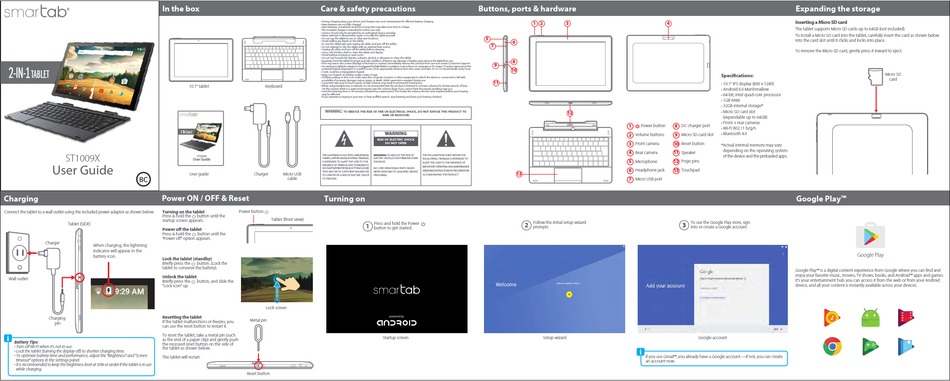

Smartab ST1009X User Manual

In the box
ST1009X

User Guide

Charging Power ON / OFF & Reset
Turning on the tablet
Connect the tablet to a wall outlet using the included power adaptor as shown below.
Press & hold the � button until the
startup screen appears.
Tablet (SIDE)
Power o the tablet
Press & hold the � button until the
"Power off" option appears.
Charger
When charging, the lightning
indicator will appear in the
battery icon.
Lock the tablet (standby)
Briefly press the � button. (Lock the
tablet to conserve the battery).
Unlock the tablet
Wall outlet
Briefly press the � button, and slide the
"Lock icon" up.
Resetting the tablet
Charging
If the tablet malfunctions or freezes, you
pin
can use the reset button to restart it.
To reset the tablet, take a metal pin (such
as the end of a paper clip) and gently push
Battery Tips:
the recessed reset button on the side of
• Turn off Wi-Fi when it's not in use.
the tablet as shown below.
• Lock the tablet (turning the display off) to shorten charging time.
• To optimize battery time and performance, adjust the "Brightness" and "Screen
The tablet will restart.
timeout" options in the Settings panel.
• It is recommended to keep the brightness level at 50% or under if the tablet is in use
while charging.
Care & safety precautions
• During charging, keep your device and charger near room temperature for efficient battery charging.
• New batteries are not fully charged.
• New batteries or batteries stored for a long time may take more time to charge.
• The included charger is intended for indoor use only.
• Service should only be provided by an authorized service provider.
• Never attempt to disassemble, repair or modify the tablet yourself.
• Do not use the tablet in rain or other wet locations.
• Avoid spilling any liquid on the tablet.
• In case the tablet gets wet, unplug all cables and turn off the tablet.
• Do not attempt to dry the tablet with an external heat source.
• Unplug all cables and turn off the tablet before cleaning.
• Use a soft, lint-free cloth to clean the tablet and display.
• Avoid getting moisture in open ports.
• Do not use household cleaners, solvents, alcohol, or abrasives to clean the tablet.
• Routinely check the tablet for proper and safe conditions. If there is any damage, or broken parts, remove the tablet from use.
• If for any reason the screen (display) is fractured or cracked, immediately remove this product from use and contact Customer Support.
• It is rare but possible for seizures to be triggered by light flashes or patterns such as those on computer or TV screens. To reduce exposure to this
potential hazard, play/watch in a well-lit room, sit an appropriate distance from the screen and take 10- to 15-minute breaks every hour.
• Cords could be a strangulation hazard.
• Keep out of reach of children under 3 years of age.
• Children pulling on the cord could cause the computer monitor or other equipment to which the device is connected to fall with
possibility of property damage, serious injury, or death. Adult supervision required during use.
• Long-term exposure to loud sounds, at high volume, may result in permanent hearing loss.

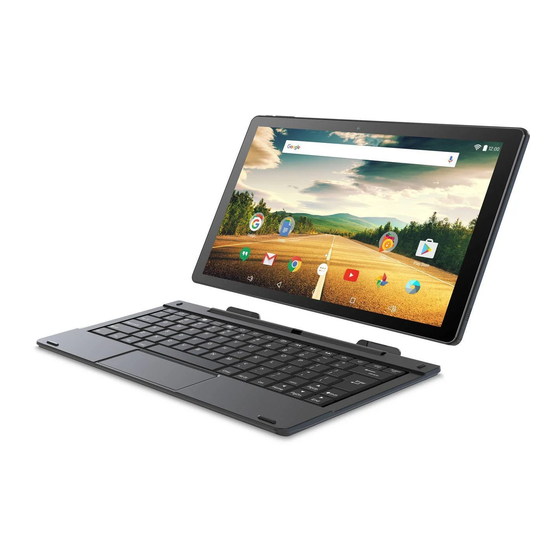

10.1" tablet Keyboard
• When using headphones or earbuds, it is recommended that the product is listened to at lower volumes for shorter periods of time.
Set the volume while in a quiet environment; turn the volume down if you cannot hear the people speaking near you.
• Limit the listening time to 90 minutes, followed by a quiet period. The louder the volume, the less time required before your hearing
may be affected.
• If you experience ringing in your ears or hear muffled speech, stop listening and have your hearing checked.
:
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK
THE LIGHTNING FLASH WITH ARROWHEAD
ST1009X
User Guide SYMBOL, WITHIN AN EQUILATERAL TRIANGLE,
IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULATED "DANGEROUS
VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE
THAT MAY BE OF SUFFICIENT MAGNITUDE
User guide Charger Micro USB
TO CONSTITUTE A RISK OF ELECTRIC SHOCK
cable
TO PERSONS.
Turning on
Power button �
Tablet (front view)
1
Lock screen
Metal pin
Reset button
Buttons, ports & hardware
1 2
5
6
7
8
9
10
11
,
DO NOT EXPOSE THIS PRODUCT TO
.
RAIN OR MOISTURE
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF
THE EXCLAMATION POINT WITHIN THE
ELECTRIC SHOCK, DO NOT REMOVE COVER
EQUILATERAL TRIANGLE IS INTENDED TO
OR BACK .
ALERT THE USER TO THE PRESENCE OF
IMPORTANT OPERATING AND MAINTENANCE
NO USER SERVICEABLE PARTS INSIDE.
SERVICING INSTRUCTIONS IN THE LITERATURE
REFER SERVICING TO QUALIFIED SERVICE 13
ACCOMPANYING THE PRODUCT.
PERSONNEL.
2 Follow the initial setup wizard
Press and hold the Power
prompts.
button to get started.
Startup screen Setup wizard
3 4
Speci cations:
• 10.1" IPS display (800 x 1280)
• Android 6.0 Marshmallow
• 64-bit, Intel quad-core processor
• 1GB RAM
• 32GB internal storage*
• Micro SD card slot
12
(expandable up to 64GB)
• Front + rear cameras
1 � Power button 8 DC charger port
• Wi-Fi 802.11 b/g/n
2 9 Micro SD card slot • Bluetooth 4.0
Volume buttons
3 10 Reset button
Front camera
*Actual internal memory may vary
depending on the operating system
4 Rear camera 11 Speaker
of the device and the preloaded apps.
5 Microphone 12 Pogo pins
6 Headphone jack 13 Touchpad
7 Micro USB port
To use the Google Play store, sign
3
into or create a Google account.
Google account
If you use Gmail™, you already have a Google account —if not, you can create
an account now.
Expanding the storage
Inserting a Micro SD card
The tablet supports Micro SD cards up to 64GB (not included).
To install a Micro SD card into the tablet, carefully insert the card as shown below
into the card slot until it clicks and locks into place.
To remove the Micro SD card, gently press it inward to eject.
Micro SD
card
Tablet
(BACK)
Google Play™
Google Play
Google Play™ is a digital content experience from Google where you can find and
enjoy your favorite music, movies, TV shows, books, and Android™ apps and games.
It's your entertainment hub: you can access it from the web or from your Android
device, and all your content is instantly available across your devices.
