Carex B651 Assembly Instructions

Carex B651 Assembly Instructions

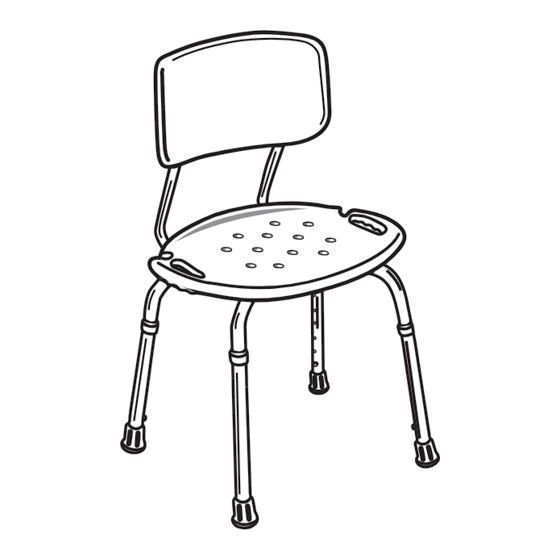

Bath and shower seat with back

Advertisement

Assembly Instructions
Place seat face down on a table or counter
1
with the seat lip near the edge of the table.
Place U bar labled "1" on the groove in the seat
so the "1" on the bar is next to the "1" on the
seat.
Place the U bar labled "2" on the seat so the "2"
on the bar is next to the "2" on the seat.
Carex Health Brands
PO Box 2526, Sioux Falls, SD 57101-2526
Phone 800.526.8051
B651/B652
2
1
2
1
www.carex.com
Bath and Shower Seat with Back
Backrest x 1
Seat x 1
U Bar x 2
Labeled "1"
and "2"
1
Find the 1 medium sized screw - Warning
2
- medium screw must be used for the next
step or damage to the seat will occur.
Place medium screw with washer into center hole
through both U bars and into the screw hole in the
seat.
Contour of washers should match curve of bar.
Leg Extensions x 4
L Bars x 2
Washer x 5
Medium Screws x 1
Long Screws x 4
2
2
1
Made in China
42-B65100_10 ©2014
