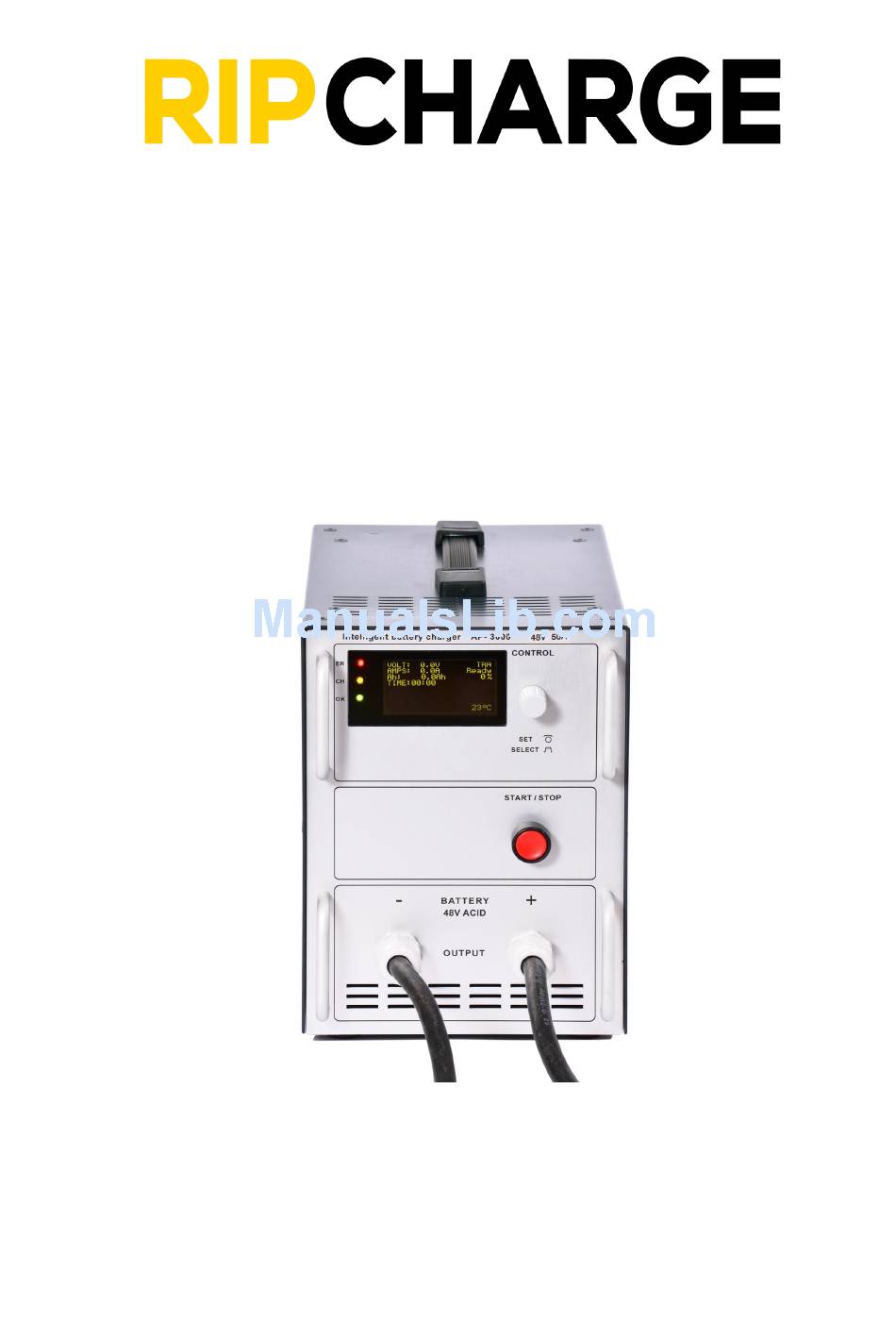

- Page 1 Instructions For use Rapid Impulse Phase Battery Charger Models: AP–3000 Pb 12V 135A, 24V 100A, 36V 75A, 48V 50A...
- Page 2 ● Pulsed or linear charging current ● Simple signalling of green, red, yellow LED, acoustic buzzer and LCD screen ● Settings by using the rotary knob RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk...
-
Page 3: Charging Instructions
Yellow LED does not illuminate, then the battery voltage is too low (battery is discharged to level where the automatic charging will not initiate. (check the the display to see the voltage and current). RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk... -
Page 4: Status Menu
Universal(UNI), GEL, Standard (STA), CaCaWET(WET), LeadCrystal(LC), U-I, AGM, Traction (TRA). The selected charging program will remain even when the charger is switched off. RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk... -
Page 5: Contrast Menu
By using the selection button and pressing a key, selection »Menu/Contrast« Here screen brightness is set. Reduced brightness levels extend the lifetime of the screen. RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk... - Page 6 Battery Size MENU By using the selection button and pressing to confirm, select the battery size (within the limit of between 50 to 1000Ah). RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk...
- Page 7 Calibrate Heading: c alibration of the reference voltage Uo. The calibration value1..99. This section is reserved for authorized service personnel only. RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk...
- Page 8 During charging, the measurement error of mains voltage is minimum. Uac[V] 210 120 110 100 90 Ibat[%] 95 RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk...
- Page 9 To make sure that battery charging is optimal, you can select the size (capacity) of the battery in the "Batt Size MENU". RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk...
- Page 10 II charge (Abso2) 75%...90% green 2x fast blink Equalization charge (Equ) 90…95% green on constantly float charge >95% on constantly temperature off RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk...
-
Page 11: Operational Problems
Red LED illuminates and the is an -device has overheated due to high decrease temp. of Error on LCD screen ambient temperatures environment -Hepatic fan (Error) -service intervention -clean fan RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk... -
Page 12: Technical Data
Desktop or wall mounting !!! WARNING !!! Only to be used by qualified and authorized personnel Never! hold the Red & Black crocodile clips and push BURST! RIPCHARGE UK, 3 CUTTS CLOSE, BRINKWORTH, CHIPPENHAM, WILTSHIRE, ENGLAND, UK. +44 (0) 1666 510626 e-mail:info@ripcharge.co.uk...
