Summary of Contents for Octopus OctoPad CA-001

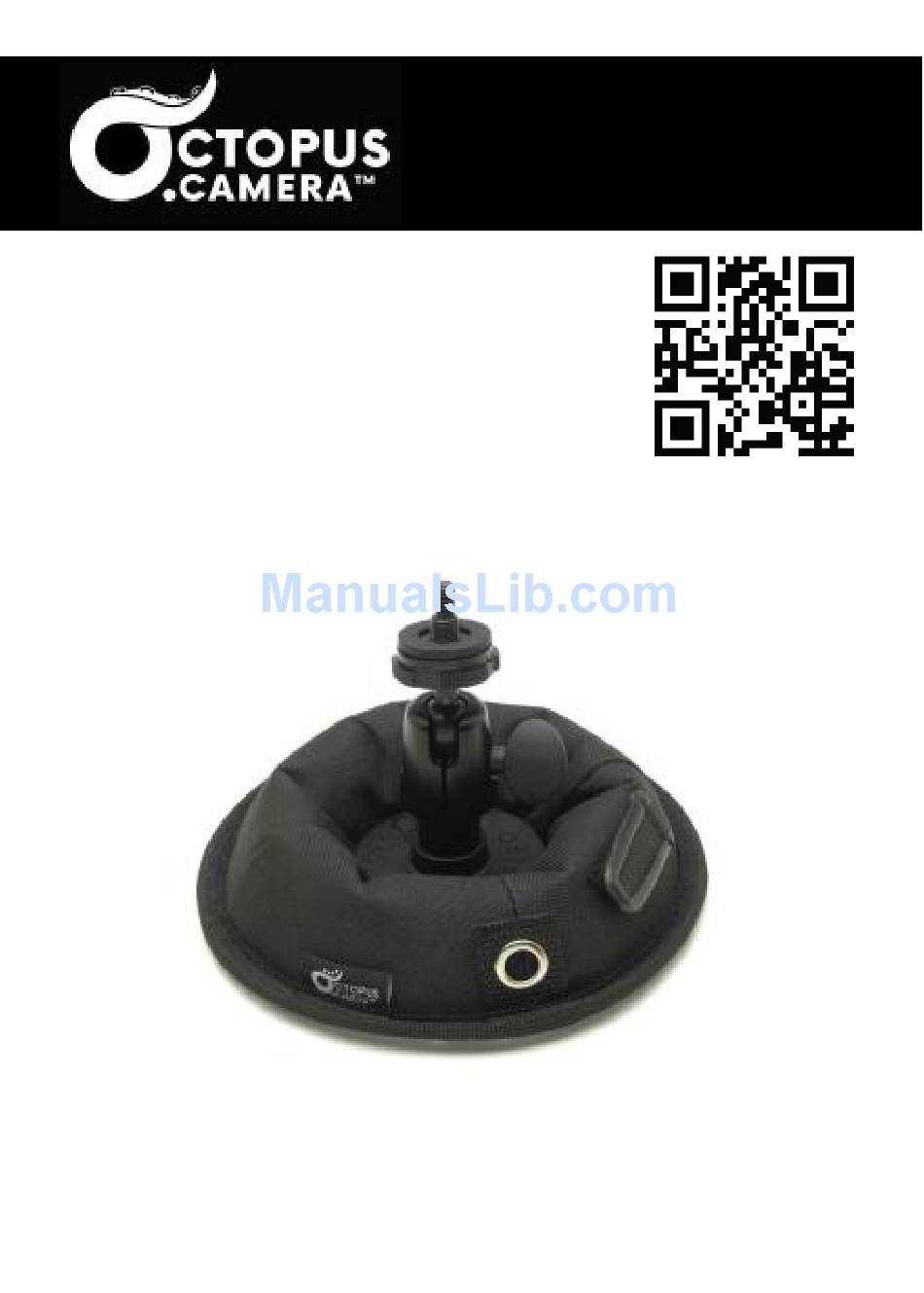

- Page 1 CA-001 User's Guide OctoPad™ Universal High Stability Support Base www.octopus.camera Please read this user's guide before using your new OctoPad™...
-
Page 2: Package Contents
Package Contents • OctoPad™ • High-capacity ball head • User's Guide Features Universal ¼-20 bolt Cable Management Strap Safety High-Friction Grommet Anti-Skid Base... - Page 3 Why OctoPad™ ? Won't collapse • under weight • Won't tip over • Won't slip or slide Won't lose • suction...
- Page 4 Instructions for Use Peel off bottom protective sheet. 2. Mount ball head by screwing onto central bolt.
- Page 5 Instructions for Use (continued) 3. Mount your device using the ¼-20 thread and secure tightly using the platform nut on the ball head. The payload may loosen under conditions of shock loading Platform and/or heavy payloads. Exercise caution!
- Page 6 Instructions for Use (continued 4. Use the Cable Management Strap to secure cables conveniently. Cable Management Strap...
- Page 7 Instructions for Use (continued 5. Use the Safety Grommet together with a carabiner and lanyard to secure your OctoPad™ against unforeseen movements. The Safety Grommet may tear under conditions of shock loading and/or heavy payloads. Exercise Safety caution! Grommet...
- Page 8 Things to watch out for Make sure the bottom surface of • your OctoPad™ is clean to ensure grip. (Care instructions see p. 5) Avoid using your OctoPad™ on • abrasive surfaces to prevent wear. Do not subject your OctoPad™ to •...
- Page 9 Things to watch out for continued When Using In A Vehicle: • Do not place in airbag deployment zones. • Make sure your OctoPad™ will not interfere with vehicle operation. Care of Your OctoPad™: • Do not machine-wash, machine-dry, iron or wring your OctoPad™...
- Page 10 Things to watch out for continued Your OctoPad™ will carry most compact payloads with ease. Some types of payloads should however be avoided or approached with caution: • Do not use outriggers.
- Page 11 Things to watch out for continued • Do not use extensions having height that results in instability.
- Page 12 Things to watch out for continued • Use caution with payloads having a larger footprint than the OctoPad itself...
- Page 13 Limited Warranty and Legal Notice Octopus.Camera LLC warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date or purchase. Octopus.Camera LLC makes no other express warranties. This warranty does not cover:...
- Page 14 Should a problem occur that is covered by this warranty, take the product and the sales receipt as proof of purchase date to the place of purchase. Octopus.Camera LLC will, at its option, unless otherwise provided by law: Repair the product without charge for parts and labor;...
- Page 15 Except as described above, Octopus.Camera LLC shall have no liability or responsibility to the purchaser of the product or any other person or entity with respect to any liability,...
- Page 16 Octopus.Camera LLC has been advised of the possibility of such damages. Some states do not allow limitations on how long an implied warranty lasts or the...
