Glomex ZigBoat ZB100 Owner's Manual

eng
Gateway
code: ZB100
OWNER'S MANUAL
Version 1.0
Product description
The Gateway is the core module of the
ZigBoat™ wireless and remote control system.
It's an open platform that can be integrated and
expanded with unlimited ZigBoat™ additional
sensors and features
Precautions
• Do not remove the product label as it
contains important information.
Product label
Getting started
1. Connect the power cable to the ZigBoat™
Gateway.
2. Connect the power supply to a battery
bank (9-36 Vdc).
NOTE: Minimum section cable: 1.5 mm² ( for
cable up to 5m). Minimum section cable: 2.0
mm² ( for cable between 5 to 10m)
3. Download the ZigBoat™ App to your
device from App Store (for iOS devices)
or from Google Play (for Android devices).
For Android version only: download the
"Barcode Scanner" App.

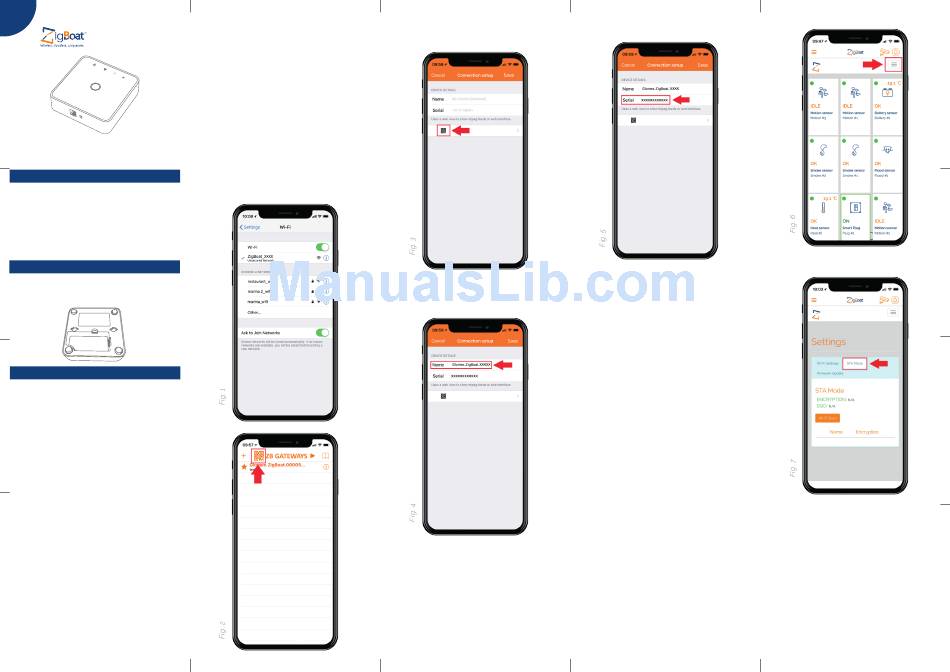

CONNECTING THE ZIGBOAT™ GATEWAY
When the ZigBoat™ Gateway is turned on, the
green LED blinks and, after approximately 4-5
minutes, it will start an access point named
"Zigboat-xxxx" (fig.1) where xxxx is the serial
number of the Gateway. Connect your phone/
tablet to the Wi-Fi network "Zigboat-xxxx".
NOTE: the Wi-Fi network "Zigboat-xxxx" is
password protected. The default password is
12345678. We suggest to change the password
using at least 8 alphanumeric characters (no
special characters). Make sure to remember
your password if it is changed.
Open the ZigBoat™ App, go to the ZB Gateways
menu and select the QR code button (fig. 2) (or
you can select the + button and then select
the QrCode button (fig.3), scan the QR code on
the back of the ZigBoat™ Gateway and press
"Save". You can change the devices name by
selecting "Name" (fig. 4)
NOTE: Alternately, you can add manually the
Gateway by entering in the SERIAL field the
Serial Number and the Install code (separated
by -) which are on the Gateway's label (fig.
5). You should assign a custom name to the
Gateway filling the NAME field.
To receive push notifications from your
ZigBoat™ sensors you must connect the
Gateway to an internet network.
OPTIONAL INTERNET CONNECTIONS:
a. Connect the ZigBoat™ Gateway to the WiFi
network of weBBoat 4G Plus (optional) or to
a known external WiFi network (for example
Marina etc). Select the menu button on
the top right (fig. 6), then select SETTINGS
tab. On the STA MODE tab (fig. 7), click on
the button "Wi-Fi scan". Choose the Wi-Fi
network you want to connect to, enter the
password (if needed) and then press the
button "Yes, proceed". Now, the ZigBoat™
Gateway is connected to the internet and
can send you push notifications if the
connected sensors detect a critical event.
NOTE: After this procedure, close the App, wait
a few minutes and open the App again.
b. Insert the optional 3G USB dongle (code
ZB210) in the USB port on the back of the
Gateway.
c. Use an Ethernet cable to connect
the ZigBoat™ Gateway to an internet-
connected router.
NOTE: The gateway should not be connected
directly to the PC.
SSID AND PASSWORD SETTING
You can customize the name of your ZigBoat™
Wi-Fi network (SSID) and its password.
SSID setting
Select the menu button on the top right (fig.
6), then select the SETTINGS tab (fig. 8). On
the Wi-Fi settings tab, fill in the SSID field with
your customized name (fig. 9). Please don't
use special characters.
