Summary of Contents for Zip Line Fun ZL90
-

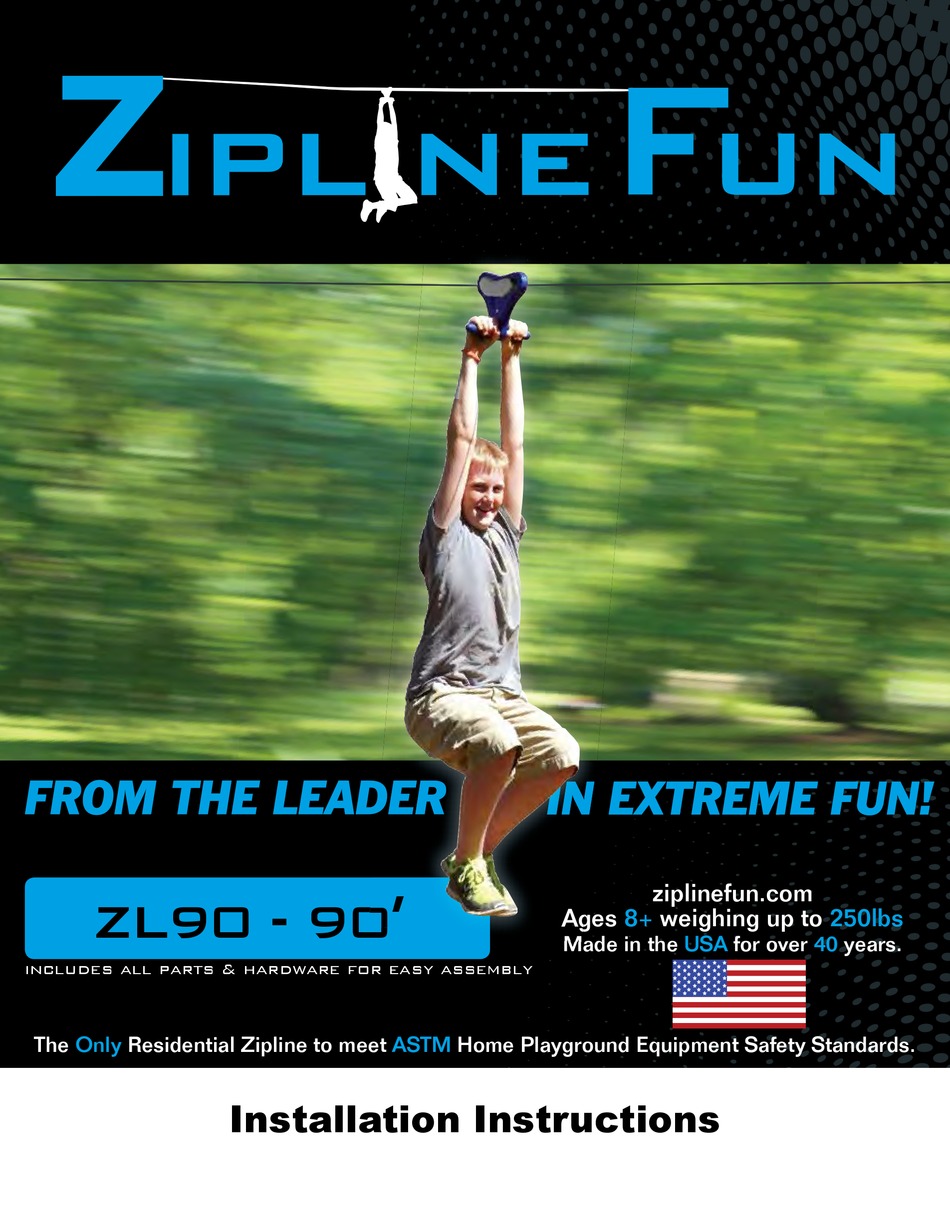

Page 1: Installation Instructions
ZL90 - 90’ ZL90 - 90’ ziplinefun.com Ages Ages Ages weighing up to 250lbs Made in the Made in the for over years. includes all parts & hardware for easy assembly Only Residential Zipline to meet ASTM Home Playground Equipment Safety Standards. - Page 2 ASTMF1148 Standard Consumer Safety Performance Specification for Home Playground Equipment, and European Toy Safety equipment and accessories, all users of ZL90 will need proper instruction and supervision. ZL90 is intended to be used as a cable ride between two points.
-
Page 3: Tools Required
Please Note: Observing the following statements and warnings reduces the likelihood of serious or fatal injury. ZL90 Zip Line has been designed to provide children and adults with all of the enjoyment and traditional fun of a smooth, safe and exhilarating ride through the air from one point to another. - Page 4 (see assembly instructions). 4. Do not install ZL90 Zip Line over concrete, asphalt, packed earth, grass, carpet or any other hard surface. A fall onto a hard surface can result in a serious injury or death to the equipment user. (See enclosed CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS).
- Page 5 Assembly Instructions NEVER USE EYEBOLTS OR SIMILAR HARDWARE IN CONNNECTION WITH THIS PRODUCT! Illustration 1: Upright U-Bolts Thimble Turnbuckle Turnbuckle Clamps Upright Lock Washers Nuts Incorrect Sling 1. Set aside Assembled Trolley (E). See instructions for proper mounting heights. Do not suspend cable over any hard surface. Carefully uncoil the galvanized aircraft cable (D).
- Page 6 INSTALLATION and ASSEMBLY SAFETY INSTRUCTIONS (continued) Please Note: Observing the following statements and warnings reduces the likelihood of serious or fatal injury. 3. Using three (3) of the cable clamps (B) provided with lockwashers and nuts, secure the cable at the starting point (high end) as illustrated below.
- Page 7 INSTALLATION and ASSEMBLY SAFETY INSTRUCTIONS (continued) Please Note: Observing the following statements and warnings reduces the likelihood of serious or fatal injury. 4. Using a hammer, fit the thimble (G) to eyed end of Turnbuckle 1 (A) as illustrated. 5. Wrap the cable sling (C) provided around the other upright at the terminating point or low end at the height determined in Safety Instructions step 5b.
- Page 8 INSTALLATION and ASSEMBLY SAFETY INSTRUCTIONS (continued) Please Note: Observing the following statements and warnings reduces the likelihood of serious or fatal injury. 8. Depending upon the length of your Zip Line, you may now have extra cable. This excess should be removed.
-
Page 9: Maintenance
At the End of Each Play Season/Temperature Drops Below 32 degrees Fahrenheit: o Uninstall and take the ZL90 Zip Line trolley, swing seats or other items inside. o Rake and check the depth of loose fill protective surfacing materials to prevent compaction and to maintain appropriate depth. - Page 10 DISASSEMBLY 1. Follow the steps backwards beginning with the release of tension at the turnbuckle. DISPOSAL 1. Disassemble and dispose of all playground equipment in such a way that no unreasonable hazards will exist at the time it is discarded. WARNING WIRE ROPE/CABLE Wire rope WILL FAIL if worn-out, overloaded, misused, damaged,...
-
Page 11: Limited Warranty
LIMITED WARRANTY Zip Line Fun warrants to the first consumer purchaser, for a period of one (1) year from the date of purchase, that the Zip Line will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective product or part thereof at no charge to the purchaser for parts or for labor.
