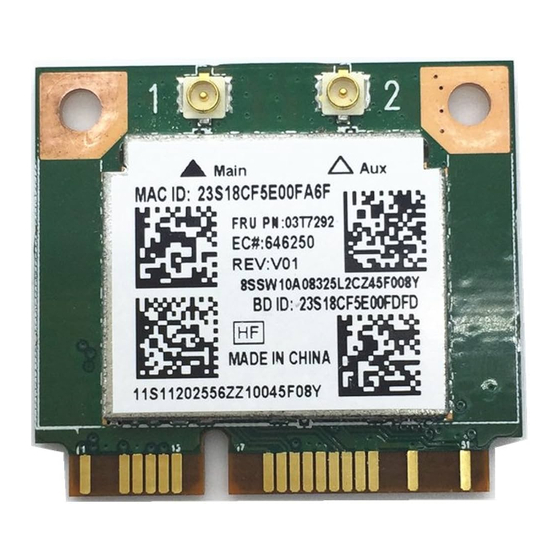

- Page 1 RTL8192EEBT user manual RTL8192EEBT RTL8192EE+RTL8761AU Combo Module User’s Manual Rev. 0.1 12 .03. 2013 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com...
- Page 2 COPYRIGHT ©2012 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp.
-
Page 3: Table Of Contents
RTL8192EEBT user manual Table of Contents GENERAL DESCRIPTION ............................... 4 2. F ..............................5 UNCTIONAL PECIFICATIONS 4. W ....................................6 ARNING 4.5.1 Federal Communication Commission Interference Statement ..................6 4.5.2 Industry Canada Statement ............................7 警語 4.5.3 NCC ..................................10... -
Page 4: General Description
RTL8192EEBT user manual General Description The Realtek RTL8192EE is a highly integrated single-chip MIMO (Multiple In, Multiple Out) Wireless LAN (WLAN) solution for the wireless high throughput 802.11n specification. It combines a MAC, a 2T2R capable baseband, and RF in a single chip. The RTL8192EE provides a complete solution for a high throughput performance wireless client. -
Page 5: Functional Specifications
RTL8192EEBT user manual The Realtek RTL8761AU is a highly integrated single-chip Bluetooth 2.1/3.0/4.0 controller, USB interface. It combines BT Protocol Stack (LM, LL, and LE), BT Baseband, modem, and BT RF in a single chip. The RTL8761AU Bluetooth controller complies with Bluetooth core specification v4.0, and supports dual mode (BR/EDR + AMP + Low Energy Controllers). -
Page 6: Warning
RTL8192EEBT user manual WiFi 2.4GHz: 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe Operating Channel 14: (Ch. 1-14) – Japan BT 2.4GHz: Ch. 0 ~78 Frequency Range 2.400GHz ~ 2.4835 GHz WiFi : WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit & 128bit, IEEE Security 802.11x, IEEE 802.11i... -
Page 7: Industry Canada Statement
RTL8192EEBT user manual This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. - Page 8 RTL8192EEBT user manual To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than required for successful communication. French translation: Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximum de 3.5 dBi. Une antenne à...
- Page 9 This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains IC: 6317A-RTL8192EEBT”. French translation: Plaque signalétique du produit final...
-
Page 10: Ncc 警語
XXXyyyLPDzzzz-x (NCC ID) 」字樣。 系統廠商應於平台上標示「本產品內含射頻模組： 4.5.4 Japan Statement Host system must be labeled with "Contains MIC ID:xxxxxx“, MIC ID displayed on label. Realtek Semiconductor Corp. Headquarters No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu, 300, Taiwan, R.O.C. Tel: 886-3-5780211 Fax: 886-3-5776047... - Page 11 Total Antenna List Ant. Con. Peak Gain Brand Model No. Type Type (dBi) IPEX LYNwave PIFA TX1: 3.5 TX1: ALA110-222050-300011 MHF4 LYNwave PIFA IPEX TX1: 3.5 TX1: ALA110-222050-300010 JOYMAX DIPOLE IPEX TX1: 3.0 TX1: TWF-614XMPXX-500 TX1: 0.85 TX1: SKW10WMPB01+A Well Green PIFA IPEX TX2: 0.44 TX2: SKW10WMPB02+A...
- Page 12 Ant. Con. Peak Gain Brand Model No. Type Type (dBi) TX1: 0.21 TX1: WDAN-T1RH1 Foxconn PIFA IPEX TX2: 0.60 TX2: WDAN-T1RH2 TX1: SKX71WMPB01+B TX1: 0.21 Well Green PIFA IPEX TX2: SK370WMPB01+B TX2: -0.75 TX1: -0.6 TX1: L01RF008-R Luxshared PIFA IPEX TX2: -0.29 TX2: L01RF009-R...
-
Page 13: Tx1:
Ant. Con. Peak Gain Brand Model No. Type Type (dBi) IPEX TX1: -0.47 TX1: LA22LN718-1N-3F Luxshare PIFA MHF4 TX2: -0.25 TX2: LA22LN719-1N-3F IPEX TX1: 1.80 TX1: CAN4313LL0727WLA1 YAGEO PIFA MHF4 TX2: 1.19 TX2: CAN4313LL0727WLA2 IPEX TX1: -1.69 TX1: LX3965-16-000-C Amphenol PIFA MHF4...
