INSTALLATION INSTRUCTIONS
25L4 and 50L4 STARTERS
Follow these instructions for easy installation of Ampgard Starters
1

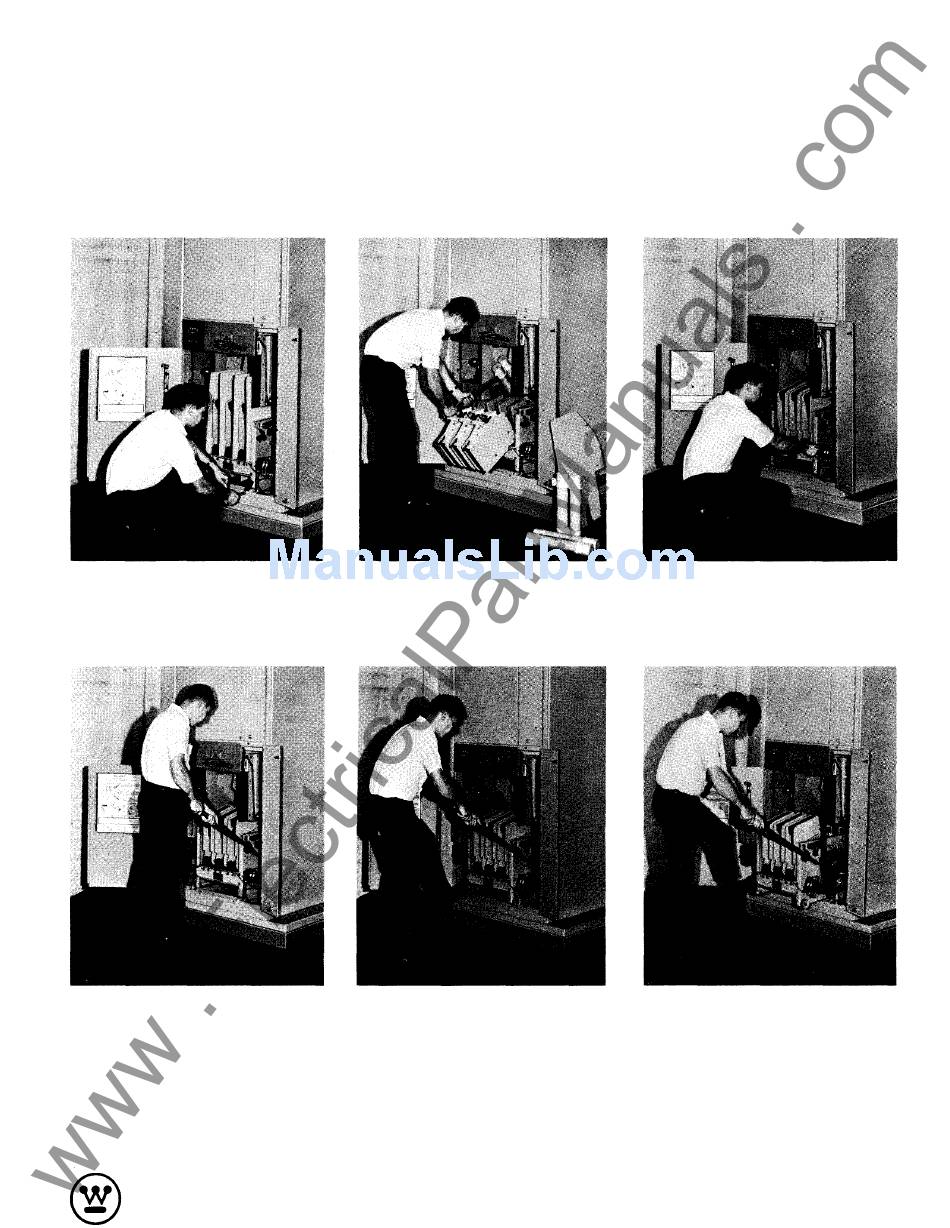

Remove the shipping clamps by
taking out two bolts and clamps.
4
Obtain a piece of 3f4 inch pipe
about three feet long to use as a
"jiffy" bar.
Insert in contactor clamp
as shown.
822647
2
Remove
four
barriers and three main fuses.
822645
5
With left foot (or hand) LIFT latch
on bottom left hand corner of
contactor, and at the same time give
contactor a sharp pull toward you with
the jiffy bar.
822652
3
contactor
phase
Remove the control plug from the
contactor.
822655
6
Part way out the contactor will
relatch
which
maintenance. To remove the contac
tor, press the latch bar DOWN with
your left foot or hand, and at the same
time pull the contactor forward with
the jiffy bar.
lifting force to the jiffy bar as the
contactor rolls outward.
Page 1
6379027 HOi
822651
822654
in
a
"detent"
position
will
later
be
useful
for
Be prepared to apply a
