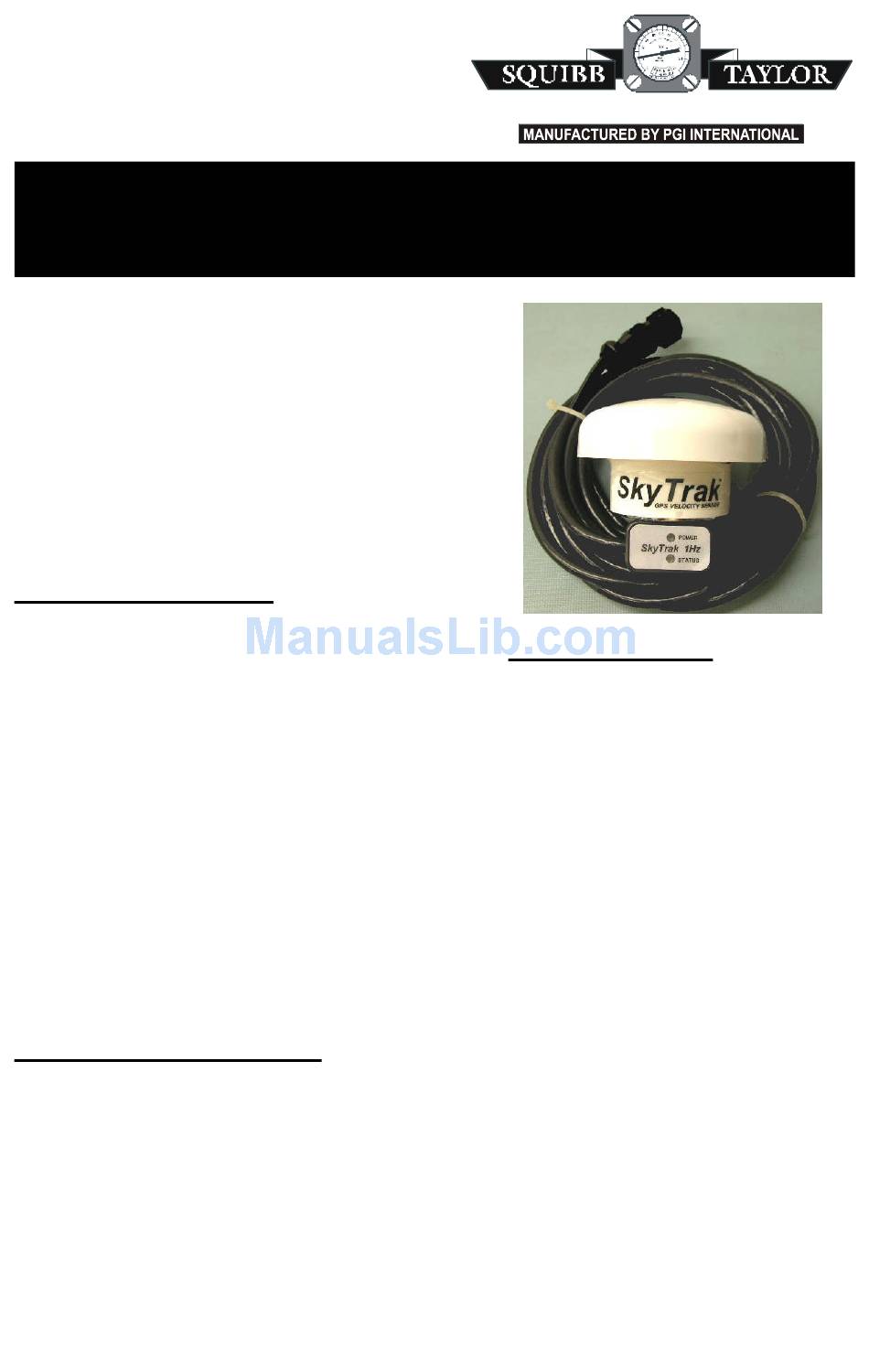

Skytrak SK2-1001-M Installation, Operation & Maintenance Manual

SkyTrak
Installation, Operation & Maintenance Manual for Models
SK2-1001-D, SK2-1001-M, & SK2-1001-R
1 Hertz GPS Velocity Sensors
SkyTrak is a GPS based velocity sensor that
produces true ground speed pulses to equipment
designed to interface with radar ground speed and
wheel speed sensors. SkyTrak can be quickly
transferred from vehicle to vehicle, provides high
accuracy, and is easy to install and use. Simply
make the connection to your monitor/control
equipment, perform the same calibration you would
use for other pulse sensors, and you're ready to go.
Physical Specifications
Size
Cable Length
Power
Backup Battery
Connector
Operating Temp. -30°C to +65°C
Storage Temp.
Humidity
Performance Specifications
Velocity Accuracy
GPS Update Rate
Backup Battery Life
Acquisition Rate
Cold Start
Warm Start
IOM-SK2-1001, Rev. 03
GPS VELOCITY SENSOR
3.50" Diameter x 2.14" High
15 feet
4.8 to 16 Volts, 0.1 Amps max.
CR2032 Lithium Coin Cell
®
DICKEY-john , Raven, or
®
Micro-Trak
(depending on Model Number)
(-22°F to +149°F)
-40°C to +80°C
(-40°F to +176°F)
100% Condensing
0.1 MPH (without SA)
1 Hz.
> 3 years
< 52 seconds
< 9 seconds
TM
(214) 357-4591
Standard Features

Low cost alternative to radar type
speed sensors

Completely self-contained (GPS,
antenna, and velocity-to-pulse
converter)

16 Channel GPS receiver

Battery backup for GPS satellite
table reduces startup time

Selectable output pulse rates
ensures monitor compatibility

0.1 MPH accuracy from 0.5 to 50
MPH

UV stable, polycarbonate
enclosure

Magnet mount simplifies
installation

Diagnostics LED's built into the
cable help to quickly verify
performance

Consistent pulses/foot output from
unit to unit
INCORPORATED
(800) 345-8105
DALLAS TEXAS
Form IOM-SK2-1001, Rev.03
