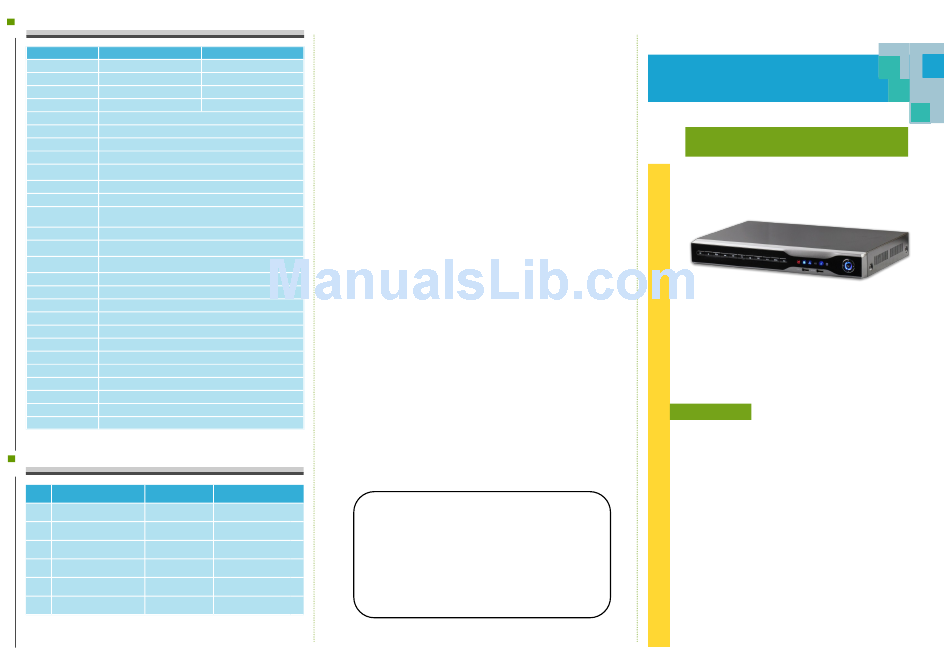

Mondo Plast 8CH Quick Installation Manual

Specifications

Model 4CH
Video Input
4CH x960H，BNC
Audio Input 4CH
Video Code Resolution 960H video code
Synchronous playback 4CHx 960H
CVBS Output 1CH，BNC；Resolution：PAL：720 x 576(D1) NTSC：720 x 480(D1)
HDMI Output 1 CH,HDMI ;Resolution:1920x1080P/60Hz
VGA Output 1 CH,VGA ;Resolution:800x600P/60Hz
Audio Output 1 CH，RCA
Video Compression
Standard H.264
Standard
Video Frame Rate
PAL: 25 fps；NTSC :30 fps
Video Code Rate
64 Kbps -- 2.0 Mbps，10 ranges optional
Audio and video steam / video steam，support variable bit rate
Data Stream Type
(VBR) / constant bit rate (CBR)
Dual-Stream Support
Audio Compression
ADPCM
Standard
One SATA interface (support ESATA) ,Each interface can support HDD
Data Storage Type
with maximum capacity of 4TB.
Backup Method USB
Network Interface RJ45 10M / 100M Auto-adapt Ethernet port
Voice intercom input 1 CH，RCA
USB Interface Two USB2.0 interfaces
Serial interface 1 CH，RS485
Power consumption
Working Temperature
-10℃ — 55℃
Dimensions
Weight
Operating System Embedded Linux operating system
Equipment control Infrared remote control and mouse
Power Input DC +12 V / 2A
Item List
Item Name Quantity
1 Mouse 1
2 CD 1
3 Remote control 1
4 Power Adapter 1
5 Quick Installation Guide 1
6 Digital Video Recorder 1
8CH
8CH x D1，BNC
4CH
D1 video code
4CH x D1
Franchiser：
Digital Video Recorder
Quick Installation Guide
Thank you for using our product, please read this
manual carefully before use. We shall not take any
financial or legal responsibility to the loss due to
wrong operation.
Instructions
◆This equipment should be installed in a well-ventilated
environment at proper distance away from the ground for
heat dissipation. Do not block the vents and please avoid
heat.
◆This equipment should be kept horizontal during in-
stallation and avoid installing in locations subject to ex-
cessive vibration.
◆Please keep it dry in case a short-circuit may cause
fire or other hazard. This equipment is not weatherproof.
◆To meet the needs of reading and writing extensive
data in the long run, please select the hard disk recom-
mended by manufacturer, which is suitable for the DVR,
and purchase it from the formal channels to guarantee its
quality.
◆This product can not bear heavy weight, please do not
place heavy objects on it or pile up.
