YPHIX 50208670 Installation Manual

One or more LED receivers CC 700 5ZD can be controlled with one RF remote and/or a push switch. Program
multiple receivers up to 5 different zones. If applicable, more than one receiver can be linked to a zone. With only
one click all receivers can be switched on/off simultaneously.

Specifications:

• LED receiver 700mA
• Controlled by: RF remote (up to 25 meters) and/or push switch
• Control multiple receivers with one remote control (separately or simultaneously)
• 1- 5 zones
• 2 memory keys
• 100 % dimmable in 255 steps
• Input: 12V or 24V DC
• Output : 4 x 700mA
Learning key
LED Power supply
12-24V DC
Push switch

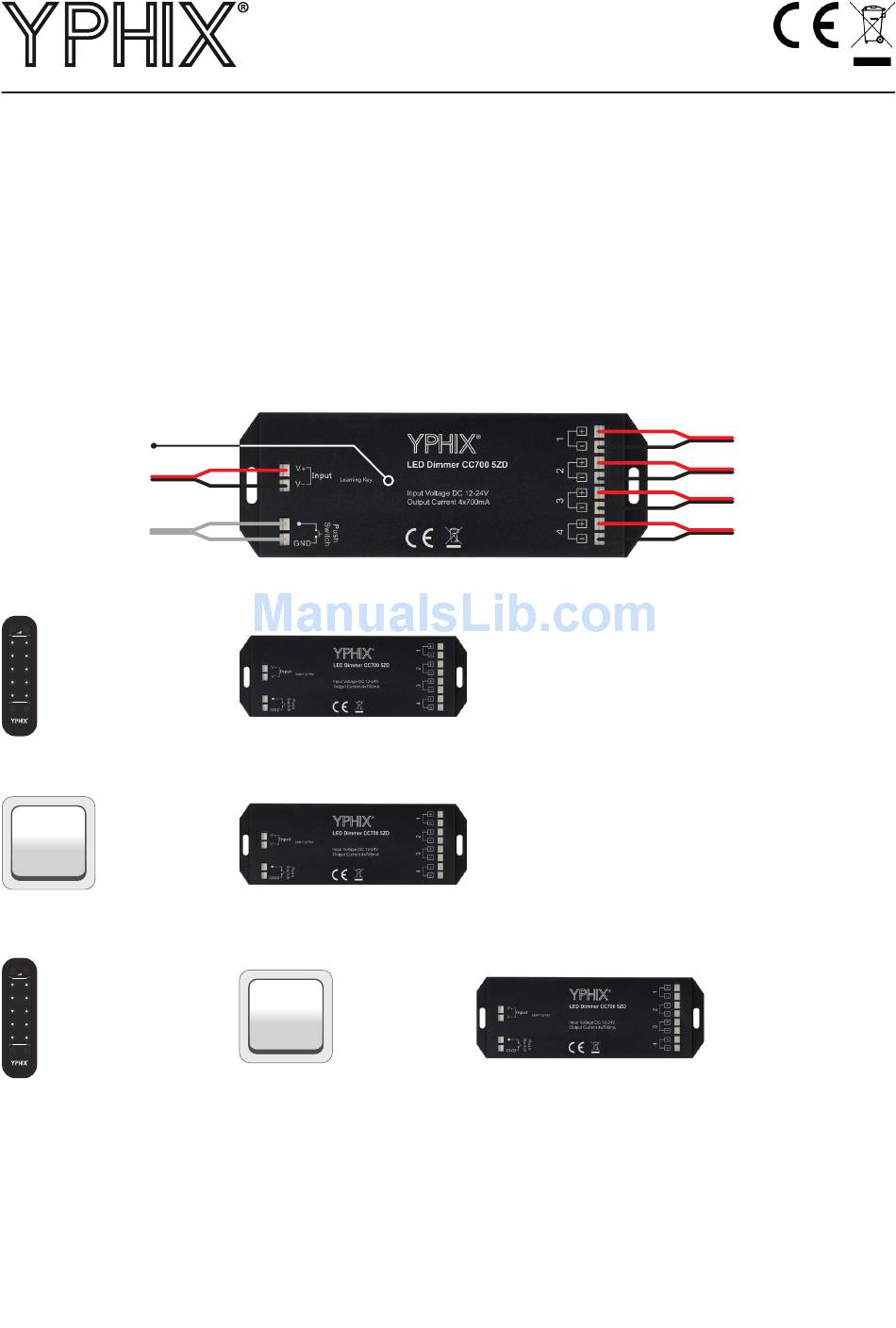

Option 1. Control LED receiver CC 700 5ZD with an RF remote RF remote (Product code: 50208610)
OFF 1-5 ON
1
2
+
3
4
5
M1 M2
Option 2. Control LED receiver CC 700 5ZD with a push switch (Product code: 50178530)
+
Option 3. Control LED receiver CC 700 ZD with a RF remote and push switch
OFF 1-5 ON
1
2
+
3
4
5
M1 M2

How to install LED Dimmer CC 700 5ZD

Turn off the main switch.
1. Connect 12V or 24V DC LED power supply to V- and V+ INPUT on the receiver.
Please note!
• Never connect the receiver directly to a battery. Always use a DC-DC converter.
• Always connect all output wires of the power supply to the receiver.
• Connect only one power supply to each receiver.
Installation manual
YPHIX LED dimmer CC 700 5ZD
®

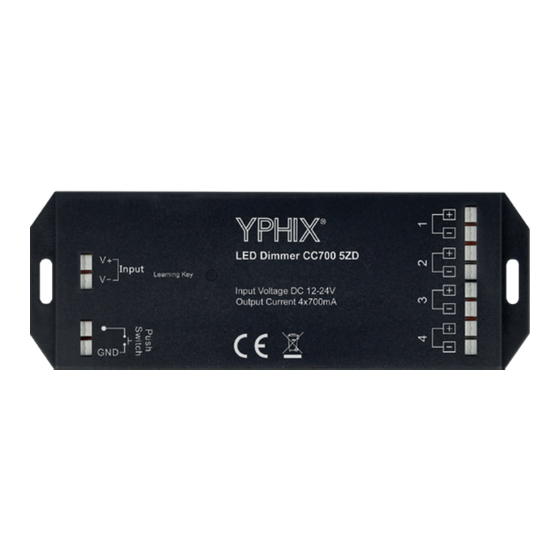

Product code: 50208670
+
LED Lamp
LED Lamp
LED Lamp
LED Lamp
