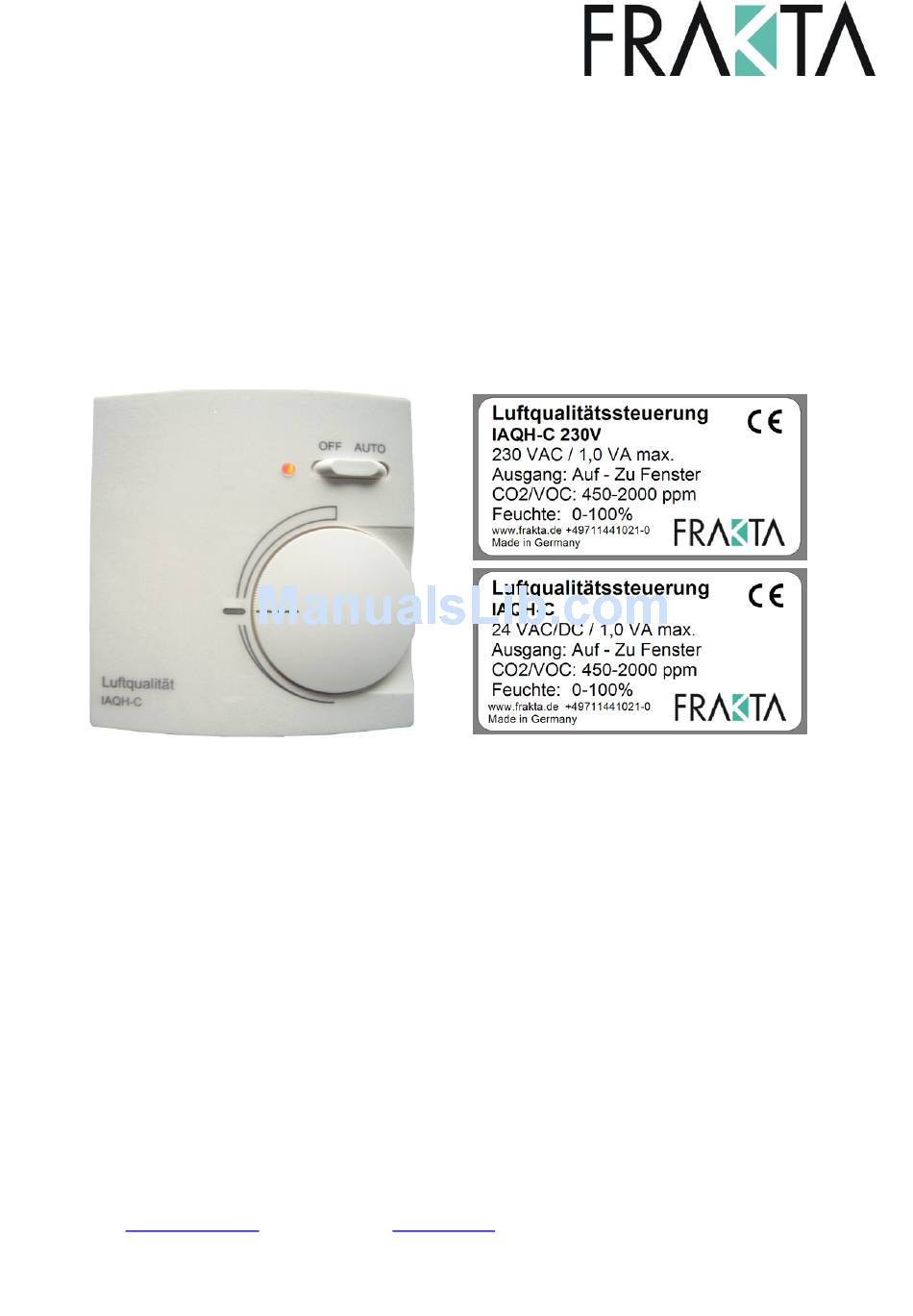

Indoor Air QualityController IAQH-C
This device is especially designed for the automatic windows of the VELUX
company.
User Manual
April , 2018
FRAKTA Vertriebs GmbH
Riedwiese 13/1
D-72229 Rohrdorf
Phone: 0049 (0)7452 605 1991
Mail:
verkauf@frakta.de
www.frakta.de
Specification subject to change without notice
Made in Germany , Printed in Germany
Advertisement
Table of Contents
Troubleshooting
Summary of Contents for FRAKTA IAQH-C
- Page 1 Indoor Air QualityController IAQH-C This device is especially designed for the automatic windows of the VELUX company. User Manual April , 2018 FRAKTA Vertriebs GmbH Riedwiese 13/1 D-72229 Rohrdorf Phone: 0049 (0)7452 605 1991 Mail: verkauf@frakta.de www.frakta.de Specification subject to change without notice...
-
Page 2: Table Of Contents
User Manual – Indoor Air Quality Controller IAQH-C Page Intended Use ............................3 Functional Description ........................3 VOC Sensor ..........................3 Air Quality Measurements ......................3 Temperature Measurement ......................4 Functions .............................5 2.4.1 Air Quality Sensor ........................5 2.4.2 Humidity Sensor ........................5 2.4.3 Function Temperature Limitation .....................5 2.4.4... -
Page 3: Intended Use
Metal Oxide IAQ Indoor Air Quality (VOC) Transmitter 1 Intended Use The indoor air quality control IAQH-C with digital processing of the measuring values and temperature compensation is used for measuring and controlling the air quality in indoor areas within environmental conditions specified in the Technical Data. -
Page 4: Temperature Measurement
User Manual – Indoor Air Quality Controller IAQH-C Page Indoor Air Typical Substances Ventilation Contamination Emission Source VOCs Others Source Acetone, Ethanol, Isoprene *Breath Humidity Nonanal, Decanal, α-Pinene *Skin respiration & demand transpiration Humidity controlled *Flatus Methane, Hydrogen Human Being... -
Page 5: Functions
User Manual – Indoor Air Quality Controller IAQH-C Page Functions 2.4.1 Air Quality Sensor The air quality sensor measures the VOC concentration and converts it into the CO equivalence. This signal is only used internally and is not output. 2.4.2... -
Page 6: Installation
User Manual – Indoor Air Quality Controller IAQH-C Page 3 Installation Mounting Instructions When choosing the mounting site please pay attention to the following: Do not mount the transmitter next to doors, windows, air inlets and outlets. Free air supply must be granted. -
Page 7: Figures
User Manual – Indoor Air Quality Controller IAQH-C Page Figures Version 230 V power supply Version 24V power supply Fig. 10: Electrical connection 230V version Operating Mode LED Power Supply Operating Switch Switch Output to Velux Radio Actuator Fig. 12: Terminal positions of the PCB... -
Page 8: Specifications
User Manual – Indoor Air Quality Controller IAQH-C Page Specifications Electrical Supply voltage 24 V version 24 VAC ±10%, 50 Hz /VDC±20% 230 V version 230 VAC ±20%, 50 Hz Power consumption Approx. 30 mA + power of the digital outputs... -
Page 9: Modbus
User Manual – Indoor Air Quality Controller IAQH-C Page ModBus General The ModBus protocol was developed for the data exchange between information processing units, programmable logic controllers and other intelligent systems. A master computer communicates with maximum 247 connected devices via a serial data link of RS-485 standard. There is only one device (host, master) per bus line determining the telegramming. -
Page 10: Modbus Functional Description
User Manual – Indoor Air Quality Controller IAQH-C Page Answer telegram: Address of the slaves Executed function (order) Data field (e.g. data length and data) Control characters The answer is sent at the earliest after a silence of 3.5 characters after the end of the master’s telegram. -
Page 11: Troubleshooting
User Manual – Indoor Air Quality Controller IAQH-C Page Troubleshooting If there is any parity, framing, overrun or CRC error during receipt of a telegram, the slave doesn’t accept and answer it. If the slave cannot execute the requested order, it sends an error message. -
Page 12: Modbus Read Register Description
User Manual – Indoor Air Quality Controller IAQH-C Page ModBus Read Register Description Read register Request with command 0x03 Register Description Range Default Sensor type (defined by product type) 19505 Measured value: Air quality 0- max (defined in register 11) in ppm Measured value: Temperature 0- max (defined in register 12) in °C... -
Page 13: Modbus Write Register Description
User Manual – Indoor Air Quality Controller IAQH-C Page ModBus Write Register Description Write register Command with command 0x10 (16d) Register Function Possible Range Default Note Own MODBus address 1-255 Measuring range air quality 0-32767 4000 Measuring range Temp. 0-32767 (50 with 1 decimal place) Internal Min. -
Page 14: Notes And General Information
User Manual – Indoor Air Quality Controller IAQH-C Page 10 Notes and General Information It is important to read this user manual thoroughly and clearly in order to understand the information and instructions. The IAQ transmitter must be used within product specification capabilities. The appropriate operating and maintenance instructions and recommendations must be followed.
