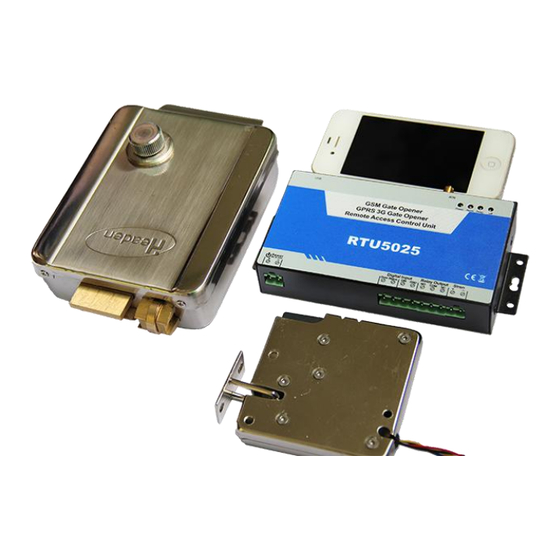

GPRS/3G Gate Opener
Remote Access Control
GSM Gate, Barrier, Shutter, Garage
Door and Door opener
Open gate or garage door with a FREE
call from your mobile phone!
Remote switching machines with a
FREE call from your mobile phone!
User Manual
Ver 1.5
RTU5025 Series
Date Issued: 2015-03-25
All rights reserved by
King Pigeon Comm.Co.,Limited.
www.GSM-Gate-Opener.com
Advertisement
Table of Contents
Related Manuals for King Pigeon RTU5025W
Summary of Contents for King Pigeon RTU5025W
- Page 1 Open gate or garage door with a FREE call from your mobile phone! Remote switching machines with a FREE call from your mobile phone! GPRS/3G Gate Opener Remote Access Control User Manual Ver 1.5 RTU5025 Series Date Issued: 2015-03-25 All rights reserved by King Pigeon Comm.Co.,Limited. www.GSM-Gate-Opener.com...
-
Page 2: Table Of Contents
We recommend that the advice of a registered electrician be sought before any Installation work commences. King Pigeon Communication.Co.,Limited. its employees and distributors, accept no liability for any loss or damage including consequential damage due to reliance on any material contained in this handbook. -
Page 3: Product Details
Supporting 3V SIM Card 50 Ω SMA Antenna interface Antenna Temperature range -20~+60 ° C Humidity range Relative humidity 90% Backup battery 3.7V/900mAH Exterior dimension W130mm*D74mm*H27mm Net Weight 260 g _________________________________________________________________________________________ Page 3 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 4: Standard Packing List And Model Tabel
1.4. Standard Packing List Order Table: Gate Opener * 1 RTU5025: GSM 850/900/1800/1900MHz Antenna * 1 RTU5025W: 2G: GSM900/1800MHz, AC/DC Power adaptor *1, 3G WCDMA : 900/2100MHz UMTS ; User Manual & PC Software CD x1 RTU5025C: 2G: GSM850/900/1800/1900MHz, ... -
Page 5: Diagram
12V DC + output,connect to siren’s Positive wire. Siren GND, connect to siren’s Negative wire. Connect to PC for configuration and reading the historical data. Connect to GSM/3G antenna. _________________________________________________________________________________________ Page 5 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 6: Typical Wiring Connection
Connect the water level sensor to DIN2 for level detection, and siren for alarm sound,the pump switched ON/OFF by phone call. Pump’s power gain from the grid/electrocity. _________________________________________________________________________________________ Page 6 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 7: Setting By Pc Software
Import profile: Import .xls profile, this can use for a number of RTU5025 with similar settings. Export profile: Export the parameter settings as .xls format to the PC,under the /configuration folder. _________________________________________________________________________________________ Page 7 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 8: Authorized Number List Managerment
Export .csv: Export the historical data (.csv format) to the PC,under the /configuration folder. Deleta all: Click this button will deleta/earse all of the historical data on the RTU5025 (Caution to use!) _________________________________________________________________________________________ Page 8 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 9: Setting/Operating By Sms Commands
SMS Commands, or add the country code before the telephone number or check the input is in ENGLISH INPUT METHOD and CAPS LOCK. 10. The SMS commands that you will certainly use in the RTU5025 are the following: _________________________________________________________________________________________ Page 9 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 10: Change Password
SMS with the numbers list(10 numbers on each SMS). 6.2.3 Delete the Authorized Number( or you can overwrite this postion with another number). pwdAserial number## E.g.: 1234A002## to delete the 2 authorized number. _________________________________________________________________________________________ Page 10 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 11: Relay Control Parameters
Return SMS: Relay ON (or the SMS confirmation content which you modified before) pwdDD Return SMS: Relay OFF(or the SMS confirmation content which you modified before) pwdGOTclose time# The relay close timer according to the before setting 6.3.3: _________________________________________________________________________________________ Page 11 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 12: Digital Input Parameters
10mins after the last call in from the authorized numbers. (10mins default,users can modify the time period by SMS command: pwdDxxx# xxx=000~999, unit:minute xxx=000: RTU5025 will always disarm untill arm by SMS command. _________________________________________________________________________________________ Page 12 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 13: Self-Check Auto Report/Inquiry Status/Historical Data/Imei Code And Firmware Version
This operation will reset the password to default 1234 only, other parameters reset must be reset by PC software. 6.5.7 Device ID RTU5025 will create an ID according to the SIM Card number(the last of 8 digits). _________________________________________________________________________________________ Page 13 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 14: Data Function
5.6.5 Data upload to CMS interval time: pwdGONxxxx# xxxx=0000~9999, (unit:minute) xxxx=0000, data function always on,RTU5025 can receive and send data over GRPS/UMTS/HSDPA. xxxx=9999, default,disable data upload function. _________________________________________________________________________________________ Page 14 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103... -
Page 15: Important Information
Operating Instructions. In no event shall the manufacturer be liable for any alarm system altered by purchasers. The End! Any questions please help to contact us feel free. _________________________________________________________________________________________ Page 15 of 15 King Pigeon Communication Co.,Limited. Ver 1.5 File No.:RTU5025103...
