● DIY Tinker Tie Kit starts here:

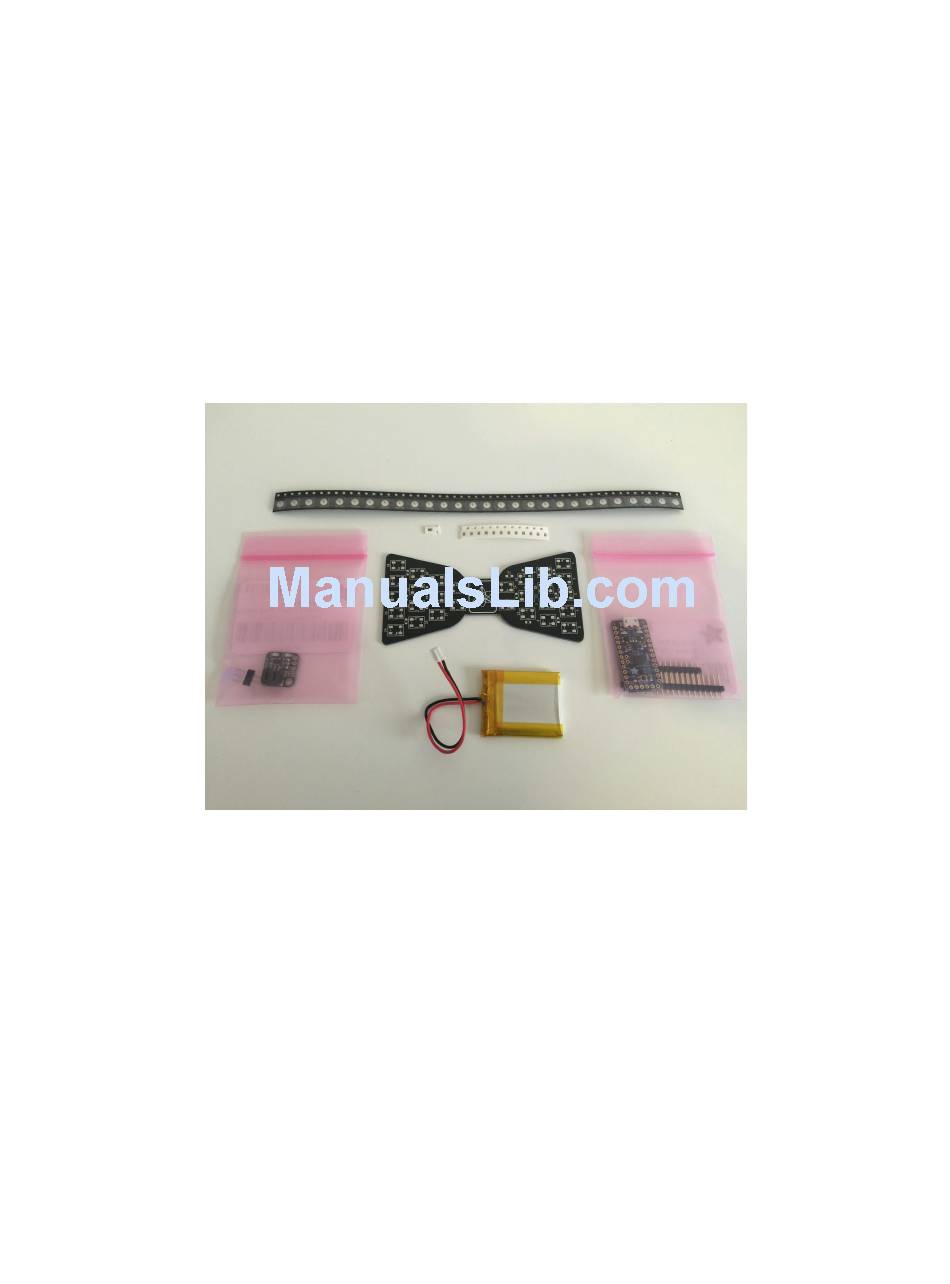

1. Open the box and inspect the components. There should be:
a. 28x RGB LEDs (SMD)
b. 12x Capacitors (SMD)
c. 1x Resistor (SMD)
d. 1x Tinker Tie PCB
e. 1x 500 mAh Battery
f. 1x Adafruit Pro Trinket (Optional)
g. 1x Adafruit Charging Backpack (Optional)















2. Begin by SMD (surface mount) soldering one side of the Tinker Tie at a time. If
using solder paste, it is ideal to apply solder paste to all contacts on one side of
the Tinker Tie, then place all components starting with the smaller capacitors and
resistors, then placing the larger LEDs.
a. The direction of the capacitors and resistor do not matter
b. When placing the LEDs, it is important to follow a pattern for their
direction. Each LED has a notch cut out of it. Each LED in a column needs
to have their notch pointing in the same direction. Look at the illustration
below for the pattern. The right­most column has it's LED notches all
facing the bottom right side, the next row to the left has all it's notches
facing the top left. Alternate this pattern every column to the end. It is
extremely crucial to do this, as it won't work any other way.

Tinker Tie Beta Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tinker Tie Beta and is the answer not in the manual?

Questions and answers

Summary of Contents for Arianen Tinker Tie Beta

  • Page 1 Tinker Tie Beta Assembly Instructions    ● DIY Tinker Tie Kit starts here:  1. Open the box and inspect the components. There should be:  a. 28x RGB LEDs (SMD)  b. 12x Capacitors (SMD)  c. 1x Resistor (SMD)  d. 1x Tinker Tie PCB  e. 1x 500 mAh Battery  f. 1x Adafruit Pro Trinket (Optional)  g. 1x Adafruit Charging Backpack (Optional)                                2. Begin by SMD (surface mount) soldering one side of the Tinker Tie at a time. If  using solder paste, it is ideal to apply solder paste to all contacts on one side of  the Tinker Tie, then place all components starting with the smaller capacitors and  resistors, then placing the larger LEDs.  a.
  • Page 2                                 ● Assembled Tinker Tie Kit starts here:  3. After soldering all the SMD components, it’s time to install the through hole  components.  a. Begin by taking out the header pins from both the Trinket and the charger  bags.  b. Snap off a section of three pins from the headers that came with the  Trinket     ...
  • Page 3 c. Next, Place the headers block with the longer pins into the first set of  holes, followed by the shorter one.  d. Place the Pro Trinket onto the pins such that the USB is facing out the  side of the Tinker Tie, and the first pin on that side corresponds with the  BAT+ pin on the Pro Trinket. Solder the pins on the Trinket side and the  Tinker Tie side. You can use a piece of tape to keep the Trinket from  falling off as you work. ...
  • Page 4 e. Next, place the Adafruit charging backpack onto the longer pins extruding  from the previously soldered Trinket. Make sure the battery connector port  is facing away from the side of the Tinker Tie, and that all three pins line  up. For faster charging, there are two tabs underneath the charger that  can be soldered together prior to being mounted that will speed up the  process.  f. Once you’re finished soldering, your Tinker Tie should look something like  the image below from the side. Notice that the Pro Trinket is mounted at  an angle, with the the side with no pins to solder resting on the Tinker Tie  board. This is the correct configuration. ...
  • Page 5   4. Now that you’ve assembled all the soldered components, the next to last step is  to attach and plug in the battery. Use an adhesive method of your choice (double  sided tape, glue, velcro, etc.) to mount the battery centered to the battery  rectangle on the side opposite the Pro Trinket. Make sure the wires are facing  towards the charger. The image below shows an Alpha Tinker Tie with the  battery mounted but not plugged in. Once your battery is attached, plug the  battery’s JST connector into the port on the charging board.                 ...
  • Page 6 5. Once the battery has been plugged in, you will see the lights on your Trinket  begin to flash. Because all Tinker Tie Trinkets we ship out will be pre­loaded with  our example sketch, they should begin to project a rainbow pattern a couple  seconds after the battery has been plugged in. If this doesn’t happen, press the  reset button on the back of the Trinket and wait for the device to restart.      6. You’re done! All that’s left to do is tie the bow tie strap around the center of the  Tinker Tie board (we like to also make sure it covers the battery wire) adjust it to  your neck size and wear it! The Tinker Tie can be charged over USB, as well as  programmed to your own custom patterns through the Arduino IDE. Enjoy your  new Tinker Tie and please don’t forget to send us any feedback you have of the  process so we can further improve it beyond Beta! ...
