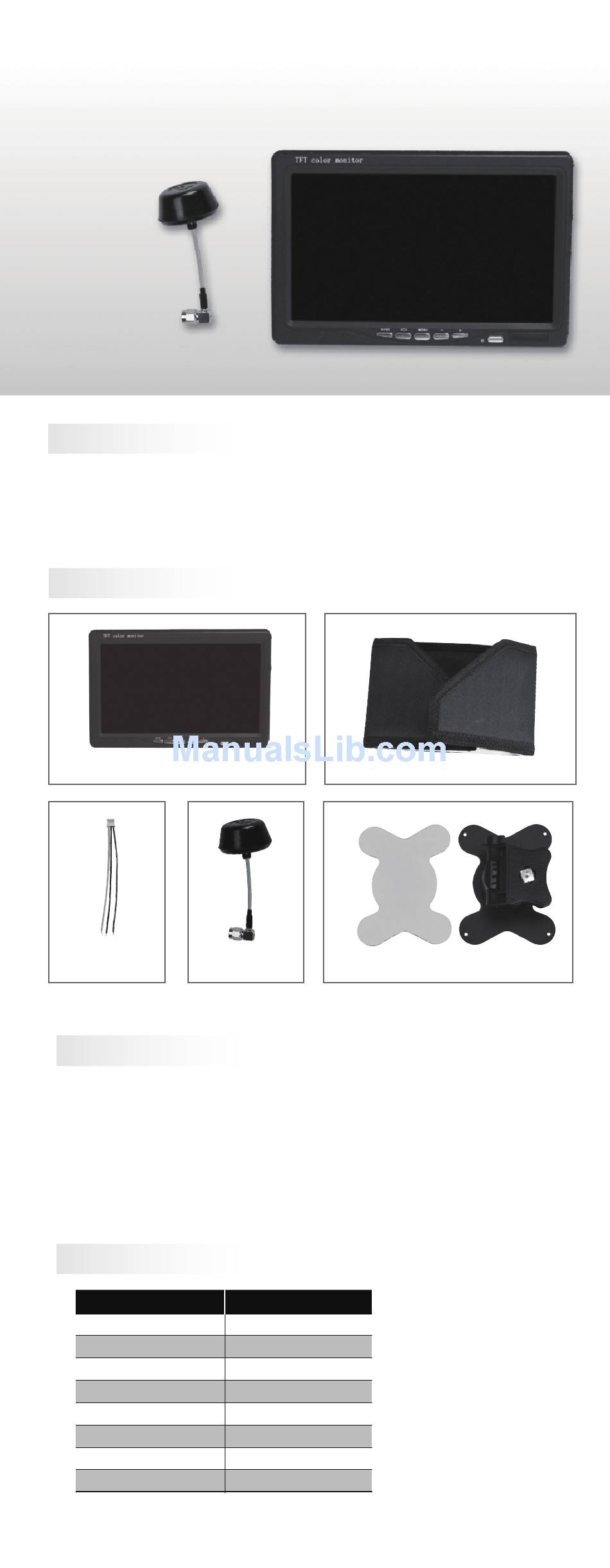

5.8GHz Receiver Monitor
user manual v1.0
Description
Thanks for purchasing our 5.8GHz receiver monitor. The 5.8GHz receiver monitor
is a multifunctional monitor.It integrate the receiver,display screen and the battery.
The rate capacity of single cell battery is 4200mAh. The built-in 8 channels
5.8GHz receiver, the frequency of each channels refer to Channel Table
section.The monitor also provide various charge methods.
Product Contents
Mainframe
AV out / AV in
Cable
Specification
Power supply: 5V
Frequency: 5.8GHz
Available Channel: 8CH
Antenna Connector: SMA
Screen size: 7"
Dimension: 170*114*23mm
Channel Table
Channel Number
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
Antenna
Frequency
5733 Mhz
5752 Mhz
5771 Mhz
5790 Mhz
5809 Mhz
5828 Mhz
5847 Mhz
5866 Mhz
Outdoor Screen Shroud
Mounting parts
Advertisement
Table of Contents
Summary of Contents for TTRobotix 8003
-
Page 1: Product Contents
5.8GHz Receiver Monitor user manual v1.0 Description Thanks for purchasing our 5.8GHz receiver monitor. The 5.8GHz receiver monitor is a multifunctional monitor.It integrate the receiver,display screen and the battery. The rate capacity of single cell battery is 4200mAh. The built-in 8 channels 5.8GHz receiver, the frequency of each channels refer to Channel Table section.The monitor also provide various charge methods. - Page 2 Operation diagram Display rotate Signal source switcher,switch the input between video-1 and video-2 Menu,open the setting panel of the screen display function Volume increase Screen on-off Volume decrease Channel switcher SMA connector,the receive-antenna must be connected with this connector The main power on-off,user show turn off this button to shut down the monitor The video-1 output and video-2 input,it uses for input the second source from the third-party and output the source of the built-in receiver.
