Summary of Contents for Alpha Data XRM2-CLINK-MINI-RX

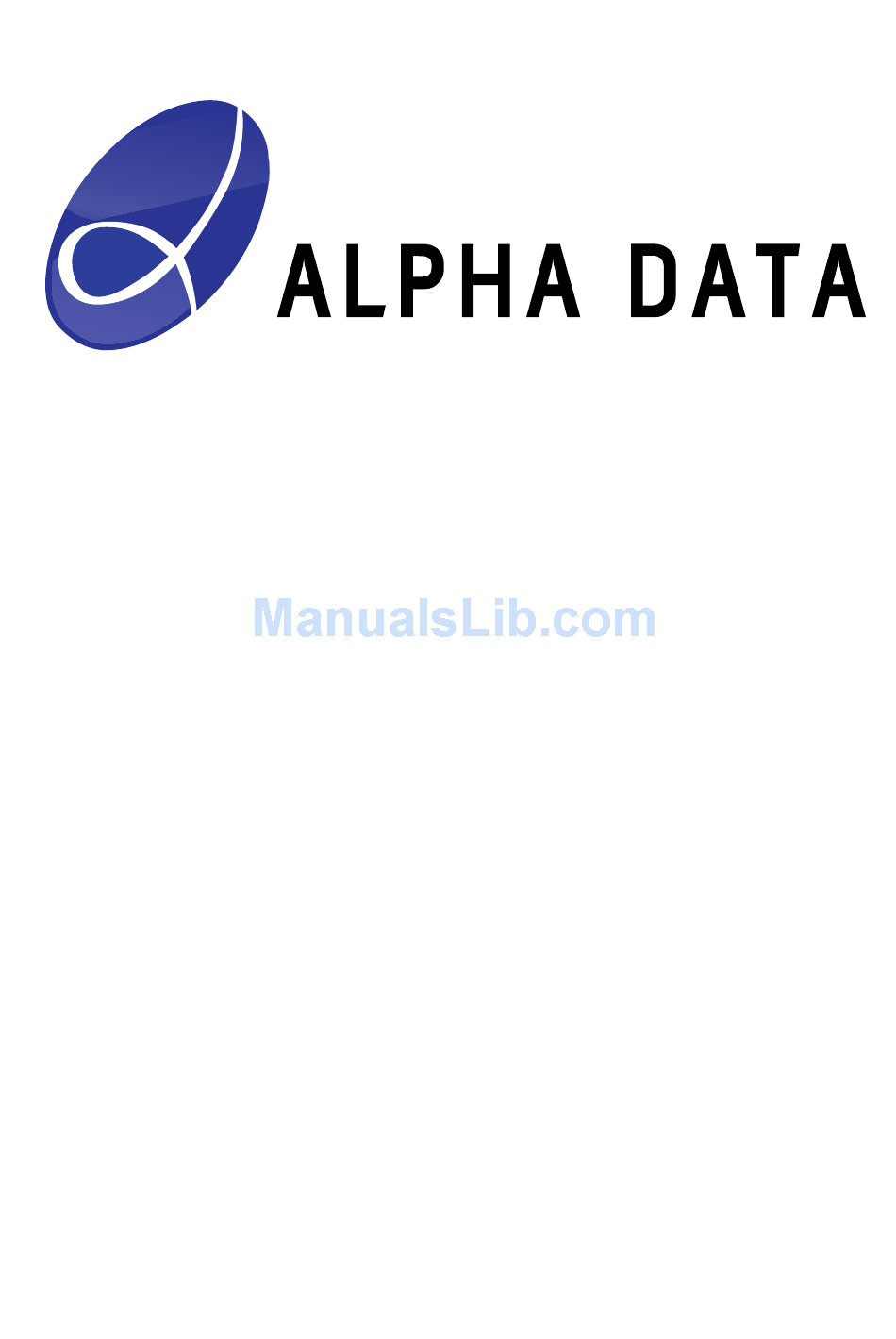

  • Page 1 XRM2-CLINK-MINI-RX User Manual Document Revision: 1.0 08/03/2018...
  • Page 2 XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 © 2018 Copyright Alpha Data Parallel Systems Ltd. All rights reserved. This publication is protected by Copyright Law, with all rights reserved. No part of this publication may be reproduced, in any shape or form, without prior written consent from Alpha Data Parallel Systems Ltd.

  • Page 3: Table Of Contents

    Aux Connectors ..........................9 Table 8 RX input ............................10 Table 9 TX output ............................10 List of Figures Figure 1 XRM2-CLINK-MINI-RX Block Diagram ....................1 Figure 2 XRM2-CLINK-MINI-RX Board Layout (front) ................... 11 Figure 3 XRM2-CLINK-MINI-RX Board Layout (back) ................... 11...
  • Page 4 XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 Page Intentionally left blank...

  • Page 5: Introduction

    Figure 1 : XRM2-CLINK-MINI-RX Block Diagram 2 Installation The XRM2-CLINK-MINI-RX is designed to plug in to the XRM front panel connector (SAMTEC QSH series) on an ADM-XRC card. The retaining screws should be tightened to secure the XRM. Note:This operation should not be performed while the host PMC, XMC or PCI(e) card is powered up.

  • Page 6: Specification

    3.3 Miscellaneous RS232 transceiver controlled from FPGA implementing 3-wire interface. Connection via 0.1" header. 4 Order Code XRM2-CLINK-MINI-RX. For further information please contact Alpha Data. 5 Related Documents Camera Link Specification v1.1 (Automated Imaging Association). 6 Design Examples A CameraLink frame grabber SDK is available for this card. More information about the CL3 SDK is available on ...
  • Page 7 XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 Direction (for Signal Name Samtec pin SDR pin (Con. 1) FPGA) x_p<2> x_n<2> x_p<3> x_n<3> x_clk<0> x_data<0> x_data<1> x_data<2> x_data<3> x_data<4> x_data<5> x_data<6> x_data<7> x_data<8> x_data<9> x_data<10> x_data<11> x_data<12> x_data<13> x_data<14> x_data<15> x_data<16> x_data<17>...

  • Page 8: Table

    XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 Direction (for Signal Name Samtec pin SDR pin (Con. 1) FPGA) cc_p<1> cc_n<1> cc_p<2> cc_n<2> cc_p<3> cc_n<3> cc_p<4> cc_n<4> ser_tfg_p ser_tfg_n ser_tc_p ser_tc_n Table 1 : Camera Link Connector 1 (Base/Medium/Full Configuration) Direction (for...

  • Page 9: Camera Link Connector 2 (Base Configuration)

    XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 Direction (for Signal Name Samtec pin SDR pin (Con. 2) FPGA) x_data<7> x_data<8> x_data<9> x_data<10> x_data<11> x_data<12> x_data<13> x_data<14> x_data<15> x_data<16> x_data<17> x_data<18> x_data<19> x_data<20> x_data<21> x_data<22> x_data<23> x_data<24> x_data<25> x_data<26> x_data<27> cc_p<1> cc_n<1>...

  • Page 10: Table

    XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 Signal Name Direction Samtec pin SDR pin (Con. 2) yclk_p yclk_n y_p<0> y_n<0> y_p<1> y_n<1> y_p<2> y_n<2> y_p<3> y_n<3> zclk_p zclk_n z_p<0> z_n<0> z_p<1> z_n<1> z_p<2> z_n<2> z_p<3> z_n<3> y_clk<0> y_data<0> y_data<1> y_data<2> y_data<3>...

  • Page 11: Camera Link Connector 2 (Medium/Full Configuration)

    XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 Signal Name Direction Samtec pin SDR pin (Con. 2) y_data<13> y_data<14> y_data<15> y_data<16> y_data<17> y_data<18> y_data<19> y_data<20> y_data<21> y_data<22> y_data<23> y_data<24> y_data<25> y_data<26> y_data<27> z_clk<0> z_data<0> z_data<1> z_data<2> z_data<3> z_data<4> z_data<5> z_data<6> z_data<7> z_data<8>...
  • Page 12 XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 Signal Name Direction Samtec pin SDR pin (Con. 2) z_data<19> z_data<20> z_data<21> z_data<22> z_data<23> z_data<24> z_data<25> z_data<26> z_data<27> Table 3 : Camera Link Connector 2 (Medium/Full Configuration) Page 8 Pinout ad-ug-0065_v1_0_XRM2-CLINK-MINI-RX_User_Manual.pdf...

  • Page 13: Control Pinout

    XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 7.2 Control Pinout Signal Name Samtec pin Notes Drive high to select Medium/Full and full_sel_mux; low for dual base Table 4 : Base/Medium/Full Select Control RS232 compatible output RS232 compatible input force Active high enable for RS232 interface...

  • Page 14: Table 8 : Rx Input

    XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 RX Inputs Units Input Voltage Range Input Threshold Low Input Threshold High Input Hysteresis Ω Input Resistance Table 8 : RX input TX Outputs Units Output Voltage Swing ±5 ±5.4 Output Resistance Ω Output Short-Circuit ±60...

  • Page 15: Board Layout

    XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 8 Board Layout Figure 2 : XRM2-CLINK-MINI-RX Board Layout (front) Figure 3 : XRM2-CLINK-MINI-RX Board Layout (back) Board Layout Page 11 ad-ug-0065_v1_0_XRM2-CLINK-MINI-RX_User_Manual.pdf...

  • Page 16: Table

    XRM2-CLINK-MINI-RX User Manual V1.0 - 08/03/2018 Revision History Date Revision Nature of Change Preliminary issue. February 2016 Deleted a duplicate table. March 2018 Address: 4 West Silvermills Lane, Address: 611 Corporate Circle Suite H Edinburgh, EH3 5BD, UK Golden, CO 80401...
