Electronics Line EL-4262 Manual

2-Way Siren Module
Module Sirène 2-Way
Modulo per sirena
radio bidirezionale
2-Weg Sirenenmodul
Model EL-4262
Modèle EL-4262
Modello EL-4262
Modell EL-4262

Introduction

The 2-Way Siren Module EL-4262 is an add-on module that is used to pair Electronics Line's range of 2-way Sirens
(EL4726 and EL4723) to the CommPact and Prime 1-way control panels.
Control Panel
Settings
For CommPact Panel (from
version 401.37 and higher):
1. Input event – Set PGM
Output as 'SIREN MODULE'
2. Output event – Set Zone #33
'LOOP TYPE' as Normally
Closed
For Prime Panel:
Input event – Set PGM Output as
'SIREN'

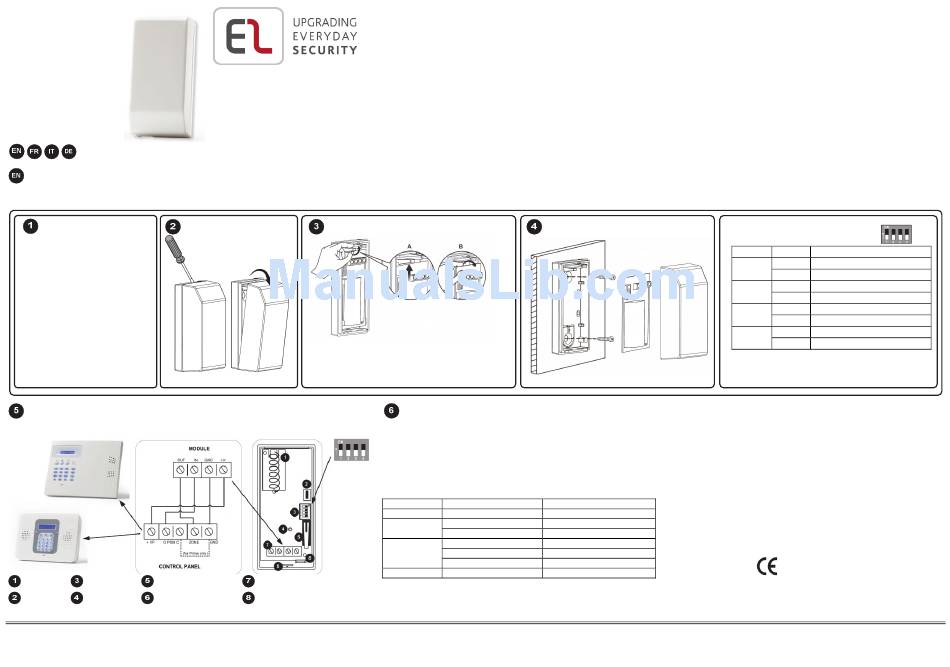

Terminal Wiring and PCB Layout

Antenna Dip Switch Tamper Switch
Test Button LED Indicator Wiring Knockout
Contacting Electronics Line
Electronics Line is committed to customer service and
product support. You can contact us through our website
(www.electronics-line.com) or at the following telephone
and fax numbers:
International Headquarters:
Electronics Line
14 Hachoma St., 75655, Rishon Le Zion, Israel
Tel: (+972-3) 963-7777, Fax: (+972-3) 961-6584
NOTE: for best performance of the product it is
recommended to install the module outside the control
panel.
Power-up the module. Once the Red and Green LEDs are flashing
consecutively, send a signal from the siren by inserting the batteries. If the LED
continues flashing Red and Green, press the tamper on the siren.. Once
registered, press the Test button. The Green LED begins to flash according to
the transmission quality (4 flashes – best, 1 flash – poor). Close the module
housing cover to complete registration.

LED Display

LED
Yellow
Green
Red
Red & Green
NOTE: A combination of troubles is indicated by a 3 second steady Red
Terminal Block
LED followed by a 3 second blinking Yellow LED.
PCB Release Tab
Electronics Line 3000 Ltd. Limited Warranty –
EL and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the
date of production. Because Seller does not install or connect the product and because the product may be used in conjunction with products not manufactured by the
Seller, Seller cannot guarantee the performance of the security system which uses this product. Sellers' obligation and liability under this warranty is expressly limited
to repairing and replacing, at Sellers option, within a reasonable time after the date of delivery, any product not meeting the specifications. Seller makes no other
warranty, expressed or implied, and makes no warranty of merchantability or of fitness for any particular purpose. In no case shall seller be liable for any
consequential or incidental damages for breach of this or any other warranty, expressed or implied, or upon any other basis of liability whatsoever.
Sellers obligation under this warranty shall not include any transportation charges or costs of installation or any liability for direct, indirect, or not be compromised or
circumvented; that the product will prevent any persona; injury or property loss by intruder, robbery, fire or otherwise; or that the product will in all cases provide
adequate warning or protection. Buyer understands that a properly installed and maintained alarm may only reduce the risk of intruder, robbery or fire without
warning, but is not insurance or a guarantee that such will not occur or that there will be no personal injury or property loss as a result.
Consequently seller shall have no liability for any personal injury, property damage or loss based on a claim that the product fails to give warning. However, if seller is
held liable, whether directly or indirectly, for any loss or damage arising from under this limited warranty or otherwise, regardless of cause or origin, sellers maximum
liability shall not exceed the purchase price of the product, which shall be complete and exclusive remedy against seller.
No employee or representative of Seller is authorized to change this warranty in any way or grant any other warranty.
CAUTION: This product should be tested at least once a week.
WARNING: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to local regulations.

Registering and Testing the 2-Way Siren

State Description
On Siren Low battery
On Normal Operation
Flashing Testing mode
On Communication trouble
Flashing Siren tamper activated
Intermittent flashing Module tamper activated
Flashing (consecutively) Registration/ deletion mode

DIP Switch Settings (default *)

Switch State Description
1 ON Tamper on
OFF * Tamper off
2 ON Low battery on
OFF * Low battery off
3 ON Communication trouble on
OFF * Communication trouble off
4 ON For Prime
OFF * For CommPact
NOTE: If switches (1-3) are set to ON the output of the
module will trigger the wired zone on the panel and
create an alarm according to the panel's configuration.

Deleting a Siren

Open the 2-Way Siren Module and press the Test button for
approximately 7 seconds until the Red and Green LEDs flash
consecutively. This confirms the deletion.

Technical Specifications

Frequency – 868 MHz, 433 MHz, Power – 12VDC
Operating Temperature – -10 – 55°C
RTTE Compliance Statement:
Hereby, Electronics Line 3000 Ltd. declares that this product is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.
The declaration of conformity may be consulted at www.electronics-line.com
