Summary of Contents for Supertech CS-164

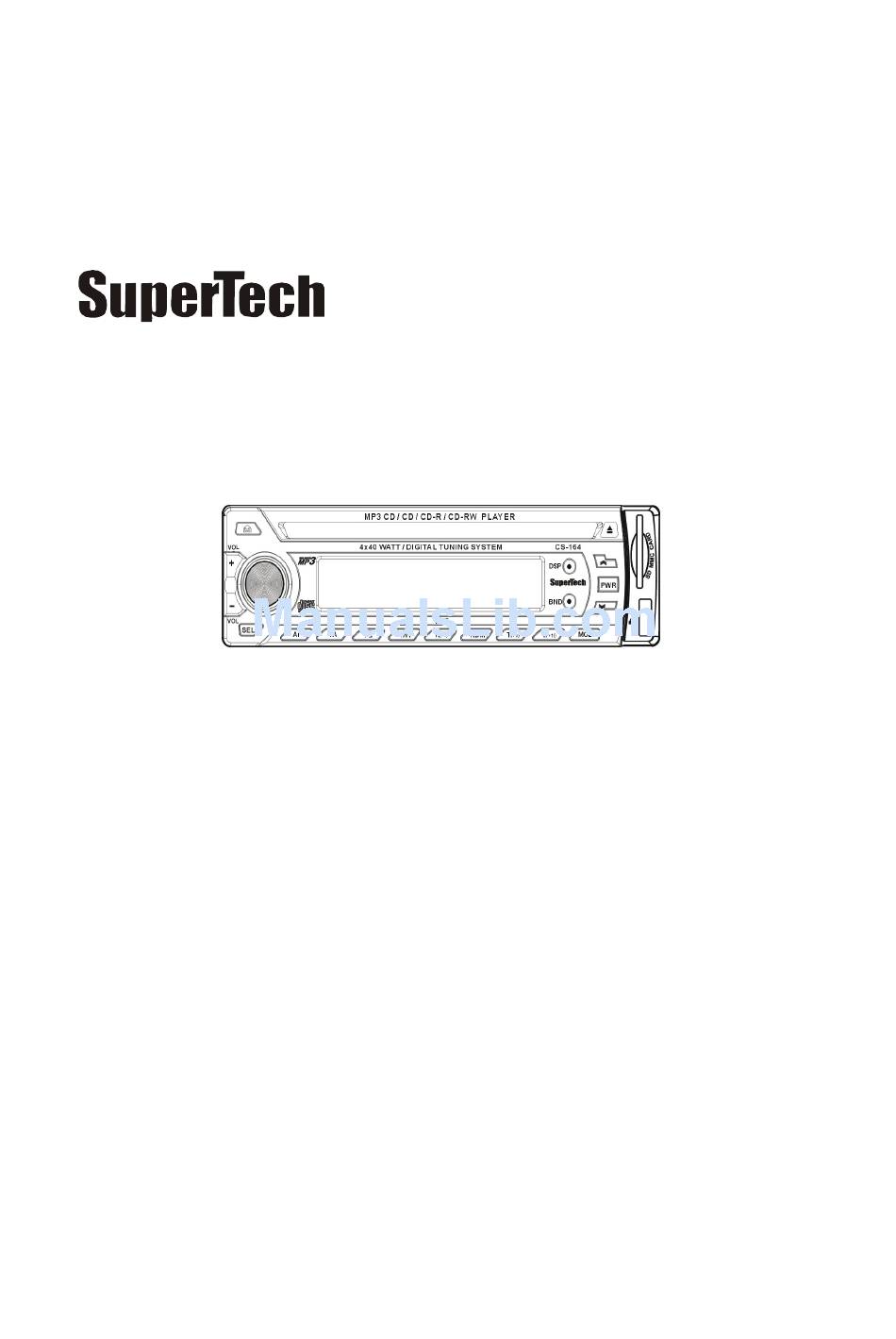

- Page 1 Instruction manual MODEL NO: CS-164 Car Stereo Compact Disc CD/CD-R/CD-RW/MP3 SD/MMC USB Media Player with FM/MW Stereo Radio...
-
Page 2: Function
Car Stereo Compact Disc CD/CD-R/CD-RW/MP3 SD/ MMC USB Media Player with MW/ FM Stereo Radio, Radio Data System FUNCTIONS The unit features a detachable front control panel, FM/MW stereo, CD/MP3 player the following features: Electronic Volume, Bass, Treble, Fader and Balance control Loudness control Manual FM Stereo/Mono selector... -
Page 3: Table Of Contents
Function......2 AF function.......13 Warnings......4 TA function.......13 Drawings......5 Tuning knob.....14 Location......6 DSP button......14 Installation Mode button....15 Precautions.....7 Band button.....15 Mounting example...7 Skip forward/backward..15 Detaching and attaching..8 LCD Display.....15 The front panel....8 Release button....15 ISO connector....9 CD slot......16 Maintenance....10 CD eject button....16 Operation Pause button....16 Power on/off....11... -
Page 4: Warnings
The exclamation point within the triangle is a warning sign alerting the user of important instructions accom- panying the product. The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of voltage in side the unit. The reduce the risk of electric shock, do not remove the cover. -
Page 6: Location

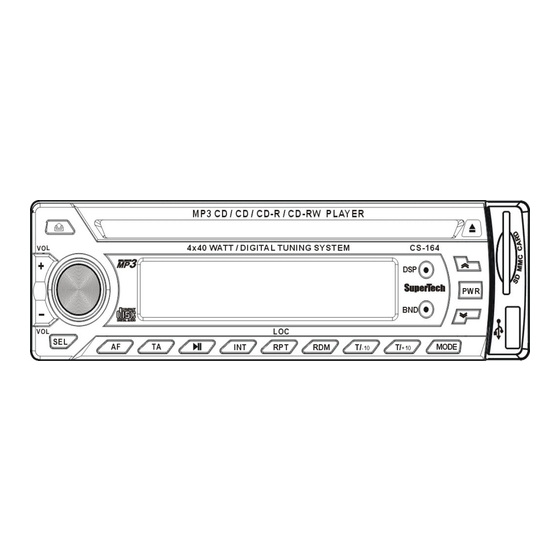

LOCATIONS OF CONTROLS 1. Power on/off button (PWR) 2. Select button (SEL) 3. Volume up/down button 4.AF (alternative frequencies) 5. TA Traffic announcement 6. Manual tuning knob 7. Display button (DSP) 8. Mode button MODE 9. Band button (BND) 10.Skip forward( ) 11.Skip backward ( ) 12.LCD display 13.Release button... -
Page 7: Installation Precautions
INSTALLATION PRECAUTIONS Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. -
Page 8: Detaching And Attaching
Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. DETACHING THE FRONT PANEL Before detaching the front panel, be sure topress the PWR button to turn off the unit first. Then press the button and detach the panel by pulling it towards you as illustrated. -
Page 9: Iso Connector
ISO CONNECTOR RCA Jack Line Out(Rear)-Gray :Red(right) :White(left) CONNECTOR A 4. MEMORY +12V 5. AUTO ANTENNA OUTPUT 7.+12V (TO IGNITION KEY) 8. GROUND The connector A no.7 must be connected by car ignition key in order to avoid that car battery be- comes weak when the car will be not used for long period. -
Page 10: Maintenance
Maintenance FUSE REPLACEMENT If the fuse blows, check the power connection and re- place the fuse. If the fuse blows again after the replace- ment, there may be an internal malfunction. In this case, consult your near est repairing center. Warning Use the specified amperage fuse for each lead. -
Page 11: Power On/Off
OPERATING INSTRUCTIONS 1.POWER ON/OFF (1) By pressing this key(1),the unit is switched on and off. This unit is turned on by pressing any key. Insert the front panel in the unit and push POWER button in order on the unit. Push PWR button newly in order to switch off the unit and Push RELEASE button(13) to release the front panel. -
Page 12: Loudness Control
DSP can be selected by VOL+ and VOL- key. POP M---ROCK M---CLASS M---FLAT M---DSP OFF 2) LOUDNESS CONTROL When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function. LOUD ON/OFF mode is selected by VOL+ and Vol- key. The bass and treble response will be boosted. -
Page 13: Stereo/Mono
5)STEREO/MONO When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function. When FM stations are weak and are disturbed, listening can be improved by selecting MONO. USING THE RDS FUNCTION What is RDS? The RDS (Radio Data System) is a digital information system developed by the EBU (European Broadcast Union). -
Page 14: Tuning Knob
If the volume level was under the threshold point, it will be raised to the threshold point. When TA station is received, TA segment is turned on in LCD display. 6. TUNING KNOB In radio mode, rotate the manual-tuning knob to select station you desired. -
Page 15: Mode Button
8. MODE BUTTON (MODE) By pressing this key, user can select RADIO mode or CD/ MP3/SD/MMC/USB PLAYER mode. 9. BAND BUTTON(BND) Each band is toggled cyclically by pressing this key FM1-FM2 -FM3-AM1-AM2. 10. 11.SKIP FORWARD( ) / SKIP BACKWARD ( ) CD/MP3/SD/MMC/USB PALYER MODE When press short, they are operated as TRACK UP/DOWN mode. -
Page 16: Cd Slot
4. CD SLOT 15. CD EJECT BUTTON Press the EJECT button (15) to remove the CD. 16. PAUSE BUTTON During PLAY mode, press PAUSE button (16) to PAUSE . Press it again to resume play. 17. INTRO BUTTON(Preview all Tracks) When this button (17) is pressed, INT indication is displayed and the first several seconds of each track of the disc are played. -
Page 17: Reset
22. RESET Reset button(22) is placed on the housing. The reset button is to be activated for the following: Initial installation of the unit when all wiring is completed. All the function button do not operated. Error symbol on the display. -
Page 18: Specifications
SPECIFICATIONS FM TUNER Frequency Range 87.5-108.0MHz Usable Sensitivity 2 V at s/n 30 dB Intermediate Frequency 10.7MHz S/N Ratio >50dB Image Rejection Ratio at 106KHz >45dB MW TUNER Frequency Range 520-1620KHz Usable Sensitivity 40 dB at S/N 20dB Intermediate Frequency 455KHz S/N Ratio >50dB...
