Rosslare PS-14 Installation Instructions

PS-14

POWER SUPPLY

INSTALLATION INSTRUCTIONS

INTRODUCTION and KEY FEATURES
The PS-14 is a power supply that serves as a spare part for the AC-
215; it replaces the existing power supply and provides power to
the AC-215 board, readers, and electric locks, as well as battery
charging for power backup.
The PS-14 does not require programming. It comes with a battery
charger (up to 7Ah), Tamper Output, and two separated power
supplies.
The PS-14 power supply converts a 16VAC input from the voltage
transformer to a 12 VDC power limited output (see specification)
with an integrated battery charger.
INSTALLATION PROCEDURE
The power supply should be installed in accordance with article
760 of the National Electrical Code NFPA 70, as well as applicable
Local Codes.
Note: Circuit breaker must be close to the power supply and must be
accessible.
1. Mount the Power Supply.
2. Connect AC power (16VAC) to the PS-14 power supply
input. The power supply output rated 12VDC and a
maximum of 0.5A.
3. Connect the grounding to the ground terminal.
Make sure to secure the screw tightly.
4. Connect the ACU power input to the power terminal
marked [12VDC (+) and 0.5A (-)].
5. Backup battery is optional. When battery is not used, loss of
AC results in the loss of output voltage. When using a
backup battery, it must be a UL certified "lead acid" or "gel"
type. Connect the battery terminal to power terminal
marked [VBAT(+) and 12VDC (-)].
(Battery leads are included.)
WIRING
Use 18 AWG or larger for all power connections.
Ensure that the power-limited circuit is wired separately from the
non-power limited wiring (16 VAC, Battery).
MAINTENANCE
For proper operation, the unit should be tested at least once a
year as described below:
Output voltage test:
Check DC output for proper voltage level under normal load
conditions.
Battery test:
Check specified voltage, at both battery terminal and board
terminals marked [VBAT(+) (-)] under normal load conditions,
verify that the battery is fully charged, and ensure that there is no
break in the battery connection wires.
Note: Maximum charging current under discharge is 1.2A.
Note: Battery life expectancy is five years .However, it is recommended to
change batteries after four years, or before, if required.
Dispose of used batteries according to manufacturer's instructions.
POWER SUPPLY SPECIFICATIONS
Input Voltage
16V AC / 2.5A
Backup Battery Charger
12VDC lead acid battery up to 7Ah
Output Voltage 1
12V DC / 0.5A
Output Voltage 2
12V DC / 1.5A
ELECTRICAL SPECIFICATIONS
Battery Backup
Built in charger for sealed, UL certified 12VDC lead acid battery
up to 7Ah
Caution: Risk of explosion, when battery is replaced by a wrong battery type.
Visual Indicators
DC output red LED2 indicator – low voltage
AC input green LED1 indicator – main power
BAT charger red LED3 indicator – backup battery low voltage
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:
32°F to 120°F (0°C to 49°C)
Operating Humidity:
0 to 90% (Non-Condensing)
MECHANICAL SPECIFICATIONS
Dimensions:
Height: 110 mm
Width: 65 mm
Depth: 83 mm
Transformer
AC Transformer - 120/220V AC/16V AC 2.5A (40VA) Class 2 (not
included with PS-14)
Tamper Output (open collector) – indicates faulty power

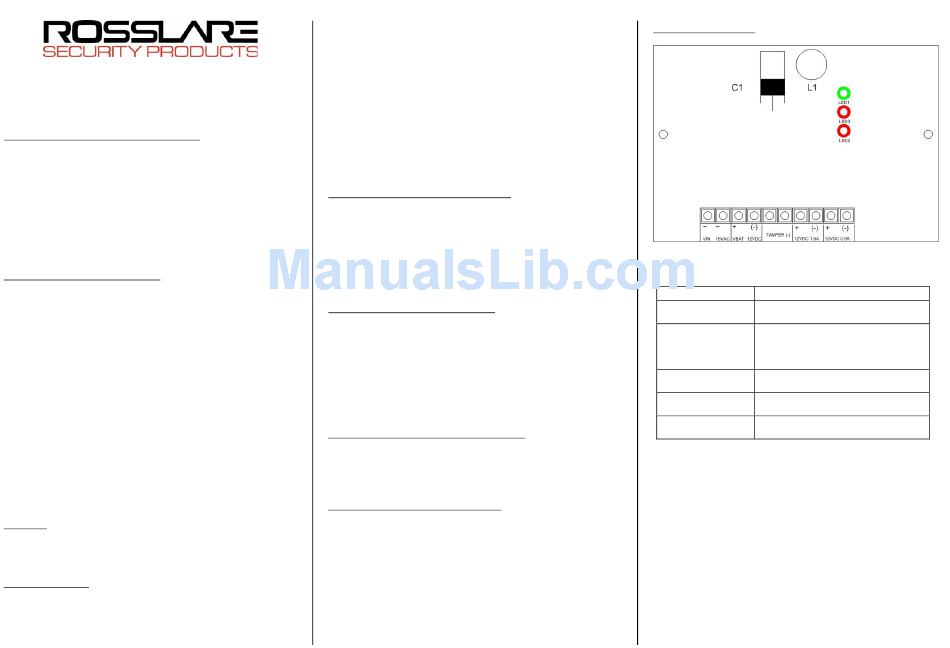

WIRING DIAGRAM
The following table describes the terminal blocks in the wiring
diagram:
Terminal Block Description
VIN 16VAC Connects to a transformer that
converts 220VAC to 16VAC.
VBAT 12VDC Connects to a 12V battery. The
battery is recharged from this card,
and is used as backup if the 16VAC
is not operating.
TAMPER (-) Open collector tamper out
indication.
12VDC 1.5A Power supply output, rated 12VDC
and a maximum of 1.5A.
12VDC 0.5A Power supply output, rated 12VDC
and a maximum of 0.5A.
