Ringder RC-113M User Manual

D R
R
RINGDER
RINGDER

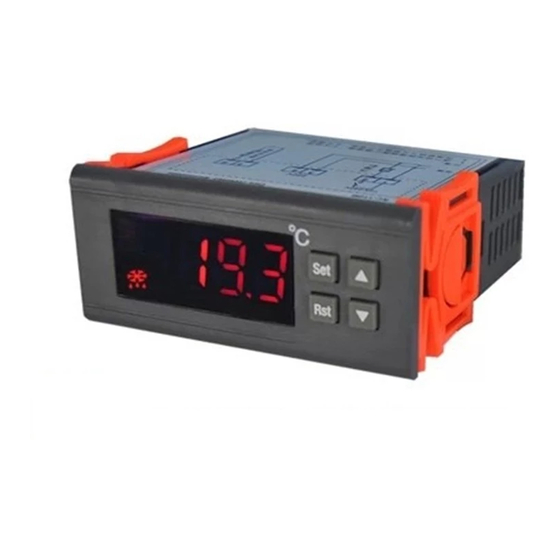

PID Temperature
Controller for Heating
RC-113M
User Manual
WEB: WWW.RINGDER.NET

Product Introduction

Product Introduction
This model is specially designed for elaborate heating
system, which adopt high accuracy temperature sensor,
PID control, minimum temperature inertia, very high
control accuracy(0.1C within normal temperature
period).
RC-113M PID temperature controller is widely applied to
various equipments and places that need to control
temperature accurately, such as incubator, Heating
equipment in the laboratory etc.
Top Runner in Temperature Measuring and Controlling Industry
Xuzhou Ringder Electrical Equipment Co., Ltd.
E-mail:xzringder@outlook.com
Tel: 86-516-66656756 /87764448 FAX: 86-516-87769006
Website: http://www.ringder.net/indexen.asp;
http://ringder.en.alibaba.com/
Address: No. 385, Zhongshan North Road,Gulou District,Xuzhou City,Jiangsu Province, China.
Technique S pecification
Anycontrol basic technique specification list
220VAC±10% 50HZ
Power supply
110VAC±10% 60HZ(optional)
≤
1. 5W
Rated power
≤ 5A/220V/50HZ/ 1500W; 110V/60HZ/750W;
Load capacity
≤10A/220V/50HZ/2000W; 110V/60HZ/1000W(optional).
℃/ Ω
NTC, 25 50K
Sensor type
IP65
Protection class
Work or storage -10~60℃,RH＜90% no condensation
Temp. range
-40~110℃
Environment Comply with environmental standards
Wire length
Communication: 1Km,sensor:100m
Function and Parameter
Function Setting Range Default
Code
F01
-10～Set temp. -10
Set Low Limit
F02
Set temp.～100 100
Set High Limit
F03 -7～7 0.0
Calibration
1.1 Temperature measurement
1.1.1 Temperature calibration
When there is some difference between the measuring
temperature and the real temperature, the difference can be
calibrated by menu F3, and calibration method should follow
the below formula:F3=real temperature-measuring
temperature. Other functions will execute according to the
calibrated temperature value.
1.1.2 Sampling period
The sampling period of this model is 1 second fixedly, and other
sampling period can be customized.
1.2 Temperature control
Temperature controlling parameters: ST, F01,F02.
ST: is stop temperature that can be adjusted by SET key directly.
F01: is the low limit of setting temp.
F02: is the high limit of setting temp.
These two parameters is used to limit the setting temp range in
order to avoid misoperation.
F01≤ST≤F02
1.2.1Heating status description
The controller can PID adjust the power of the heater, and make
the temperature constant around the setting temp. During
25~42℃, the accuracy can be 0.1℃.

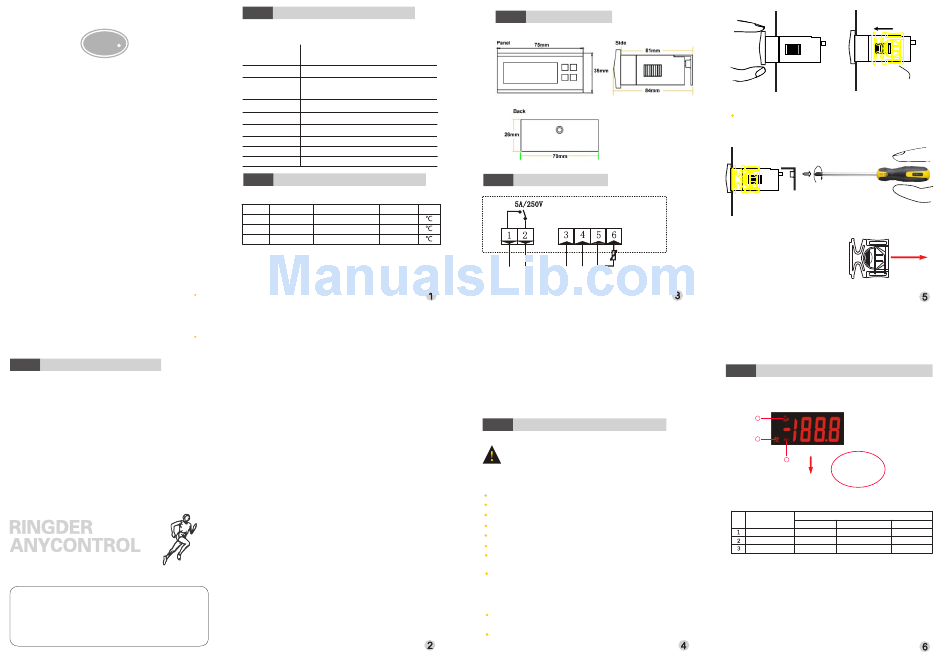

Product Size
：

Wiring Diagram

Unit
220V/50HZ
Load Power Sensor
Connect the wires strictly according to the diagram, the voltage
must within 220VAC±10%.
The current of the load must: inductive load or filament lamp≤
10% of the current on the wiring diagram; resistive load≤60% of
the current on the wiring diagram.

Assembly and Installation

2.1 Assembly
Warning:
The controller must be connected by trained electricians
according to the user manual strictly, and avoid installing in the
below environments:
Relative humidity> 90% ,have condensation
The places that temperature<-10℃ or>60℃；
The places that have inflammables and explosives；
Strong vibration or struck
Exposed to the continuous water mist spraying；
Exposed to the dust；
Exposure to corrosive and pollution gas (for example：the gas,
smoke or salt fog that contain sulfur or ammonia；
Wireless electromagnetic interference or strong magnetic
fields(near to transmitting antenna or switch board room)；
2.2 Please install the controller according to the following
Cut out a hole at the installing postion:71*29mm
Detach the slide fasteners, and put the controller into the hole.
（1st step，Figure2.a)；
Install the faterners；
（2nd step，Figure2.b)；
Figure2.b
Figure2. a
After connecting the wire, install the waterproof tailgate
（3rd step，Figure2.c)；
Figure2.c
How to disassemble the controller from the hole?
Firstly disassemble the
tailgate, then press the
position（Figure2.d）
sliding backwards to
Figure2 .d
disassemble the controler；
User Interface & Button Function
3.1 Display Area
1
2
3
Please
refer to
Working Status
No.
Meaning
Display Not Display Flash
/
Alarm Non alarm status Alarm status
Heat Equipment Work status Stop status
Set Indicator Set status Non set status
/
/
