Teleview TSP104 User Manual

Stream generator / 8vsb/qam b/ofdm/isdb-t capture
Hide thumbs

Advertisement

Quick Links

Download this manual

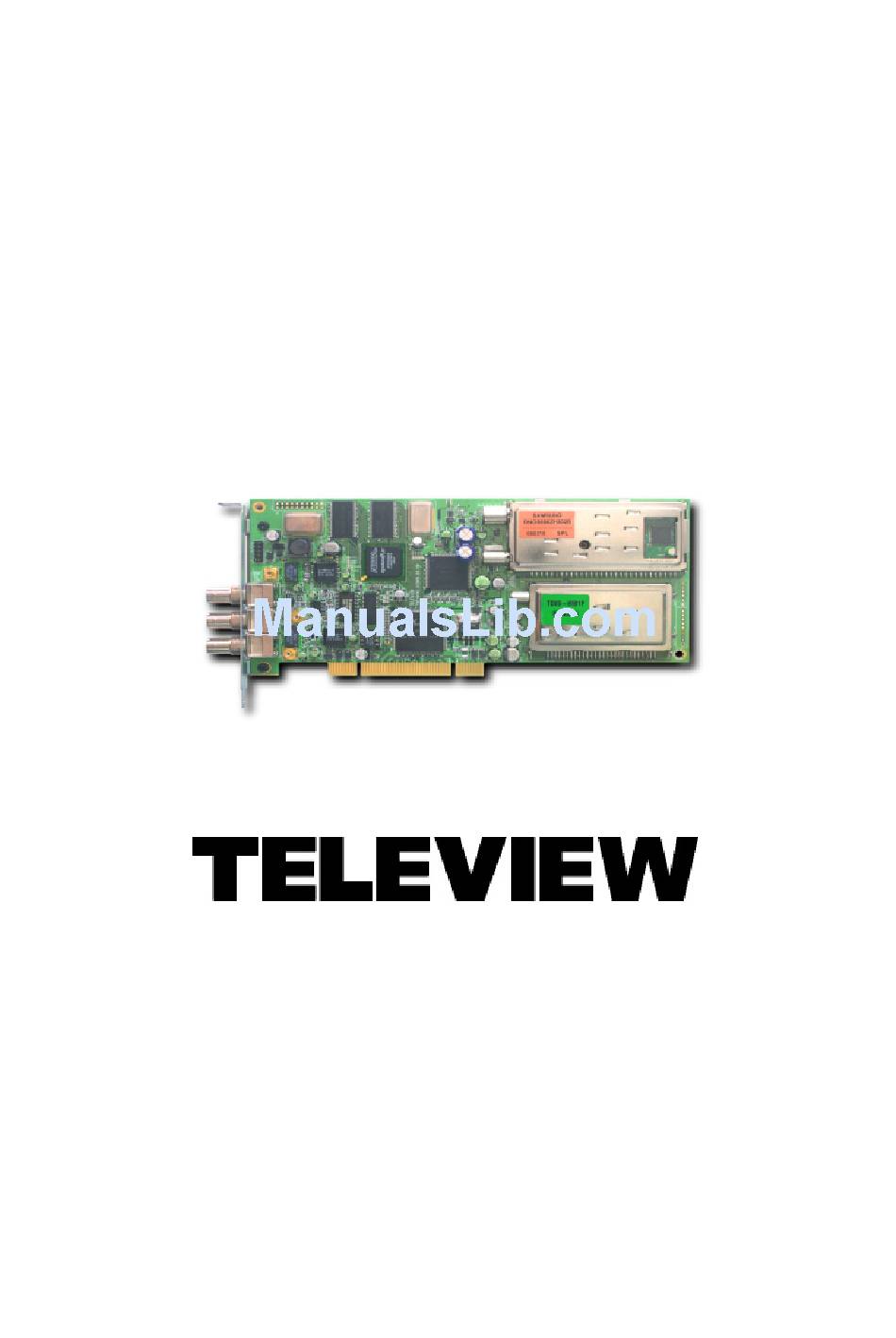

TSP104
STREAM GENERATOR/
8VSB/QAM -B/OFDM/ISDB-T CAPTURE
USER'S MANUAL
www.teleview.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TSP104 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teleview TSP104

  • Page 1 TSP104 STREAM GENERATOR/ 8VSB/QAM -B/OFDM/ISDB-T CAPTURE USER’S MANUAL www.teleview.com...

  • Page 2: Table Of Contents

    Table of Contents 1. Overview… ..… … … … … … … … … … … … … … … … … … … … 1 2. System Contents… … .… … … … … … … … … … … … … … … .. 1 3.

  • Page 3: Overview

    TSP104 User Manual ------------------------------- 1. Overview This document explains how to install one of TSP104 board on a Windows XP/2000 based PC system and how to use the control program “TPG0104.EXE” 2. System Contents You should have the following items.

  • Page 4: Basic Requirement

    9. Close the case and Turn on the computer 5. Driver Installation(on XP) 1. When you start up a system after TSP104 hardware installation, TSP104 is recognized by Windows system, and the following message will appear. Select Install from a list … and click Next.
  • Page 5 TSP104 User Manual ------------------------------- 2. Select Search for the best… and type or browse “D:\Driver”(Assume that D: is CD- ROM driver), click Next. 3. Click Continue Anyway. Revision on January, 2009 Page3...
  • Page 6 TSP104 User Manual ------------------------------- 4. After couple of seconds, you will see this message. Click Finish. Revision on January, 2009 Page4...

  • Page 7: Application Software Installation

    TSP104 User Manual ------------------------------- 6. Application Software Installation 1. Execute “D:\Install\Setup.exe” by double clicking it. Click OK. 2. Click the Next button to proceed. 3. Click the Next button to proceed. Click the Browser button to change the destination folder.
  • Page 8 TSP104 User Manual ------------------------------- 4. Click the Next to proceed. 5. Installation is done. Revision on January, 2009 Page6...

  • Page 9: Operating

    TSP104 User Manual ------------------------------- 7. Operating TPG0###.EXE is a GUI control program. If one wants to use console-based application, refer the SDK’ s HLD/LLD demo source. PLAYING FILES Select a file to play. Start playback. TS stream will be output through DVB-ASI and SMPTE-310M output port with the specified playrate.
  • Page 10 TSP104 User Manual ------------------------------- - If there are no files at PLAY LIST, the current selected stream file at FILE LIST will be played. - One can add stream files at PLAY LIST with or remove stream files from PLAY LIST with If there are stream files at PLAY LIST, the stream files will be played one by one.
  • Page 11 TSP104 User Manual ------------------------------- If “USE THE FIXED… ” is checked and if there are some stream files at PLAY LIST, the re-calculated play rate for each stream to be played will be set. If it is not checked, then the play rate at beginning of playing will be fixed.
  • Page 12 TSP104 User Manual ------------------------------- Refer VLC(version 0.8.6b) streaming manual from http://www.videolan.org. All functions depends VLC and the known problems will be patched as release versions. To use IP STREAMING normally, refer the “[IP STREAMING (EXPERIMENTAL)] To do network streaming:” at ADJUST DEMODLATOR.
  • Page 13 TSP104 User Manual ------------------------------- [IP STREAMING (EXPERIMENTAL)] To do network streaming: Set INPUT SOURCE as IP/SEND(or FILE) and click PLAY button. If IP/SEND can’ t be selected or there are some errors, refer to the IP OPTION. To receive stream from network, set INPUT SOURCE as IP/RECV and click PLAY button.
