USER GUIDE
BODILINK
HEAD SUPPORT
®
& MANUAL
COMFORTCOMPANY.COM
UM-BODILINK-HEAD-SUPPORT REV0218

Advertisement

loading

Summary of Contents for Comfort Company BodiLink E0955

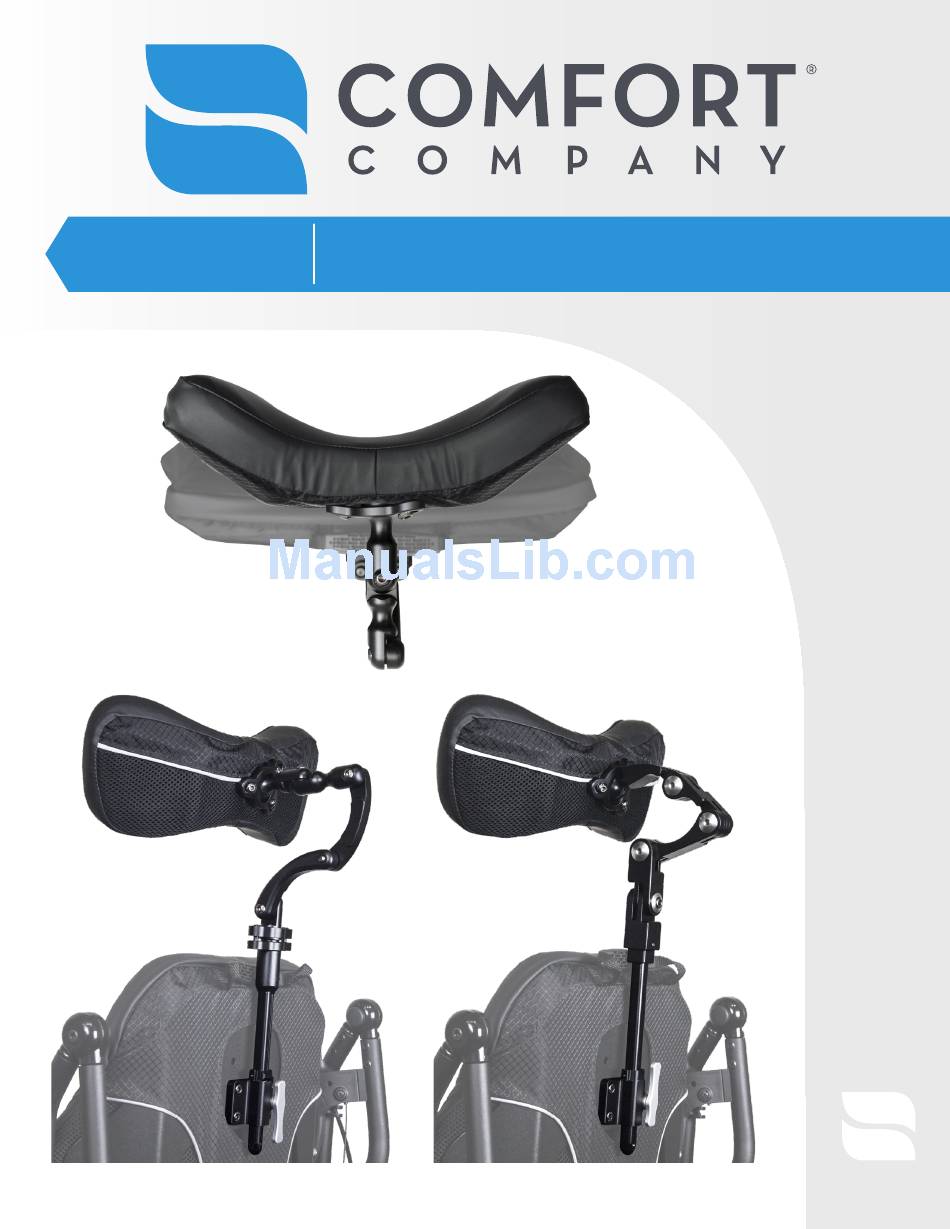

  • Page 1 USER GUIDE BODILINK HEAD SUPPORT ® & MANUAL COMFORTCOMPANY.COM UM-BODILINK-HEAD-SUPPORT REV0218...
  • Page 2: Contact Information

    Before using, make sure that you are properly trained to operate the equipment for its application. Failure to do so could lead to discomfort, injury or damages. NOTE: “We,” “Us” and “Our” refers to Comfort Company. “You” refers to the product purchaser or user. INTRODUCTION www.comfortcompany.com...
  • Page 3: Safety Guidelines

    Antibacterial or Disinfectant Spray Comfort Company cannot be held responsible for damages or injury due to misuse Wipe with Water Only of the product or failure to follow instructions provided in this manual. Please contact us if you require further assistance in understanding cautions, warnings or instructions for using or maintaining your product.
  • Page 4 SAFETY GUIDELINES ® BODILINK HEAD SUPPORT SAFETY DETAILS PROHIBITED! Never use the equipment to maneuver a WARNING! Ensure that the product does not interfere with chair or anything that it is attached to. It is never to be any other chair components. Interference could jeopardize used as a handle, lift, guide or support for anything other effectiveness and user safety as well as cause damage.
  • Page 5: Parts Detail

    PARTS DETAIL BodiLink ® Head Support (HS) Hardware and Pads GT Removable Hardware PT Removable Hardware - with either 7” or 3” Hardware Stem Mid-line Hardware Lateral Hardware Mid-6 Hardware Mid-8 Hardware Lat-6 Hardware Lat-8 Hardware Max-8 Hardware Mounting Hardware Support Pads Posterior Mounting Anterior Mounting...
  • Page 6 INSTALLATION (POSTERIOR MOUNTING BLOCK) For Acta-Back ® , Acta-Back ® Deep, Acta-Back ® Contour, Acta-Back ® LTS, Acta-Embrace ® , Acta-Embrace ® LTS, & Visco Back ® If head support hardware stem is inserted in mounting block B, turn knob A counterclockwise to release it and set aside. Using 5mm hex key, loosen screws C to release washers D, spacer plate E, and double nuts F from mounting block B.
  • Page 7 INSTALLATION (ANTERIOR MOUNTING BLOCK) If head support hardware stem C is inserted in mounting block B, For back supports where threading from anterior turn knob A counterclockwise to release it and set aside. surface of the shell is necessary or preferred. Loosen button head screws D with 4mm hex key and remove along with washers E and spacer plate F from mounting block B.
  • Page 8 INSTALLATION (ACTA-RELIEF™) For Acta-Relief™ & Acta-Relief™ LTS using Compass ® Mounting Hardware. If Acta-Relief™ Head Support Bracket is already attached to shell, please skip to step 2. Align holes on back support shell G with head support bracket H and attach with fasteners and hex key provided. The bracket should be oriented with the curved edge of the side faces at the bottom.
  • Page 9 INSTALLATION (ACTA-RELIEF™ POWER) For Acta-Relief™ & Acta-Relief™ LTS using Compass ® Power Mount Hardware. If head support hardware stem C is inserted in mounting block B, turn knob A counterclockwise to release it and set aside. Using 5mm hex key, loosen screws D to release washers E, spacer plate F, and double nuts G from mounting block B. Note: Use of spacer plate F is optional and may affect clearance in certain recline situations.
  • Page 10 INSTALLATION (PERMOBIL A MOUNTING BLOCK) For Permobil Corpus Back Supports 23” - 28”H with ® Uni-Track System using Permobil A Mounting Block. If head support hardware stem C is inserted in mounting block B, turn knob A counterclockwise to release it and set aside. Using 5mm hex key, loosen but not remove screws D to create a gap between double nuts E and mounting block B.
  • Page 11 INSTALLATION (PERMOBIL B MOUNTING BLOCK) For Permobil Corpus Back Supports 20”H using ® Permobil B Mounting Block. If head support hardware stem is inserted in mounting block B, turn knob A counterclockwise to release it and set aside. Using 5mm hex key, loosen screws C to release washers D, and double nuts F from mounting bracket E. Move back support cover (not pictured) allowing access from both sides to head support holes on back support shell G.
  • Page 12 INSTALLATION (QUANTUM MOUNTING) For Quantum ® TRU-Comfort Back Supports on TRU-Balance Seating System using Quantum Mounting Block. If head support hardware stem is inserted in mounting block B, turn knob A counterclockwise to release it and set aside. Attach mounting plate C to back support G with socket head screws E and tighten using allen wrench.
  • Page 13 INSTALLATION (ADDING A LINK TO GT HARDWARE) BodiLink Head Support GT Lateral Hardware will ® CAUTION! Please consider that adding additional include an extra link and fasteners to use if needed links to the hardware may reduce the overall strength. to reach extreme positions.
  • Page 14 INSTALLATION (ADDING A LINK TO PT HARDWARE) BodiLink PT Hardware Extra 2”, 3”, and 4” Links. ® Taper inserts may be oriented so screws face either left or right. Remove screw A and safety washer B from taper insert C. Separate link D and ball link E. Align new link F with link D.
  • Page 15 INSTALLATION (TOOL-LESS WING LOCK) BodiLink PT Hardware Tool-Less Wing Lock. ® Taper inserts may be oriented so screws and wing locks face either left or right. Remove screw A and safety washer B from taper insert C in the joint you will be replacing with a wing lock. Remove threaded half of taper insert C and replace with threaded end from wing lock making sure the squares of...
  • Page 16 INSTALLATION (SUPPORT PAD) Instructions apply to both Basic and Premium pads with any style of hardware. Align ball link A and ball ring B with ball receiver C. Loosely engage screws D and safety washers E with ball receiver C to complete the assembly. Continue through page 20 for final adjustments.
  • Page 17 SET UP & ADJUSTMENTS (HARDWARE) All BodiLink® Head Support hardware styles have adjustment for height* and depth to be used in combination with pad positioning described on previous page. Some hardware styles also have lateral positioning features. For GT Hardware, see page 18. For PT hardware, see page 19. GT Hardware PT Hardware Mid-line Positioning Only...
  • Page 18 SET UP & ADJUSTMENTS (GT HARDWARE) Lateral Style GT Hardware (without additional link added) shown. Mid-line GT hardware will not have angle adjustment points. Adjustments to be made simultaneously with pad positioning adjustments. A = Angle/Lateral Offset D = Depth 14W x 5L pad shown H = Height Loosen all hardware adjustment point screws...
  • Page 19 SET UP & ADJUSTMENTS SET UP & ADJUSTMENTS (PT HARDWARE) Max-8 Style PT Hardware (with 7” stem) shown. Other PT hardware styles will not have angle or as many depth adjustment points. Adjustments to be made simultaneously with pad positioning adjustments. A = Angle/Lateral Offset Standard Loosen all hardware adjustment point screws allowing for full...
  • Page 20 FINISH Locking the height adjustment collar on GT and PT hardware. 3” Stem does not have a height adjustment collar. Finish setup by loosening set screw D in collar A. Slide collar A on hardware stem C to meet the top of mounting bracket B. Tighten set screw D in the collar with 2mm hex key until contact is made with the hardware stem.
  • Page 21 CLEANING Frequent heat drying and bleaching naturally cause fabric break down. Air drying and cleaning without bleach are recommended whenever possible to help extend the life of the cover. SURFACE CLEANING COMFORT-TEK FABRIC ONLY* Spray with common household or commercial antibacterial Wipe with damp, water-only cloth after disinfecting and let dry before use.
  • Page 22: Maintenance

    MAINTENANCE WARRANTY This product is covered by the Comfort Company Lifetime Guarantee. INSPECTION Inspect all head support components monthly. Check and tighten all fasteners and adjustment points. Inspect all materials for wear such as stretching, fraying, fractures, and bends. Some wear with regular use is expect- ed.
  • Page 23 THIS PAGE INTENTIONALLY LEFT BLANK CLEANING & MAINTENANCE...
  • Page 24 © 2018 Permobil Comfort Company®, BodiLink®, Compass®, Acta-Back®, Acta-Embrace®, Visco Back® and Radius Back® are registered trademarks of Comfort Company. Acta-Relief™, Comfort-Tek™, and Stretch-Air™ are trademarks of Comfort Company. Permobil ® is a registered trademark of Permobil, Inc. Quantum is a registered trademark of Pride Mobility Products Corporation.
