Thomas Research Products TCM-RF-REMOTE User Manual

1. Table of Contents
1. Table of Contents
2. Description
2.1 Specifications
2.2 Button Controls
3. TCM-RF-Remote and Module Syncing
4. TCM-RF-Remote and Module Un-Syncing
5. TCM-RF-Remote Button Controls
2. Description
TCM-RF-REMOTE 2.4 GHz RF handheld remote controls the on/off and brightness of the luminaire the
TCM-RF-D dimming module it is synced with. Each TCM-RF-REMOTE can support up to 4 groups, with
each group capable of controlling up to 20 TCM-RF-D dimming modules.
2.1 TCM-RF-REMOTE Specifications
• 2.4GHz
• Emission Power – 6db
• Powered by – (2) AAA Batteries
• Working Voltage – 3V
• Radio Frequency – 2400 – 2483.5MHz
• Modulation Mode – GFSK
• Standby Power Consumption – 5uA, Control distance 65-98 Ft. (20 - 30meters)
• Size – 4.33" x 2.12" x 0.79" (110mm x 54mm x 20mm)
• Low Battery Indicator – Red LED constant illumination

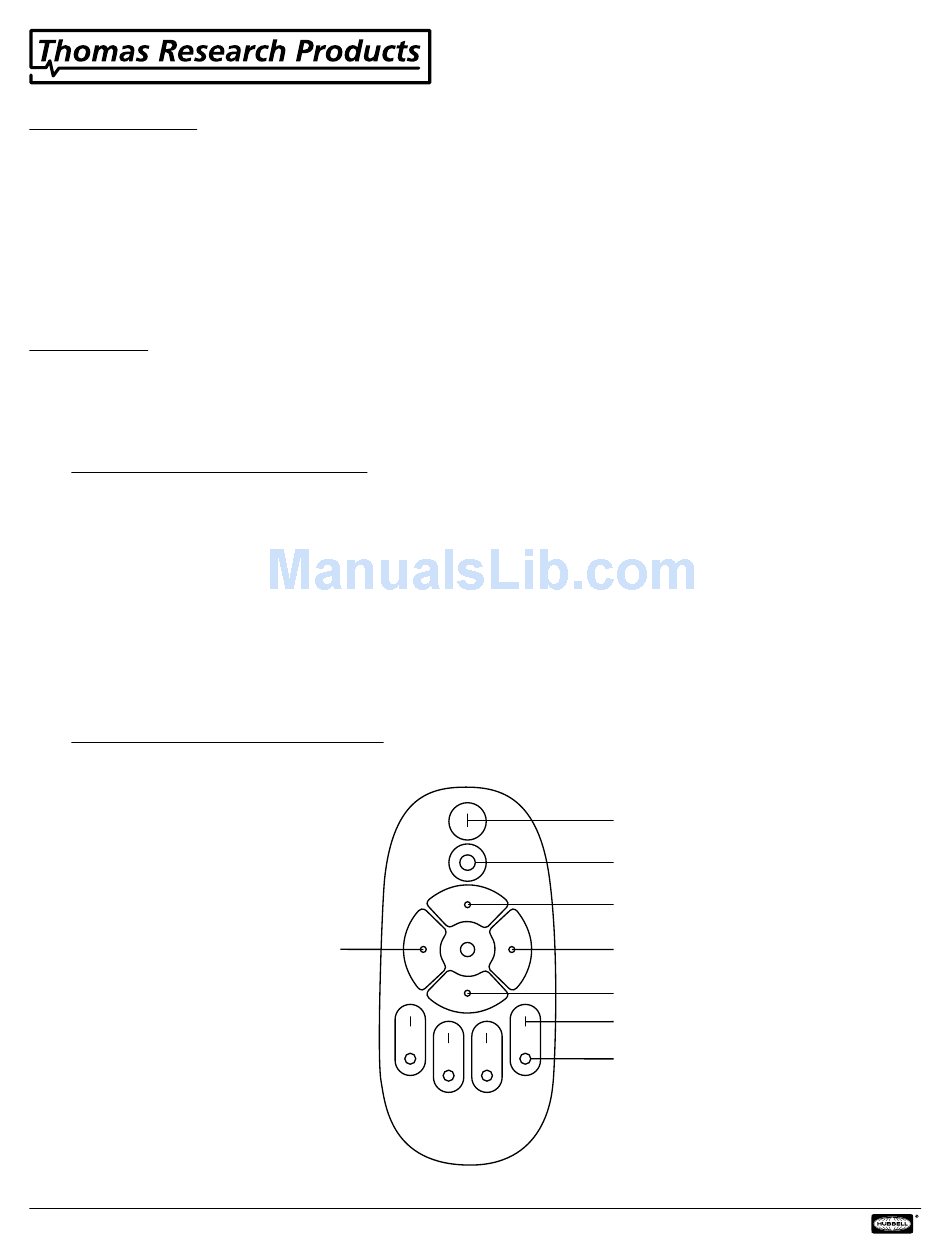

2.2 TCM-RF-REMOTE Button Controls
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
Brightness -
REMOTE CONTROL USER MANUAL
TCM-RF-REMOTE 2.4 GHz
Group All ON
Group All OFF
Brightness +
Brightness +
Brightness -
Group ON
Group OFF
