Topeak PanoBike TPB-CS01 User Manual

Speed & cadence sensor

Advertisement

Quick Links

PanoBike
Sync to PanoBike App and other Apps with Bluetooth® Smart (BLE 4.0) connection program.
Cadence Sensor
Sensing Point
SPECIFICATION
Tech: Bluetooth® Smart super low energy technology
Battery Lifetime (approx): 1800 hours
Battery: CR2032 x 1 pc (included)
Transmisson Range: <10 meter (33 ft)
Waterproof: IPX 7
Weight: 21g / 0.74 oz
Operating temperature: -10º C ~ 50º C (14º F~122º F)

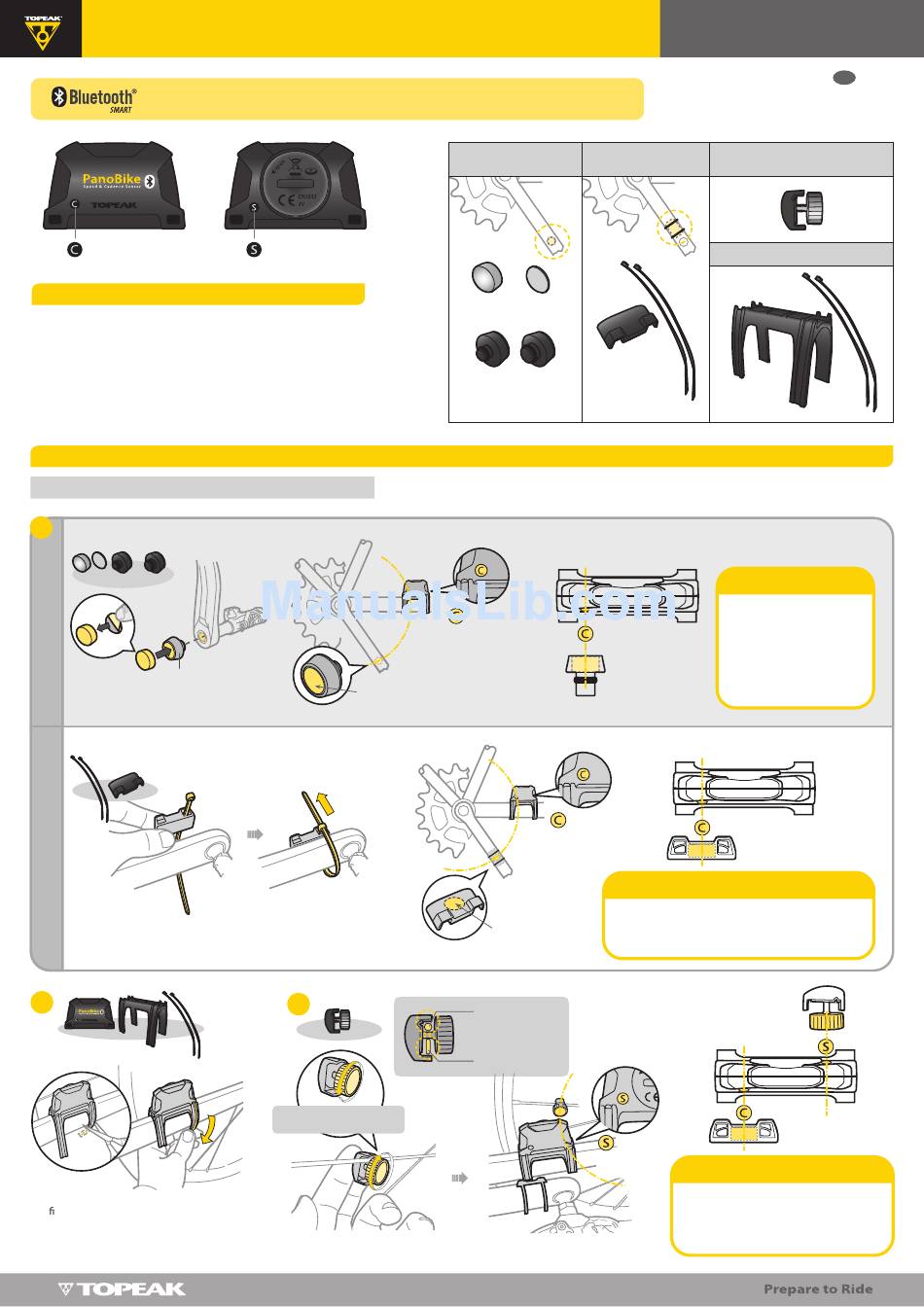

INSTALLATION
TIPS : Proper distance between Sensor and Magnet : < 30mm
1
O
Cadence Magnet Set (A)
P
T
6 mm 8 mm
I
O
N
A
(6 mm or 8 mm)
Preset suitable 6 mm or
8mm Cadence Magnet Set.
Cadence Magnet Set (B)
O
P
T
I
O
N
B
Install Cadence Magnet on left crankarm near
pedal as shown. Do not tighten zip ties
completely to allow magnet placement.
2
Pre- t Sensor and Rubber Bracket on left rear
chainstay (non-drive side) and trim excess rubber
from bracket. Insure the Topeak logo is facing up.
Install zip ties loosely to allow sensor placement.
Speed & Cadence Sensor
Speed Sensor
Sensing Point
(5 years with 1hr/day use)
Cadence
Magnet
3
Unscrew the wheel magnet
to install on spoke.
Tighten the Wheel Magnet onto spoke and align with sensing point on sensor.
Art no. : TPB-CS01
Cadence Magnet Set (A)
Cadence Magnet Set (B)
for pedal axle hexagon socket
for crankarm
Cadence
Sticker
Magnet
Cadence
Magnet
6mm
8mm
Cadence Magnet
Holder
Top View
Cadence Sensor
Sensing Point
Cadence Sensor
Sensing Point
Align Cadence Magnet with Cadence Sensor
Cadence
Sensing Point as shown to insure magnet
Magnet
does not interfere with Speed Sensor.
For Round Spokes
For Bladed Spokes
Speed Sensor
Sensing Point
User's Guide
Wheel Magnet Set
Rubber Bracket Set
Rubber
Zip Tie
Bracket
IMPORTANT NOTE
Align Cadence Magnet
with Cadence Sensor
Sensing Point as shown
to insure magnet does
not interfere with
Speed Sensor.
Top View
IMPORTANT NOTE
Top View
IMPORTANT NOTE
Align Wheel Magnet with Speed
Sensor Sensing Point as shown to
insure magnet does not interfere
with Cadence Sensor.
