MCD Elektronik USB hub 2.0 6-Port switchable Manual

Conline series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

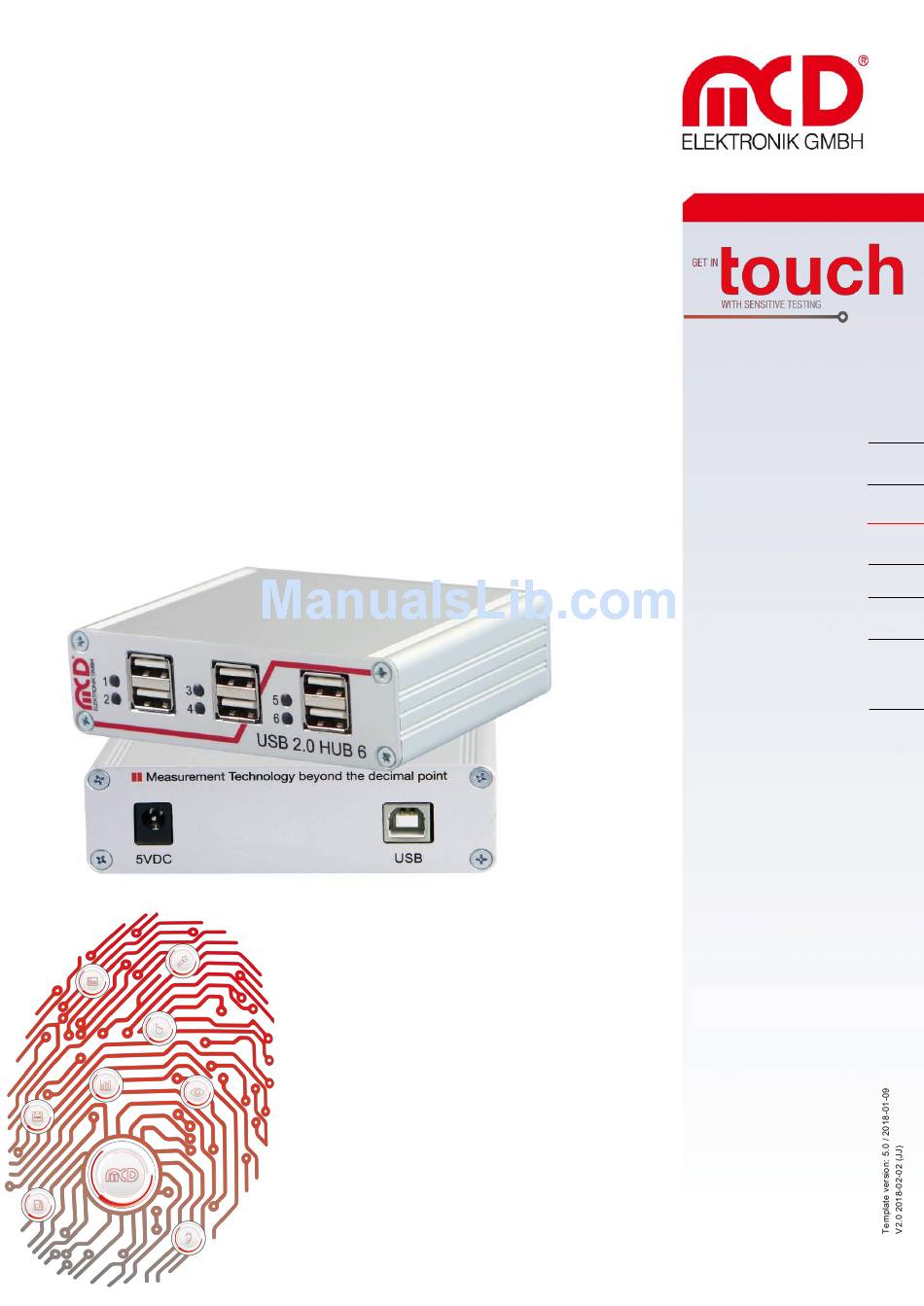

Manual
USB hub 2.0 6-Port
switchable
Softline
Modline
Conline
Boardline
Avidline
Pixline
Application
MCD Elektronik GmbH
Hoheneichstr. 52
75217 Birkenfeld
Tel.
+49 (0) 72 31/78 405-0
Fax
+49 (0) 72 31/78 405-10
info@mcd-elektronik.de
www.mcd-elektronik.com
HQ: Birkenfeld
Managing CEO: Bruno Hörter
Register Court Mannheim
HRB 505692

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB hub 2.0 6-Port switchable and is the answer not in the manual?

Questions and answers

Related Manuals for MCD Elektronik USB hub 2.0 6-Port switchable

Summary of Contents for MCD Elektronik USB hub 2.0 6-Port switchable

  • Page 1 Manual USB hub 2.0 6-Port Softline switchable Modline Conline Boardline Avidline Pixline Application MCD Elektronik GmbH Hoheneichstr. 52 75217 Birkenfeld Tel. +49 (0) 72 31/78 405-0 +49 (0) 72 31/78 405-10 info@mcd-elektronik.de www.mcd-elektronik.com HQ: Birkenfeld Managing CEO: Bruno Hörter Register Court Mannheim...

  • Page 2: Table Of Contents

    Elektronik GmbH USB hub 2.0 6-Port Manual Table of Contents GENERAL..................................3 1.1..................................3 PPLICATION 1.2..............................3 RODUCT CHARACTERISTICS BRIEF INTRODUCTION ..............................5 2.1........................... 5 SE OF HUB WITHOUT SOFTWARE 2.2............................5 SE OF HUB WITH SOFTWARE INSTALLATION MANUAL ..............................

  • Page 3: General

    Elektronik GmbH USB hub 2.0 6-Port Manual General The USB hub has six downstream ports, which can be switched on and off individually via USB. When switching off, the supply voltage (+5 V) and the data lines are separated via semiconductor switches. Control is carried out via the USB hub monitor (PC software).
  • Page 4 Elektronik GmbH USB hub 2.0 6-Port Manual  LED’s to display switched on ports.  Automatic detection and switching between bus-and self-powered.  USB-compliant numbering of hub and connected devices when connecting or disconnecting the AC adapter.  Automatic polarity correction of the connected power supply (No polarity reversal). ...

  • Page 5: Brief Introduction

    Elektronik GmbH USB hub 2.0 6-Port Manual 2. Brief introduction 2.1. Use of USB hub without software 1. Please connect your MCD USB hub with a USB cable type AB to your PC, where applicable you can connect an external power supply (5V ± 5% / 3.3 A max) USB-cable / Typ AB Connection of an external power...
  • Page 6 Elektronik GmbH USB hub 2.0 6-Port Manual 3. In order to switch the ports 1 to 4, you must restart the software. Please go to the MCD USBHubMonitor from the Start menu: 4. In the menu Setup-> Options, you can adjust the settings for your USB hub, please open it. 5.
  • Page 7 Elektronik GmbH USB hub 2.0 6-Port Manual 8. The MCD USBHubMonitor can also be remotely controlled by the MCD TestManagerCE. From the Windows® start menu (MCD -> USB hub -> TestManagerCE) you can open a sample application. After TestManagerCE has started please push the Start (Up) button. Then an example sequence is executed which drives the USB hub.

  • Page 8: Installation Manual

    Elektronik GmbH USB hub 2.0 6-Port Manual 3. Installation Manual 3.1. System requiremts  Operation system: Windows2000®, Windows XP®, Windows7®  Architecture: 32bit or 64bit  .Net Framework: starting at Version 3.5 3.2. Software and Driver installation To install the software for the MCD USB hub, the installer USBHubInstall.msi must be called up. Open Windows ®...

  • Page 9: Connecting Hardware

    Elektronik GmbH USB hub 2.0 6-Port Manual After finishing the installation, close the installer and proceed with the installation of the driver. 3.3. Connecting hardware Now connect the USB hub to a free USB port. The hub can operate solely on the USB host (bus powered), or in addition with a 5VDC power supply with at least 17W output power or output current of 3.3 A (self-powered).

  • Page 10: Install / Update Driver

    Elektronik GmbH USB hub 2.0 6-Port Manual USB-cable / Type AB Connection of an external power Power supply unit: 5V ±5% / max 3,3A supply is optional 3.4. Install / update driver The driver to be installed is located in the application folder: <installation path>\USBHubMonitor\USB Driver To install the latest driver, you can use the Windows®...

  • Page 11: Launching The Installed Software

    Elektronik GmbH USB hub 2.0 6-Port Manual 3.5. Launching the installed software The ports one to four are turned off after a reset, while the ports five and six are switched on (for keyboard, mouse, etc.). To enable the ports, launch the previously installed software from the Windows® start menu. Through the software, you can then access the USB hub: For more help, see the software documentation under Help ->...
